Uni-T MSO5000HD-CANXL Software option Mixed signal (MSO) 1 pc(s)
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Product type
Software option
- Oscilloscope features
Mixed signal (MSO)
Manufacturer's standards (no certificate)
- Interfaces
CAN
- Type
MSO5000HD-CANXL
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3757380 Uni-T MSO5000HD-CANXL Software option Mixed signal (MSO) 1 pc(s)
Description

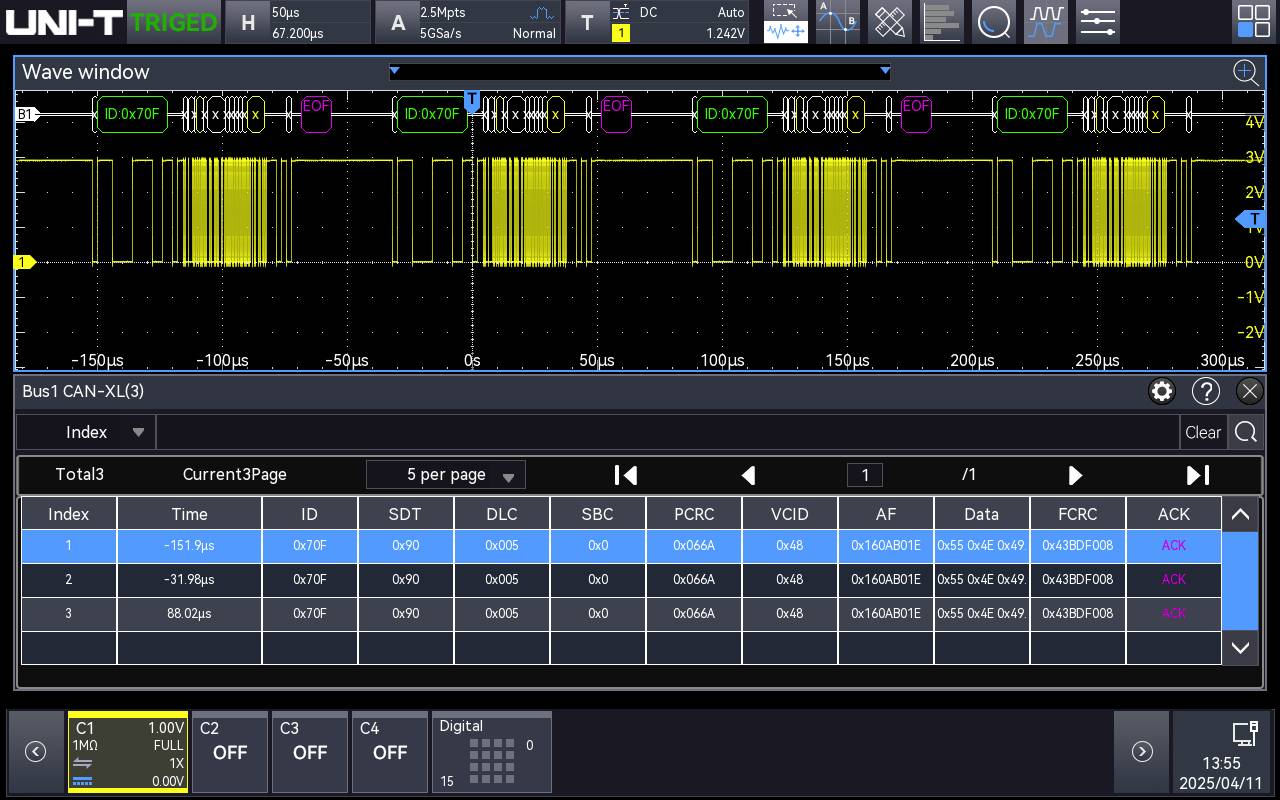

The MSO5000HD-CANXL extends your MSO5000HD series oscilloscope with triggering, decoding and searching functions for the CAN-XL protocol. CAN-XL closes the gap between CAN-FD and Ethernet – with payloads of up to 2,048 bytes and rates of up to 20 Mbit/s for next generation zonal vehicle architectures.
CAN-XL is used where a higher bandwidth is required for sensor fusion and ADAS (driver assistance systems), but a complete automotive Ethernet is not justified. This option provides trigger decode search functions for all CAN-XL traffic.
This text is machine translated.
CAN-XL is used where a higher bandwidth is required for sensor fusion and ADAS (driver assistance systems), but a complete automotive Ethernet is not justified. This option provides trigger decode search functions for all CAN-XL traffic.
This text is machine translated.
Scope of delivery
- License code x 1
