Uni-T MSO5000HD-SENT Software option Mixed signal (MSO) 1 pc(s)
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Product type
Software option
- Oscilloscope features
Mixed signal (MSO)
Manufacturer's standards (no certificate)
- Type
MSO5000HD-SENT
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3757379 Uni-T MSO5000HD-SENT Software option Mixed signal (MSO) 1 pc(s)
Description

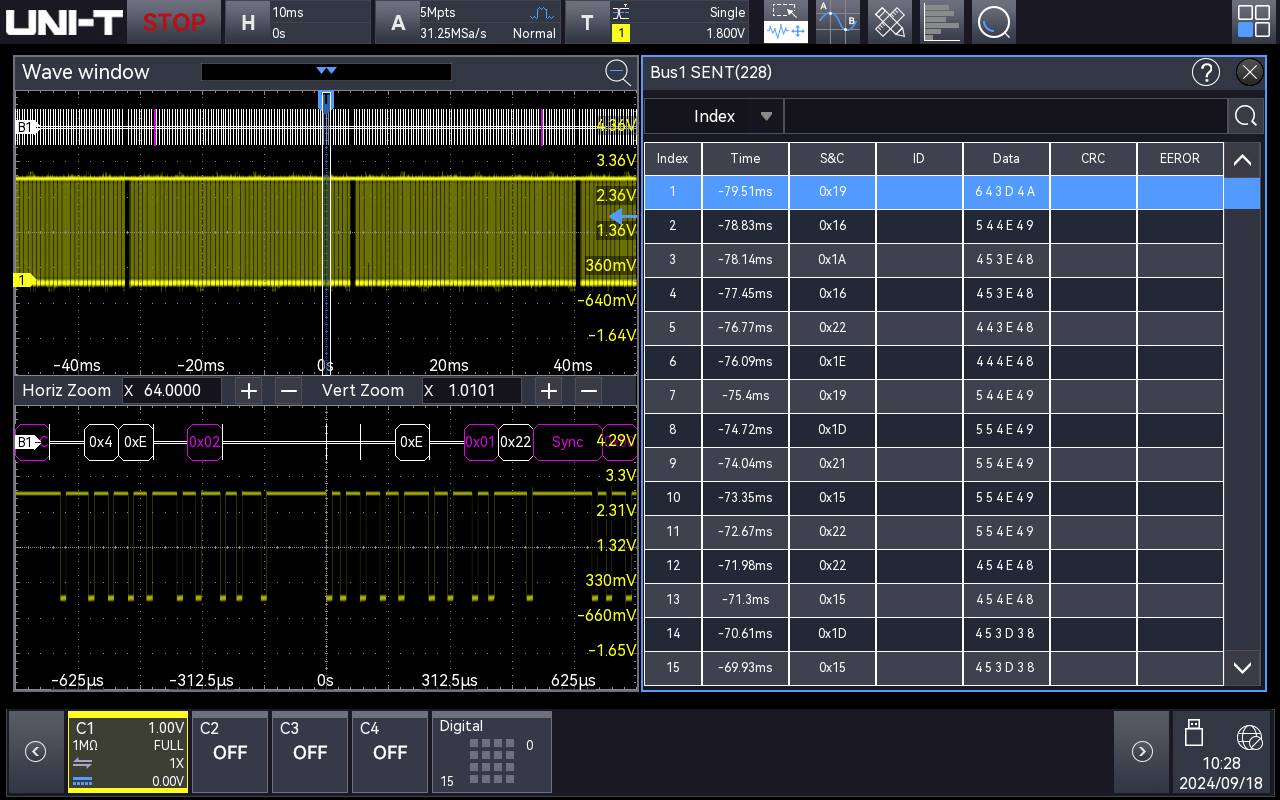

The option MSO3000HD-SENT extends your MSO3000HD series oscilloscope with triggering, decoding, and search functions for the Single Edge Nibble Transmission (SAE J2716) protocol. SENT is a point-to-point sensor interface used in the automotive industry for throttle, pressure, air flow and temperature sensors.
SENT transmits digital data over a single line and is insensitive to analog noise and ground offset. This decoding function allows you to read the sensor values directly on the screen of the oscilloscope.
This text is machine translated.
SENT transmits digital data over a single line and is insensitive to analog noise and ground offset. This decoding function allows you to read the sensor values directly on the screen of the oscilloscope.
This text is machine translated.
Scope of delivery
- License code x 1
