Name: Uni-T UTD2052CEX+ Digital 50 MHz 1 GS/s 64 KP Digital storage (DSO) 1 pc(s)
Brand: Uni-T
SKU: 3400004

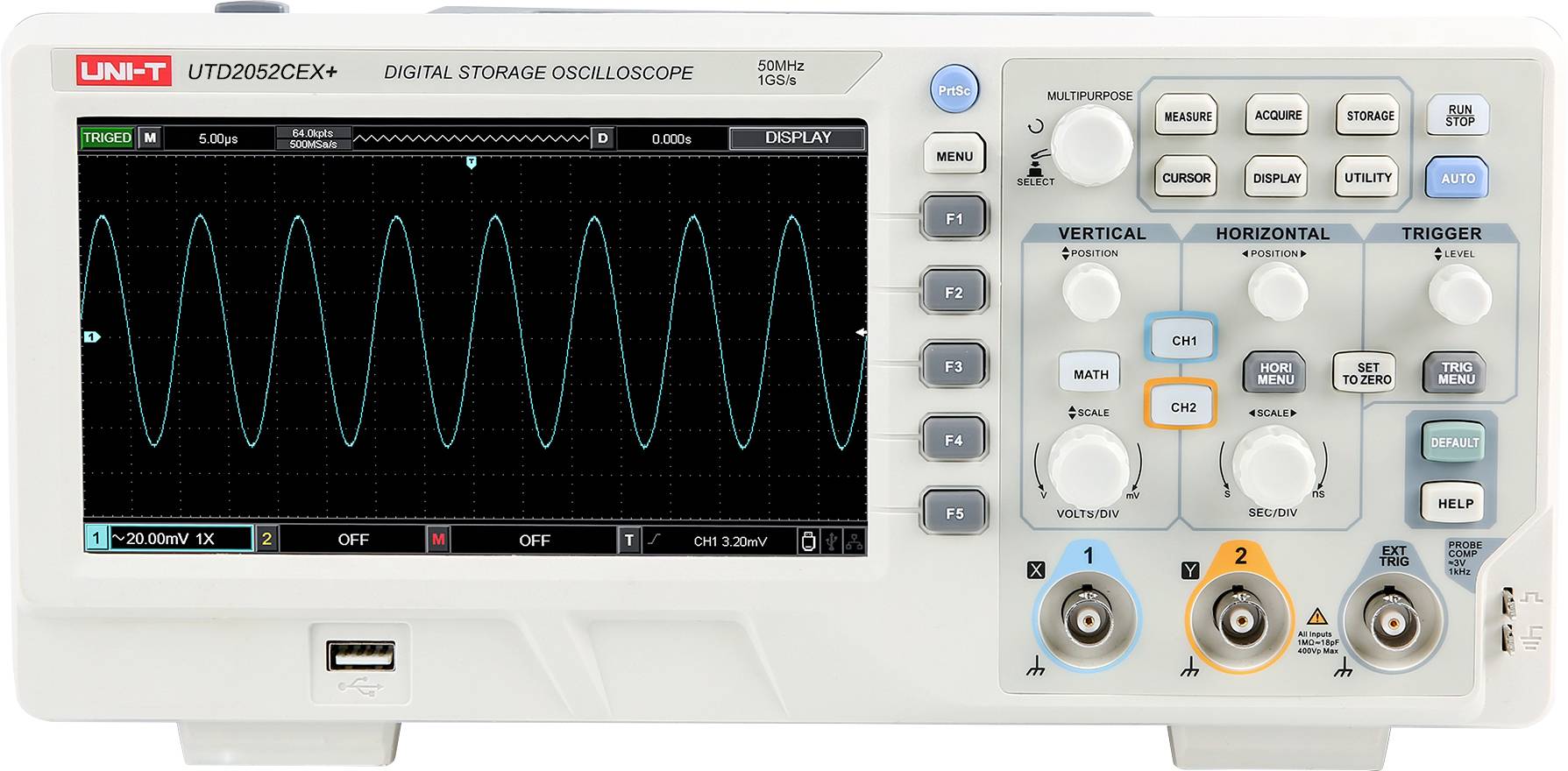

A digital storage oscilloscope with a waveform display on the screen and multiple adjustment knobs and ports.

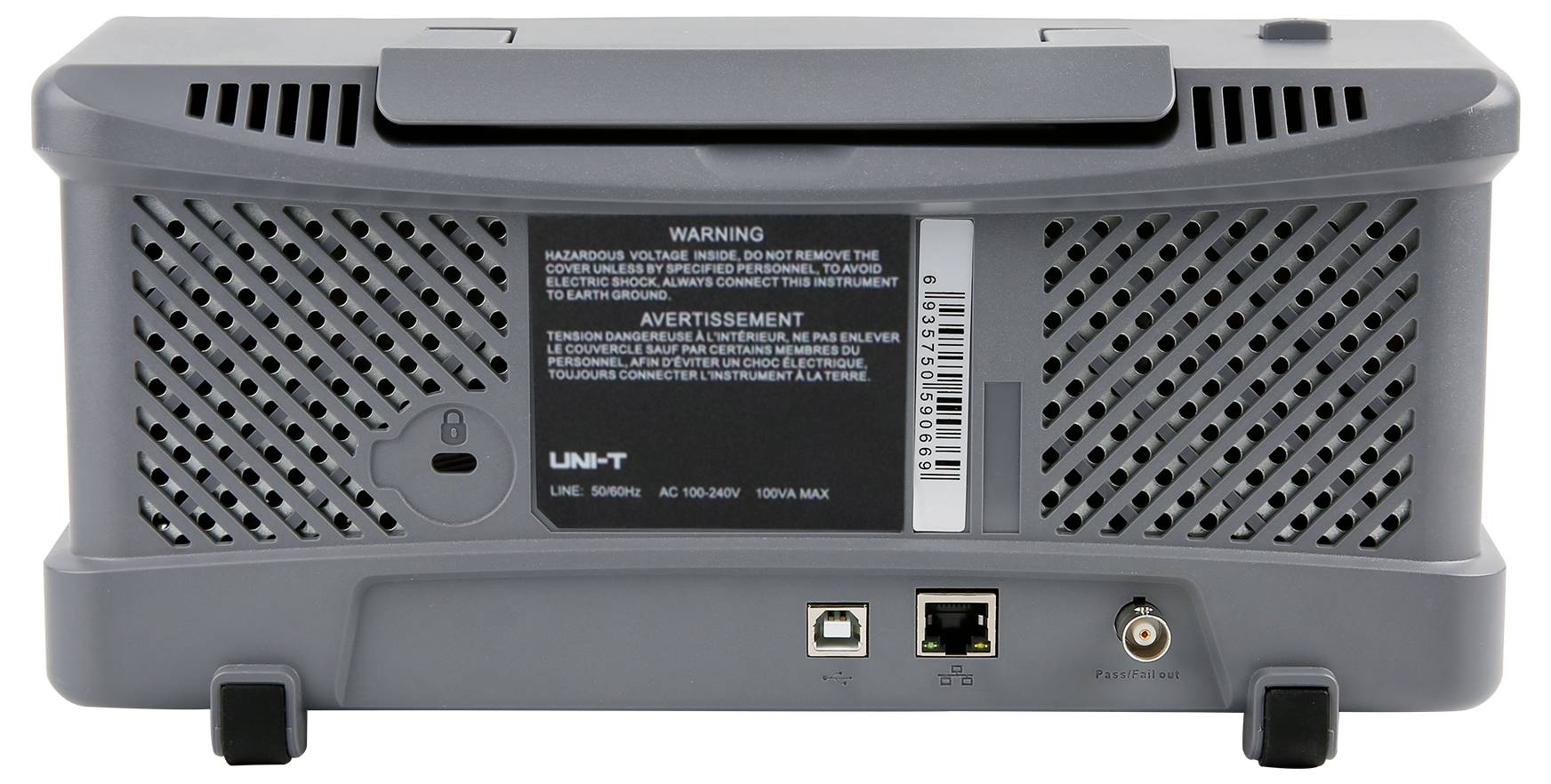

Back of an electrical device with ventilation slots, a LAN port, a coaxial connector, and a safety warning text.

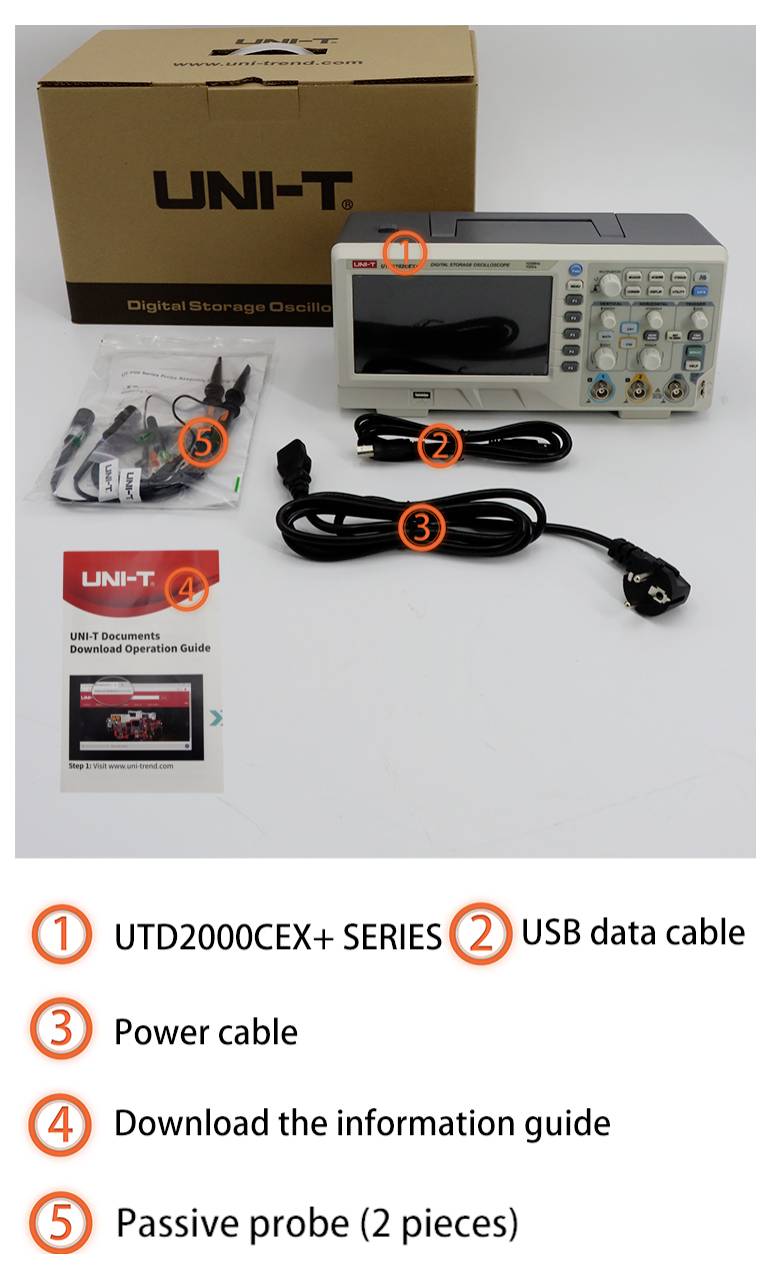

Digital Storage Oscilloscope Kit: Includes an oscilloscope, USB data cable, power cable, user manual and two passive probes.

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

UNI-T UTD2052NEX+ digital oscilloscope 50 MHz 2-channel 1 GSA/s 64 kpts ≥5000wfs/ 7" display Digital memory (DSO)

50 MHz
No. of analogue inputs 2

Technical specifications

Product type: Digital

Bandwidth: 50 MHz

Channel sample rate: 1 GS/s

Oscilloscope features: Digital storage (DSO)

No. of analogue inputs: 2

: Manufacturer's standards (no certificate)

Channel memory depth: 64 KP

Type: UTD2052CEX+

Documents & Downloads

Datasheet

Datasheet 3400004 Uni-T UTD2052CEX+ Digital 50 MHz 1 GS/s 64 KP Digital storage (DSO) 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3400004 Uni-T UTD2052CEX+ Digital 50 MHz 1 GS/s 64 KP Digital storage (DSO) 1 pc(s)

Description

The UTD2052MEX+ is a powerful oscilloscope developed for precise and efficient signal analysis. It offers a number of extended functions and enables a flexible measurement of different signals.

The UTD2052MEX+ has a variety of trigger modes, 34 automatic parameter measurement functions and mathematical operations for detailed signal processing. The optimized user interface improves control and increases work efficiency, so that even complex signal measurements can be handled with ease.

This text is machine translated.

Features

- Extended display area & versatile square wave options: The UTD2000MEX+ series offers a 8div × 16div display area and a new AUTOSET strategy that facilitates complex testing.
- Multi-lingual & flexible square wave output: Supports 9 languages and offers square wave signals with 10 Hz, 100 Hz, 1 kHz and 10 kHz for selection.
- Various measurement and waveform recording functions : 34 automatic measurements and waveform recording with up to 1000 frames allow detailed analysis through playback and storage functions.

Scope of delivery

- UTD2052CES+ (50 MHz, 2 channels)
- Power cord × 1
- USB CABLE (UT-D14) × 1
- Passive probes (60 MHz, UT-P03) × 2
- Calibration certificate
- Multilingual safety instructions
- Brief instructions

Hints

More models

- UTD2202TEX+: 200 MHz bandwidth, 2 channels, 1 GSa/s sampling rate, 64 kpts memory depth, 5,000 WWFMs/s waveform capture rate.

- UTD2102CES+: 100 MHz bandwidth, 2 channels, 1 GSa/s sampling rate, 64 kpts memory depth, 5,000 WWFMs/s waveform capture rate.

Description

Features

- Extended display area & versatile square wave options: The UTD2000MEX+ series offers a 8div × 16div display area and a new AUTOSET strategy that facilitates complex testing.
- Multi-lingual & flexible square wave output: Supports 9 languages and offers square wave signals with 10 Hz, 100 Hz, 1 kHz and 10 kHz for selection.
- Various measurement and waveform recording functions : 34 automatic measurements and waveform recording with up to 1000 frames allow detailed analysis through playback and storage functions.
