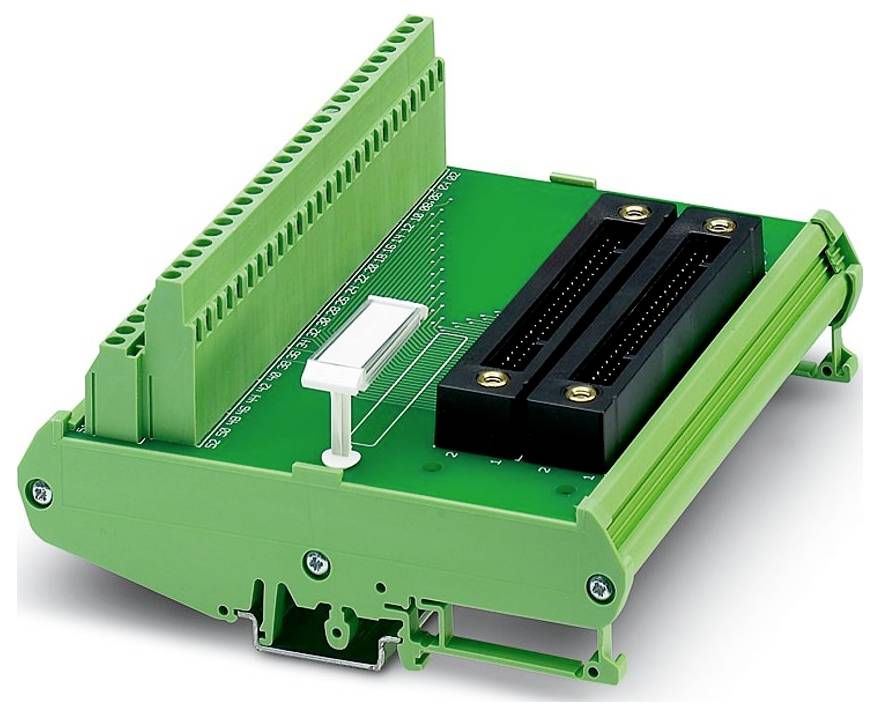

Universal module Phoenix Contact 2319427 UM-2KS50/UNI/CS Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Universal module
Total no. of pins
50
Connection
Yokogawa KS
Screws
Mounting type
Carry rail mounting
AWG
24 - 12
Datasheet (PDF)
Technical specifications
- Number of pins: 52
- Connection type: screw terminals.
- M3 screw thread
- Tightening torque: 0.5 Nm ... 0.6 Nm
- Conductor cross-section flexible: 0.2 mm² ... 2.5 mm²;0.25 mm² ... 1.5 mm² (wire-end sleeve without plastic sleeve);0.25 mm² ... 2.5 mm² (wire-end sleeve with plastic sleeve)
- Conductor cross-section rigid: 0.2 mm² ... 4 mm².
- Wire cross-section AWG: 24 ... 12
- Width 139.5 mm
- Height: 125.4 mm
- Depth: 65.9 mm
- Ambient conditions: Environmental conditions
- Ambient temperature (operation): -20 °C ... 65 °C
- Ambient temperature (storage/transport): -20 °C ... 70 °C
- Altitude: ≤ 2000 m.
- Standards/regulations: EN IEC 60664-1
- Note: Usable system cables: Phoenix Contact YUC50, Yokogawa AKB331
- Mounting type: Rail mounting
- Overvoltage category II
- Pollution level: 2
- Stripped length: 7 mm
- Air and creepage distances: Air and creepage distances
- All mounting positions permitted
- Note on operation: For the intended use, the requirements of the installation guideline (see downloads) must be observed. In the case of applications or use with third-party products, the requirements, safety and warning notices of the respective third-party manufacturer must also be met.
- Contact spacing: 5.08 mm
- Certificate: UKCA-compliant
- Article dimensions: Article dimensions
- Number of channels: 32
- Insulation: Functional insulation
- UKCA
- Rated insulation voltage 50 V
- Rated surge voltage 0.5 kV (1.2 / 50 μs)
- Protection type (installation location) ≤ IP54
- Conductor cross-section flexible (2 conductors of the same cross-section): 0.2 mm² ... 1.5 mm²;0.25 mm² ... 0.75 mm² (wire-end sleeve without plastic sleeve);0.5 mm² ... 0.5 mm² (TWIN-end sleeve with plastic sleeve)
- Status display available: No.
- Number of connections: 2
- Insulation properties: Air and creepage distances: Insulation properties: Air- and creepage distances
- MATCHING I/O-CARD: NFDV151;NFDV161;NFDV551;NFDV561
- Supported control: YOKOGAWA CS3000 CentumVP: Supported control: YOKOGAWA CS3000 CentumVP
- Supported control: YOKOGAWA STARDOM: Supported control: YOKOGAWA STARDOM
- OPERATING VOLTAGE (DC): ≤ 30 V DC
- Current (each branch): ≤ 0.1 A.
- Connection 1 (control level): Connection 1 (control level)
- Connection 2 (field level): Connector 2 (field level)
- Conductor cross-section rigid (2 conductors of the same cross-section): 0.2 mm² ... 1.5 mm².
- Protection class (module): IP00
- Product type
Universal module
- Total no. of pins
50
- Connection
Yokogawa KS
Screws
- Mounting type
Carry rail mounting
24 - 12
- Dim
(L x W x H) 65.9 x 139.5 x 125.4 mm
- Content
1 pc(s)
- Number of pins
50
- Width
139.5 mm
- Height
125.4 mm
- Length
65.9 mm
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
4 mm²
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Depth
65.9 mm
- Test current
0.1 A
- Rated voltage
30 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3579028 Universal module Phoenix Contact 2319427 UM-2KS50/UNI/CS Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3579028 Universal module Phoenix Contact 2319427 UM-2KS50/UNI/CS Content: 1 pc(s)
Description
Universal module for connection to up to 32-channel digital Yokogawa cards, 1:1 connection from Yokogawa system plug to screw terminal connection.
