Name: VER H03VVH2-F 2x0,75 ws Ri.100 Power feed H03VVH2-F 2 x 0.75 mm² White 100 m
SKU: 3336417

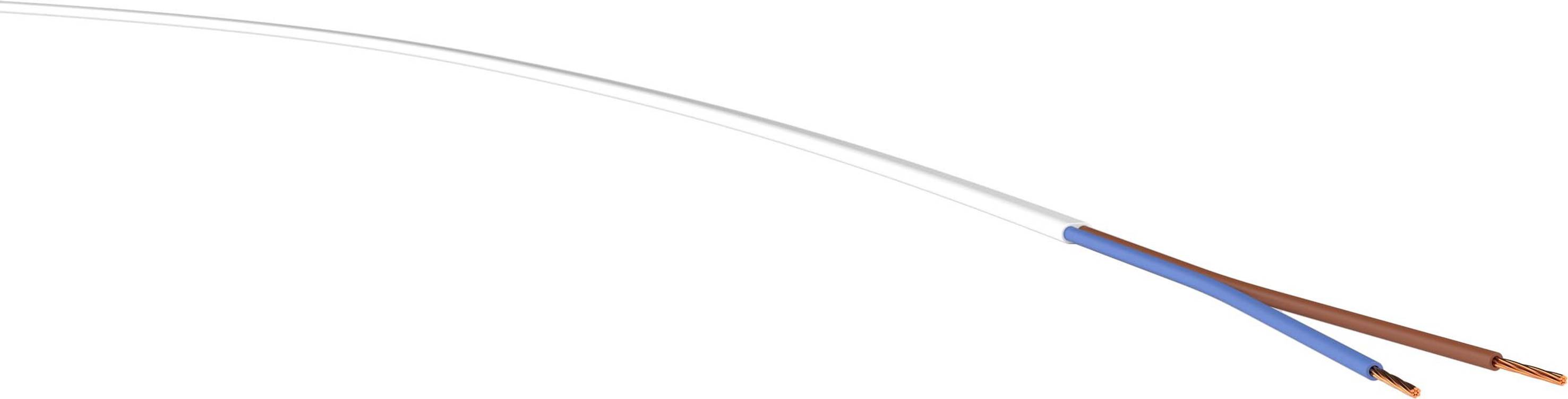

Two-core electrical cable with white outer sheath, blue and brown inner conductors visible at one end.

Image similar

Product type

Power feed

Cable type

H03VVH2-F

No. of leads

2 x

Cross section (each core)

0.75 mm²

No. of leads (part 2)

2 x

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Conductor class: Fine strands
Wire identification: Colour
With ground wire: No.
Jacket material: Polyvinyl chloride (PVC)
Cable geometry: Flat
Smoke arm according to IEC 61034-2: No.
Line-Width about 5.6 mm
Line height approx. 3.4 mm

Product type: Power feed

Cable type: H03VVH2-F

No. of leads: 2 x

Cross section (each core): 0.75 mm²

No. of leads (part 2): 2 x

Cross section (each core) (part 2): 0.75 mm²

Cross section: 2 x 0.75 mm² + 2 x 0.75 mm²

Cable features: Flat
Flexible

Width: 5.6 mm

Height: 3.4 mm

Factory colour: White

Content: 100 m

Nominal voltage: 300 V

Nominal voltage U0: 300 V

Packaged: Yes

Sold per metre: No

Halogen-free: No

Manufacturer part #: VER H03VVH2-F 2x0,75 ws Ri.100

Insulation material: Polyvinyl chloride

Min. temperature range (flexible installation): 5 °C

Max. temperature range (flexible installation): 70 °C

Max. length sold by the metre: 100 m

Type: VER H03VVH2-F 2x0,75 ws Ri.100

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3336417 VER H03VVH2-F 2x0,75 ws Ri.100 Power feed H03VVH2-F 2 x 0.75 mm² White 100 m

Description

These cables are intended for the connection of light electrical devices (e.g. table lamps, standing lamps, kitchen machines, household vacuum cleaners, office machines) broadcasting equipment) with low mechanical stress, as far as they are permitted in the relevant equipment regulations.

This text is machine translated.
