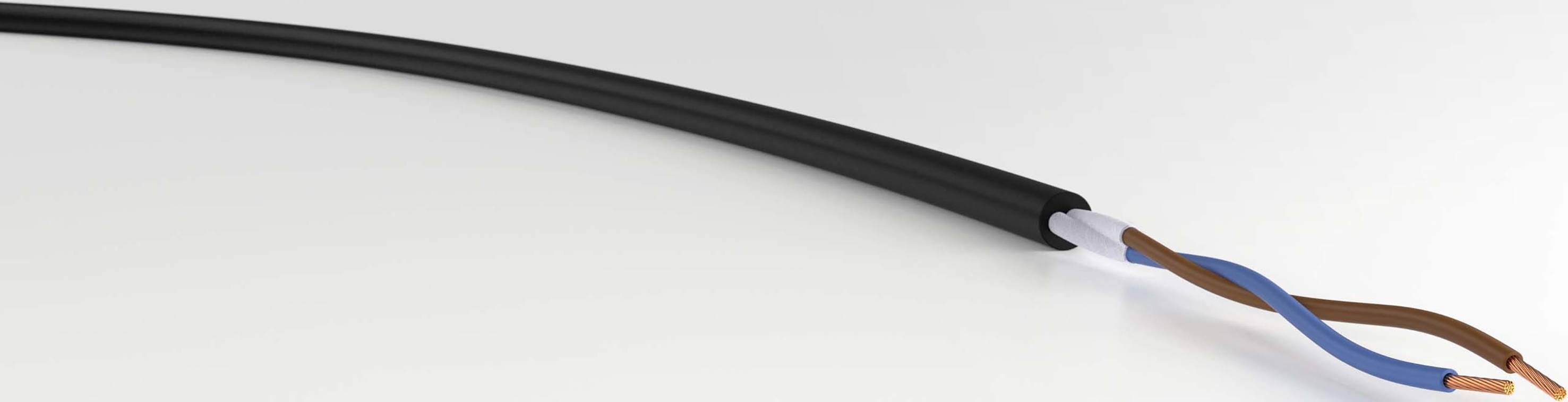

Image similar
Technical specifications
- Conductor class: Fine strands
- Specification Wire insulation: Rubber - ethylene propylene rubber (EPR)
- With ground wire: No.
- Min Permitted bending radius, stationary use/fixed installation: 30 mm
- Oil resistant according to EN 60811-404: No.
- Specification of sheath material: Rubber - ethylene propylene rubber (EPR)
- Cable geometry: Round
- Smoke arm according to IEC 61034-2: No.
- Min Permissible bending radius, flexible use/free movement: 45 mm
- Product type
Power feed
- Cable type
H05RR-F
- No. of leads
2 x
- Cross section (each core)
0.75 mm²
- No. of leads (part 2)
2 x
- Cross section (each core) (part 2)
0.75 mm²
- Cross section
2 x 0.75 mm² + 2 x 0.75 mm²
- Cable features
Flat
Flexible
- Outside Ø
7.40 mm
- Factory colour
Black
- Content
50 m
- Nominal voltage
500 V
- Nominal voltage U0
300 V
- Packaged
Yes
- Manufacturer part #
VER H05RR-F 2x0,75 Ri. 50
- Min. temperature range (flexible installation)
-25 °C
- Max. temperature range (flexible installation)
60 °C
- Min. temperature range (fixed installation)
-25 °C
- Max. temperature range (fixed installation)
60 °C
- Max. length sold by the metre
50 m
- Type
VER H05RR-F 2x0,75 Ri. 50
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3336689 VER H05RR-F 2x0,75 Ri. 50 Power feed H05RR-F 2 x 0.75 mm² Black 50 m
Description
Complies with VDE 0282. For use on hand-held equipment and light workshop tools for light to medium demands in dry and damp rooms and also outdoors at times. Max. operating temperature: 60 °C
This text is machine translated.
This text is machine translated.
Hints
Made in Europe
