Name: VER H07V-K 4 dbl/ws Ri.100 Wire core (H)07V-K 1 x 4 mm² Dark blue, White 100 m
SKU: 3335954

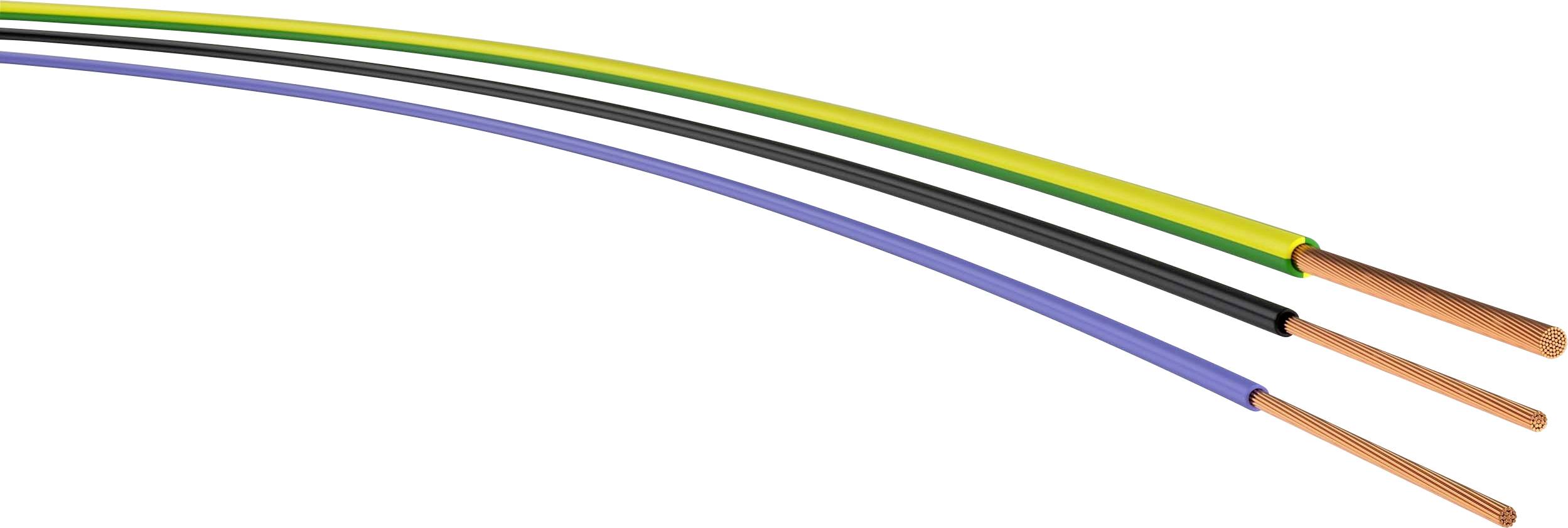

'Three electrical conductors in different colours: Yellow-Green, Black and Blue, with copper ends, on a white background.'

Product type

Wire core

Cable type

(H)07V-K

No. of leads

1 x

Cross section (each core)

4 mm²

No. of leads (part 2)

1 x

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Conductor material: Copper
Conductor class: Fine strands
Working temperature 5 - 70 °C
Oil resistant according to EN 60811-404: No.
Cold resistant according to EN 60811-504+505+506: No.
Smoke arm according to IEC 61034-2: No.

Product type: Wire core

Cable type: (H)07V-K

No. of leads: 1 x

Cross section (each core): 4 mm²

No. of leads (part 2): 1 x

Cross section (each core) (part 2): 4 mm²

Cross section: 1 x 4 mm² + 1 x 4 mm²

Cable features: Flat
Flexible

Outside Ø: 4.15 mm

Factory colour: Dark blue
White

Content: 100 m

Nominal voltage: 750 V

Nominal voltage U0: 450 V

Packaged: Yes

Manufacturer part #: VER H07V-K 4 dbl/ws Ri.100

Insulation material: Polyvinyl chloride

Max. temperature range (fixed installation): 70 °C

Max. length sold by the metre: 100 m

Type: VER H07V-K 4 dbl/ws Ri.100

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3335954 VER H07V-K 4 dbl/ws Ri.100 Wire core (H)07V-K 1 x 4 mm² Dark blue, White 100 m

Description

Complies with VDE 0281. For laying in dry rooms, in devices, switchgear and distributors, in pipes on or under plaster as well as in closed installation channels. In protected laying in and at lights. Max. operating temperature: 70 °C
