Name: VER JE-Y(ST)Y 4x2x0,8 Ri.100 Data cable JE-Y(ST)Y 4 x 2 x 0.8 mm² Grey 100 m
SKU: 3336603

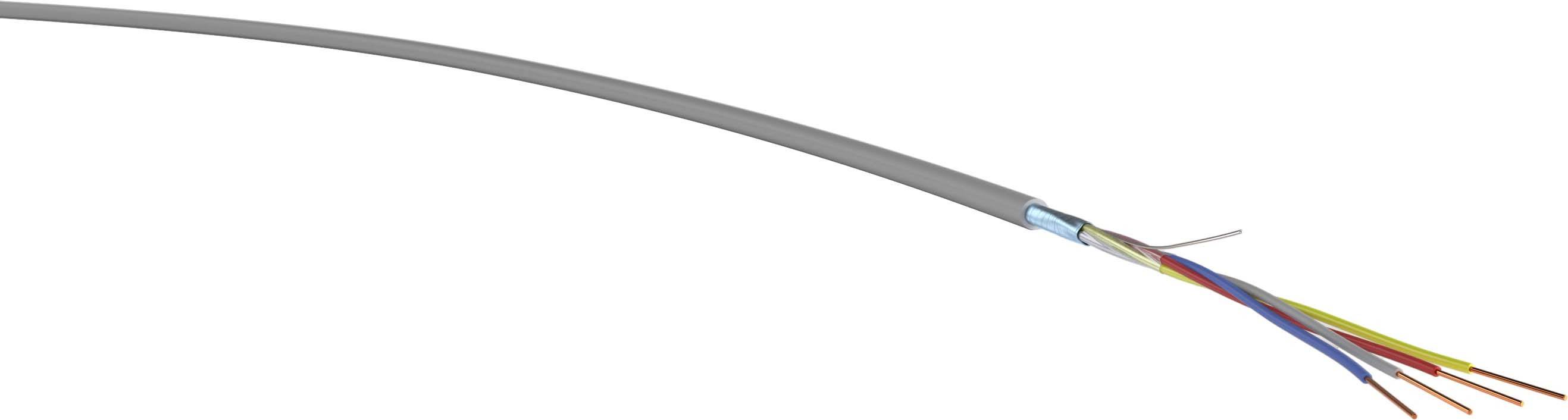

A cross-section of a multi-core cable with four coloured wires, suitable for electrical applications.

Image similar

Product type

Data cable

No. of leads

8 x

Cross section (each core)

0.8 mm²

Cable type

JE-Y(ST)Y

Twisted pair cabling (part 1)

Yes (1)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Conductor class: Single-wire
Wire identification: Colour
Jacket material: Polyvinyl chloride (PVC)
Wire diameter 0.8 mm
Number of rope elements: 2
Wire rope element: Pairs
Shield over wire element: Without
Shield over stranding: Foil
Cable longitudinally watertight: No.
Cable transverse water-proof: No.
Protection jacket: Without
Min Permitted bending radius, stationary use/fixed installation: 64 mm

Product type: Data cable

Cable type: JE-Y(ST)Y

No. of leads: 8 x

Cross section (each core): 0.8 mm²

Twisted pair cabling (part 1): Yes (1)

Cross section: 4 x 2 x 0.8 mm²

Outside Ø: 8.50 mm

Factory colour: Grey

Content: 100 m

Packaged: Yes

Manufacturer part #: VER JE-Y(ST)Y 4x2x0,8 Ri.100

Insulation material: Polyvinyl chloride

Min. temperature range (flexible installation): -5 °C

Max. temperature range (flexible installation): 50 °C

Min. temperature range (fixed installation): -30 °C

Max. temperature range (fixed installation): 70 °C

Type: VER JE-Y(ST)Y 4x2x0,8 Ri.100

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3336603 VER JE-Y(ST)Y 4x2x0,8 Ri.100 Data cable JE-Y(ST)Y 4 x 2 x 0.8 mm² Grey 100 m

Description

Complies with VDE 0815. For the transmission of signals and measured values in symmetrical circuits of control and regulation technology, as well as for the transmission of information in data and process computer systems. Suitable for fixed installation in dry and damp rooms. Max. operating temperature: 70 °C
