Name: VER JE-Y(ST)Y/EB 2x2x0,8 T500 Data cable JE-Y(ST)Y/EB 2 x 2 x 0.8 mm² Blue 500 m
SKU: 3336601

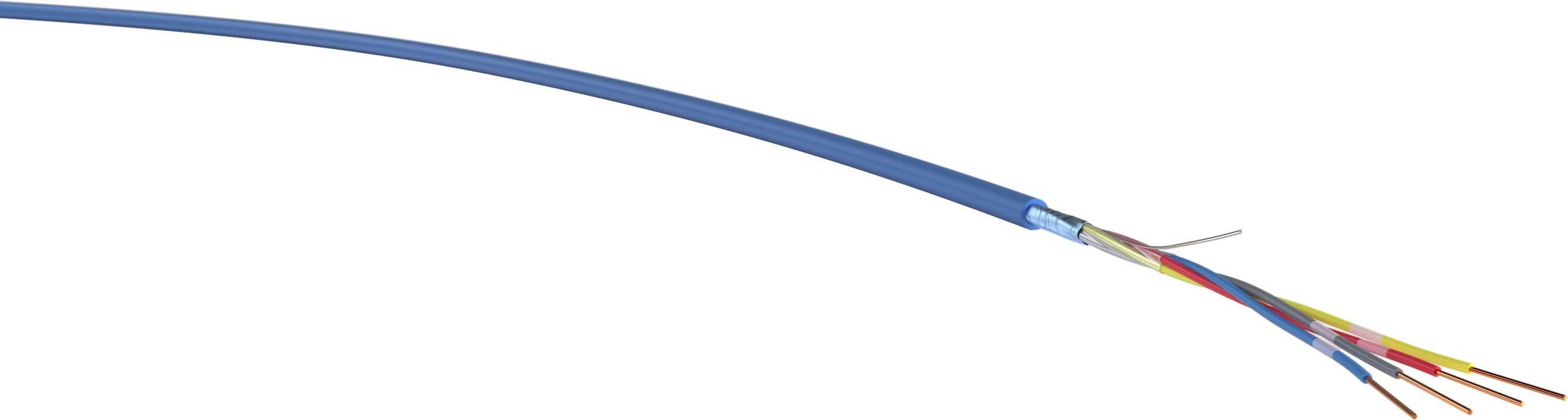

A blue cable shows partially exposed copper wires. The cable is frequently used for electrical applications.

Image similar

Product type

Data cable

No. of leads

4 x

Cross section (each core)

0.8 mm²

Cable type

JE-Y(ST)Y/EB

Twisted pair cabling (part 1)

Yes (1)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Conductor class: Single-wire
Jacket material: Polyvinyl chloride (PVC)
Wire diameter 0.8 mm
Shield over wire element: Without
Shield over stranding: Foil
Cable longitudinally watertight: No.
Cable transverse water-proof: No.
Protection jacket: Without
Min Permitted bending radius, stationary use/fixed installation: 45 mm

Product type: Data cable

Cable type: JE-Y(ST)Y/EB

No. of leads: 4 x

Cross section (each core): 0.8 mm²

Twisted pair cabling (part 1): Yes (1)

Cross section: 2 x 2 x 0.8 mm²

Outside Ø: 6.00 mm

Factory colour: Blue

Content: 500 m

Packaged: Yes

Manufacturer part #: VER JE-Y(ST)Y/EB 2x2x0,8 T500

Insulation material: Polyvinyl chloride

Min. temperature range (flexible installation): -5 °C

Max. temperature range (flexible installation): 50 °C

Min. temperature range (fixed installation): -30 °C

Max. temperature range (fixed installation): 70 °C

Type: VER JE-Y(ST)Y/EB 2x2x0,8 T500

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3336601 VER JE-Y(ST)Y/EB 2x2x0,8 T500 Data cable JE-Y(ST)Y/EB 2 x 2 x 0.8 mm² Blue 500 m

Description

Complies with VDE 0815. For the transmission of signals and measured values in symmetrical circuits of control and regulation technology, as well as for the transmission of information in data and process computer systems. Suitable for fixed installation in dry and damp rooms. Suitable for intrinsically safe circuits. Max. operating temperature: 70 °C
