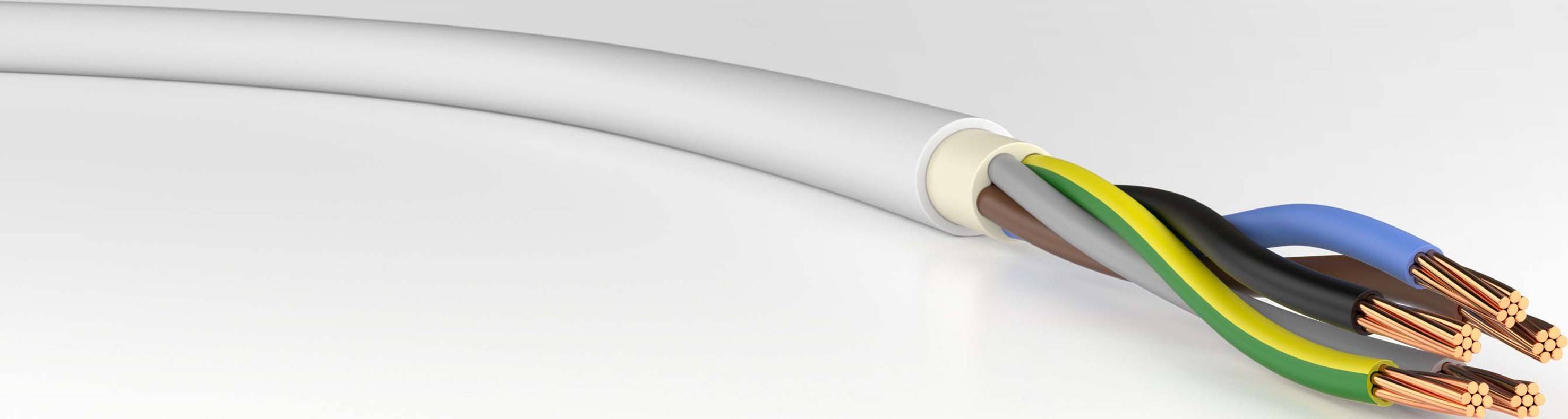

An open electrical cable reveals several insulated copper wires in different colours, protruding from a white outer sheath.

An open electrical cable reveals several insulated copper wires in different colours, protruding from a white outer sheath.

Image similar

Product type

Power feed

Cable type

NYM-J

No. of leads

5 x

Cross section (each core)

10 mm²

Content

50 m

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Conductor material: Copper
Conductor class: Single-wire
Wire identification: Colour
With ground wire: Yes
Max. Load Conductor temperature 70 °C
Side wire: No.
Protective cover: Without
Reinforcement/armoring: Without
Jacket material: Polyvinyl chloride (PVC)
Fire classification to EN 13501-6: ECA
Min Permitted bending radius, stationary use/fixed installation: 78 mm
Smoke arm according to IEC 61034-2: No.

Product type: Power feed

Cable type: NYM-J

No. of leads: 5 x

Cross section (each core): 10 mm²

Cross section: 5 x 10 mm²

Cable features: Flat
Flexible

Factory colour: Grey

Outside Ø: 19.50 mm

Content: 50 m

Nominal voltage: 500 V

Nominal voltage U0: 300 V

Packaged: Yes

Shielded: No

Manufacturer part #: VER NYM-J 5x10 Eca Ri.50

Insulation material: Polyvinyl chloride

Min. temperature range (flexible installation): 5 °C

Max. temperature range (flexible installation): 70 °C

Min. temperature range (fixed installation): -40 °C

Max. temperature range (fixed installation): 70 °C

Type: VER NYM-J 5x10 Eca Ri.50

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3336890 VER NYM-J 5x10 Eca Ri.50 Power feed NYM-J 5 x 10 mm² Grey 50 m

Description

Complies with VDE 0250. For laying over, on, in and under plaster in dry, damp and wet rooms as well as in walls and concrete, except for direct embedding in shaken, vibrated or rammed concrete. Also suitable for outdoor use, provided that it is protected from direct sunlight - but not in earth. Wire color coding according to VDE 0293. Max. operating temperature: 70 °C

This text is machine translated.

Hints

Made in Europe

Related products can be found here

Harmonised & Certified Cables Sockets & Switches (Misc.)Mains Power & Power Cable Connectors MCB GAO Wet Room Switches Connector Clips & Single Wire Connectors CEE Connectors, CEE Adapters Connector Clip & Single Wire Connector Accessories Switchboards Cable Strippers Cable Clips & Fixings Junction & Switch Boxes Power Cords & Mains Cables Wet Room Junction Boxes Side Cutters Cable Ties Cable Trunking

Description

Complies with VDE 0250. For laying over, on, in and under plaster in dry, damp and wet rooms as well as in walls and concrete, except for direct embedding in shaken, vibrated or rammed concrete. Also suitable for outdoor use, provided that it is protected from direct sunlight - but not in earth. Wire color coding according to VDE 0293. Max. operating temperature: 70 °C

This text is machine translated.

Hints

Made in Europe
