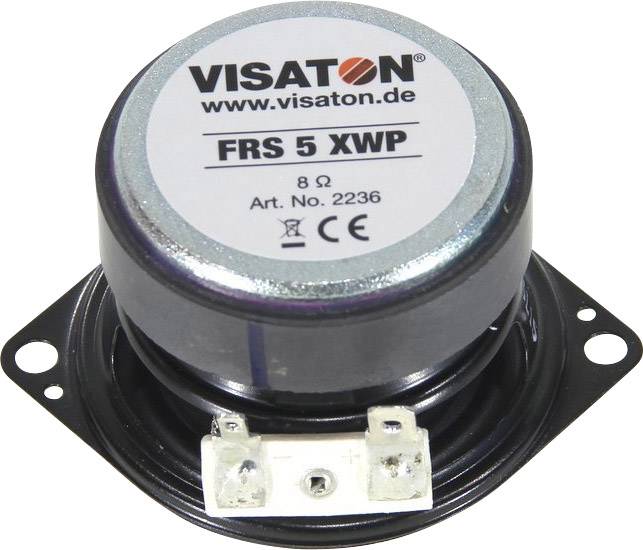

Visaton FRS 5 XWP - 8 Ohm 2 inch 5 cm Wideband speaker 5 W 8 Ω Black
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 16.99 / piece)
€ 16.99
incl. VAT
Only 6 Piece(s) available
Highlights & Details
Visaton FRS 5 XWP 2 inch broadband loudspeaker
- Load carrying capacity RMS/Max: 5/8 W
- Frequency range: 120 - 20 000 Hz
Technical specifications
- Product type
Wideband speaker
- Speaker size (cm)
5 cm
- Speaker size (inch)
2 inch
- RMS capacity
5 W
- Max. load
8 W
- Max. frequency
20000 Hz
- Min. frequency
120 Hz
- Impedance
8 Ω
- Sound pressure
86 dB
- Recess diameter
50 mm
- Recess depth
33.5 mm
- Weight
140 g
- Factory colour
Black
- Frequency range
120 Hz - 20000 Hz
Documents & Downloads
Datasheet
Datasheet 1487540 Visaton FRS 5 XWP - 8 Ohm 2 inch 5 cm Wideband speaker 5 W 8 Ω Black
User & Safety Instructions
User & Safety Instructions 1487540 Visaton FRS 5 XWP - 8 Ohm 2 inch 5 cm Wideband speaker 5 W 8 Ω Black
Description
5 cm (2") broadband speaker with black metal basket and two fastening straps. Because of the low resonance frequency starts the transmission range even at 120 Hz. Suitable as a broadband loudspeaker or mid-woofer in the loudspeaker lines for hifi and PA systems, as well as for PA systems in 100-V technology. Due to the small dimensions, it is also highly suitable as a control speaker in electronic devices.
This text is machine translated.
This text is machine translated.
Features
- Nominal load 5 W
- Music resiliency: 8 W
- Nominal impedance Z: 8 Ohm
- Transmission range (-10 dB) 120 - 20000 Hz
- Average Sound Pressure Level: 86 dB (1 W/1 m)
- Resonance frequency fs 190 Hz.
