Visaton FRWS 5 - 8 Ohm 2 inch 5 cm Wideband speaker 4 W 8 Ω Black

Loudspeaker in close-up. Round membrane with black surface and silver frame.

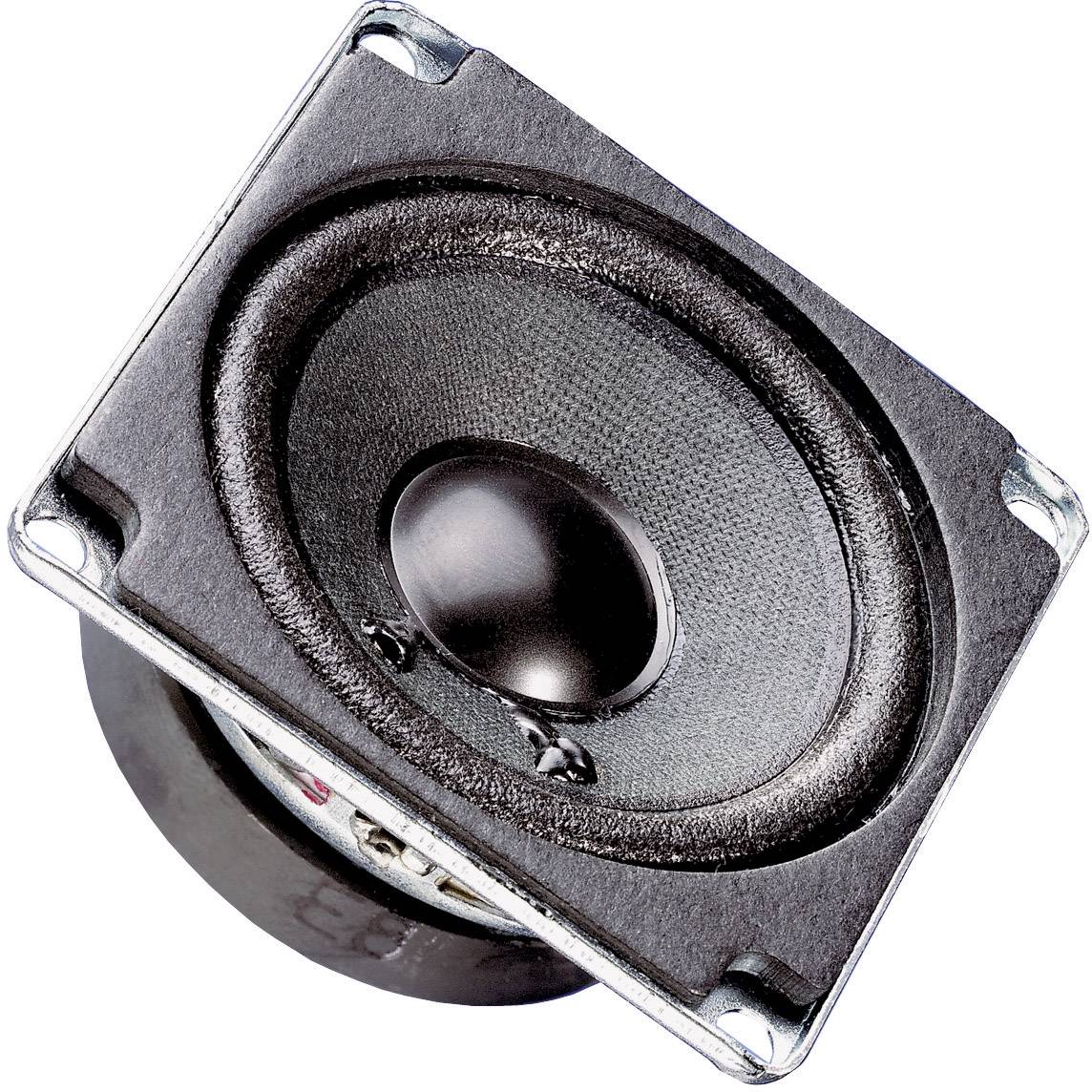

Loudspeaker viewed from above, showing an oval cone and four screw holes at the corners of the metal frame.

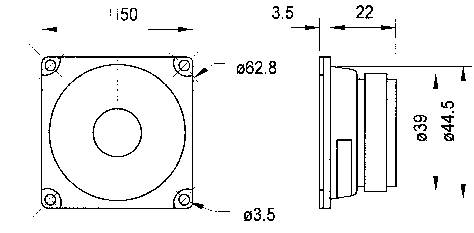

Technical drawing of a square component with four screw holes and a side profile. Dimensions: 62.8 mm diameter, 22 mm depth.
1/3
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 5 Nov
14 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 18.99 / piece)
€ 18.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Visaton FRWS 5 broadband loudspeaker

  • Moisture-impregnated diaphragm
  • Metallic frame

Technical specifications

Product type

Wideband speaker

Speaker size (cm)

5 cm

Speaker size (inch)

2 inch

RMS capacity

4 W

Max. load

10 W

Max. frequency

20000 Hz

Min. frequency

150 Hz

Impedance

8 Ω

Sound pressure

84 dB

Recess diameter

45 mm

Recess depth

22 mm

Weight

100 g

Factory colour

Black

Frequency range

150 Hz - 20000 Hz

Max. RMS power

4/10 W

Frequency range

150 - 20 000 Hz

Documents & Downloads

Datasheet

Datasheet 303632 Visaton FRWS 5 - 8 Ohm 2 inch 5 cm Wideband speaker 4 W 8 Ω Black

User & Safety Instructions

User & Safety Instructions 303632 Visaton FRWS 5 - 8 Ohm 2 inch 5 cm Wideband speaker 4 W 8 Ω Black

Description

5 cm (2")-broadband loudspeaker with square basket, soft seam and light special membrane.
