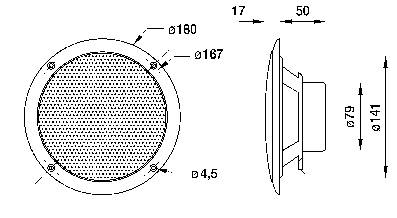

Technical Drawing of a Loudspeaker with Dimensions: Diameter 180 mm, Depth 50 mm, additional measurements and mounting holes are shown.

1/2

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

14 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 26.88 / piece)

€ 26.88

plus VAT.

Report legal concerns

Visaton FR 16 WP broadband loudspeaker black

Highlights & Details

Load carrying capacity RMS/Max 60/80 W
Frequency range 60 - 15 000 Hz
Installation-Ø 180 mm
Weather-proof
Ball throwing-proof
80°C temperature-proof

Technical specifications

Product type: Wideband speaker

Features: Saltwater-resistant

Speaker size (cm): 16 cm

Speaker size (inch): 6.5 inch

RMS capacity: 60 W

Max. load: 80 W

Max. frequency: 15000 Hz

Min. frequency: 60 Hz

Impedance: 4 Ω

Sound pressure: 86 dB

Recess diameter: 142 mm

Recess depth: 50.8 mm

Weight: 700 g

Factory colour: Black

Frequency range: 60 Hz - 15000 Hz

Max. RMS power: 60/80 W

Frequency range: 60 - 15 000 Hz

Documents & Downloads

Datasheet

Datasheet 303404 Visaton FR 16 WP - 4 Ohm 6.5 inch 16 cm Wideband speaker 60 W 4 Ω Black Saltwater-resistant

User & Safety Instructions

User & Safety Instructions 303404 Visaton FR 16 WP - 4 Ohm 6.5 inch 16 cm Wideband speaker 60 W 4 Ω Black Saltwater-resistant

Conformity certificate

Conformity certificate 303404 Visaton FR 16 WP - 4 Ohm 6.5 inch 16 cm Wideband speaker 60 W 4 Ω Black Saltwater-resistant

Description

Seawater-resistant 16 cm (6.5 inch) broadband speaker with die-cast plastic membrane as well as plastic basket and grille Completely corrosion-proof and water-resistant thanks to the feed line’s magnetic coating and silicon sleeve Colour: black.
