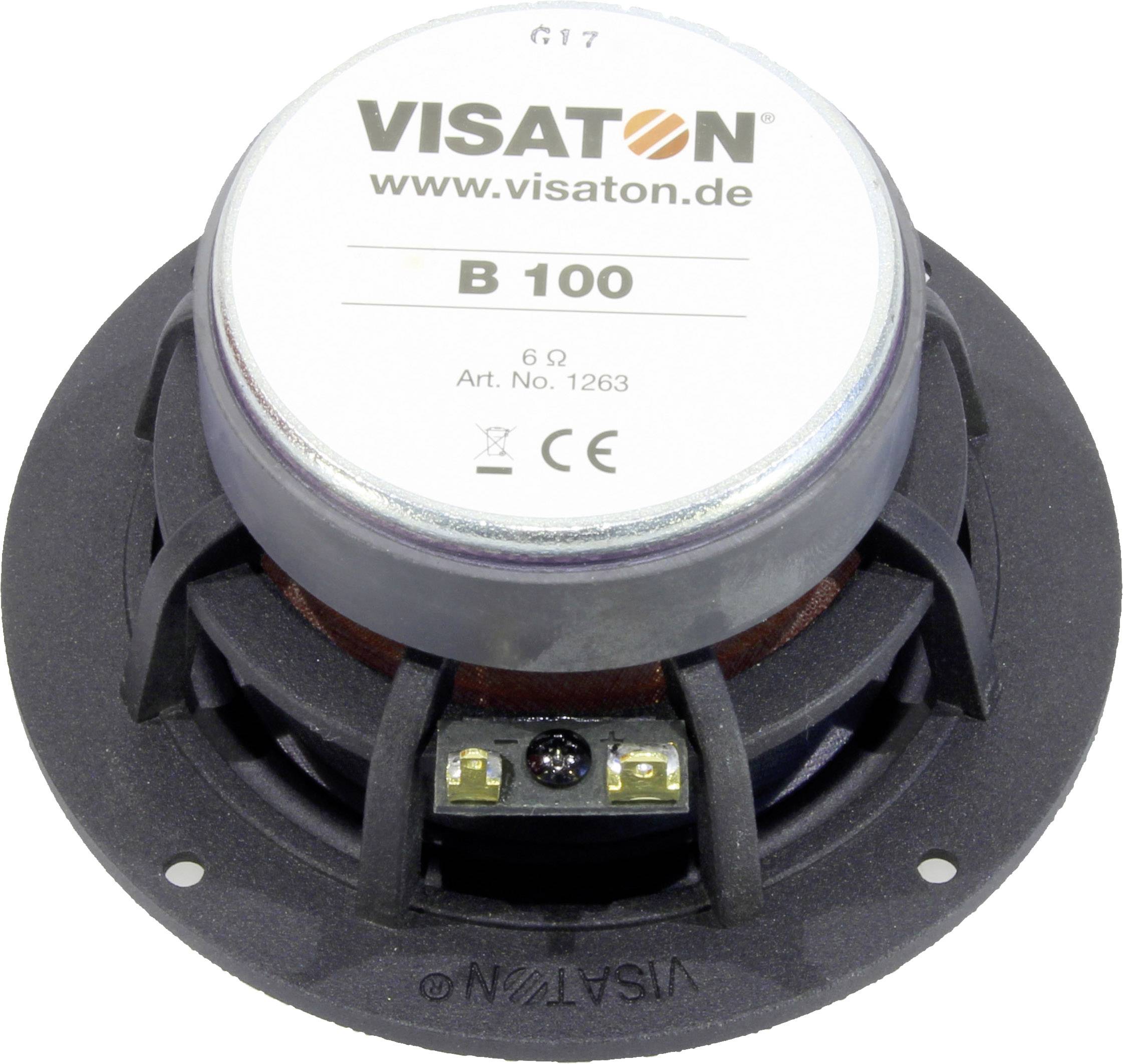

Visaton B 100 4 inch 10 cm Wideband speaker 30 W 6 Ω
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 77.30 / piece)
€ 77.30
plus VAT.
Only 6 Piece(s) available
Highlights & Details
Visaton B100 - 6 Ohm
- Max. load carrying capacity 60 W max.
- Sound pressure: 88 dB
Technical specifications
- Wire cross section 121.5 mm
- Product type
Wideband speaker
- Speaker size (cm)
10 cm
- Speaker size (inch)
4 inch
- RMS capacity
30 W
- Max. load
60 W
- Max. frequency
20000 Hz
- Impedance
6 Ω
- Sound pressure
88 dB
- Recess diameter
101 mm
- Recess depth
53 mm
- Weight
68 g
- Frequency range
20000 Hz (max)
Documents & Downloads
Datasheet
Datasheet 1628599 Visaton B 100 4 inch 10 cm Wideband speaker 30 W 6 Ω
User & Safety Instructions
User & Safety Instructions 1628599 Visaton B 100 4 inch 10 cm Wideband speaker 30 W 6 Ω
Description
10 cm (4") high-end broadband speaker with very balanced transmission behavior and light-tone rise for a pleasant sound image also beyond the 0-axis. High efficiency at simultaneously low distortion are only some of the qualities of this speaker.
