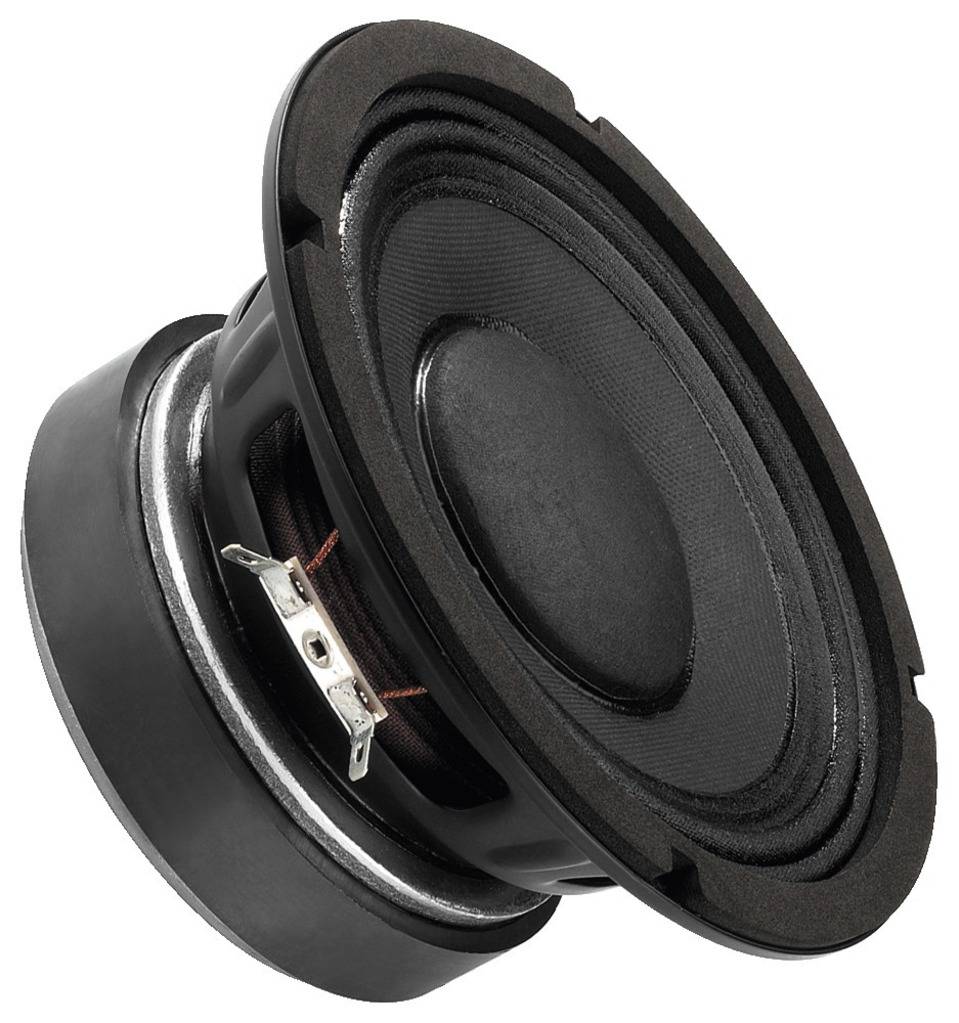

A black loudspeaker with visible magnet and membrane, photographed from the side, suitable for audio applications.

A black loudspeaker with visible magnet and membrane, photographed from the side, suitable for audio applications.

Monacor

Dispatches on Mon, 14 Sep

10 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 47.05 / piece)

€ 47.05

plus VAT.

Only 10 Piece(s) available

Report legal concerns

Highlights & Details

IMG Stage Line SP -6/100 PA PA mid-range

Impendance ( Z ) : 8 Ohm
Resonance frequency ( fs) : 90 Hz
Max. Frequency range: f3-8000 Hz
Maximum load : 200 W MAX
Rated power ( P ) : 100 WRMS
Aver. SPL ( 1 W / m ) : 94 dB
Compliance ( Cms ) : 0.28mm / N
Moving mass ( Mms ) : 11.2g
Mechanical properties ( QMS ) : 4.24
Electrical Q ( Qes ) : 0.49
Overall quality ( Qts ) : 0.44
Equivalent Volume ( Vas ) : 8 l
DC resistance. (Re) : 6, 7 Ohm
Power factor ( BxL ) : 9.3 Tm
Voice coil inductivity ( Le ) : 0.5 mH
Voice coil diameter .: 40 mm
Voice coil support : Kapton
Linear excursion ( XMAX ) : +/- 0.75 mm
Eff . Cone area (Sd ) : 139 cm2
Magnet Weight: 850 g
Weight: 2.4 kg

Technical specifications

Impedance (Z): 8 Ohm
Resonant frequency (fs): 90 Hz
Max. 3-8000 Hz frequency range: f
Maximum capacity 200 WMAX
Nominal load (P): 100WRMS
Avg. Sound pressure (1W/m): 94 dB
Suspension compliance (cms): 0.28 mm/N
Moved mass (MMS): 11.2 g
Mechanical quality (Qms): 4.24
Electrical quality (Qes): 0.49
Total quality (Qts): 0.44
Equivalent volume (Vas): 8 l
Dc resistance (Re): 6.7 Ohm
Power factor (BxL): 9.3 Tm
Schwingspulenind. (Le): 0.5 mH
Voice coil diameter: 40 mm
Kapton voice coil carrier:
Linear excursion (Xmax): +/-0.75 mm
Eff. Cone area (sd): 139 cm 2
Magnet weight: 850 g
Weight: 2.4 kg

Product type: Mid-range speaker

Speaker size (inch): 6.5 inch

Speaker size (cm): 16.51 cm

RMS capacity: 100 W

Max. load: 200 W

Min. frequency: 90 Hz

Max. frequency: 8000 Hz

Impedance: 8 Ω

Sound pressure: 94 dB

Recess diameter: 14.8 cm

Recess depth: 71 mm

Weight: 2.4 kg

Frequency range: 90 Hz - 8000 Hz

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1332616 IMG Stage Line,SP-6/100PA

Description

Features

PA mid-range
Very linear frequency response
Good efficiency
Optimal mid-woofer for powerful 3-way arrangements in the semi-professional use
