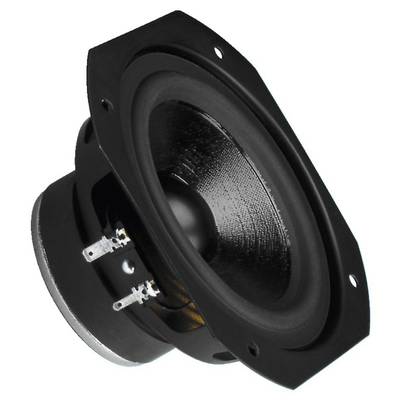

Monacor SPH-130 5.5 inch 14.5 cm Subwoofer 55 W 8 Ω
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 47.05 / piece)
€ 47.05
plus VAT.
Only 10 Piece(s) available
Highlights & Details
Monacor SPH-130 Hi Fi-Basslautsprecher
- In the meantime a classic design and seemingly simple materials, whose perfect processing but sound in completion enables
- This text is machine translated.
Technical specifications
- Impedance (Z): 8 Ohm
- Resonant frequency (fs): 38 Hz
- Max. 3-6000 Hz frequency range: f
- Maximum capacity 80 WMAX
- Nominal load (P): 55WRMS
- Avg. Sound pressure (1W/m): 89 dB
- Suspension compliance (cms): 2.14 mm/N
- Moved mass (MMS): 8.2 g
- Mechanical quality (Qms): 1.91
- Electrical quality (Qes): 0.39
- Total quality (Qts): 0.32
- Equivalent volume (Vas): 22 l
- Dc resistance (Re): 5.7 ohm
- Power factor (BxL): 5.4 Tm
- Schwingspulenind. (Le): 0.5 mH
- Voice coil diameter: 25 mm
- Voice coil former: Aluminum
- Linear excursion (Xmax): +/-2 mm
- Eff. Cone area (sd): 80 cm 2
- Magnet weight: 230 g
- Weight: 0.75 kg
- Product type
Subwoofer
- Speaker size (inch)
5.5 inch
- Speaker size (cm)
14.5 cm
- RMS capacity
55 W
- Max. load
80 W
- Min. frequency
150 Hz
- Max. frequency
6000 Hz
- Impedance
8 Ω
- Sound pressure
89 dB
- Recess diameter
12.9 cm
- Recess depth
65 mm
- Weight
750 g
- Frequency range
150 Hz - 6000 Hz
Documents & Downloads
Datasheet
Datasheet 1332668 Monacor SPH-130 5.5 inch 14.5 cm Subwoofer 55 W 8 Ω
User & Safety Instructions
User & Safety Instructions 1332668 Monacor SPH-130 5.5 inch 14.5 cm Subwoofer 55 W 8 Ω
Information
Information 1332668 Monacor SPH-130 5.5 inch 14.5 cm Subwoofer 55 W 8 Ω
Description
Features
- Hi-mid-woofer
- Paper membrane with special coating
- Profile Optimized rubber surround
- Extremely wide range, linear and resonance-free transmission range
- Perfect Equipment for modern 2-way combinations to D'Appolito arrangement as a mid-range in reusable boxes.
