Visaton W 200 S - 8 Ohm 8 inch 20.32 cm Subwoofer 75 W 8 Ω
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 60.50 / piece)
€ 60.50
plus VAT.
Only 8 Piece(s) available
Visaton W 200 S Woofer W 200 S
Highlights & Details
- Load-carrying capacity RMS/max. 75/115 W
- Frequency range 30 - 5000 Hz
- Installation-Ø 182 mm
Technical specifications
- Product type
Subwoofer
- Speaker size (inch)
8 inch
- Speaker size (cm)
20.32 cm
- RMS capacity
75 W
- Max. load
115 W
- Min. frequency
30 Hz
- Max. frequency
5000 Hz
- Impedance
8 Ω
- Sound pressure
88 dB

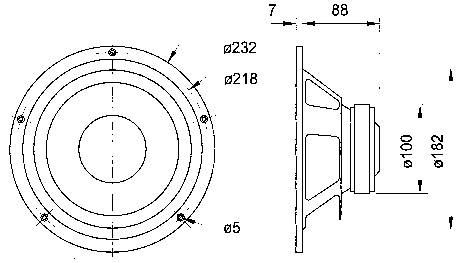

- Recess diameter
18.2 cm
- Recess depth
95 mm
- Weight
1.5 kg
- Frequency range
30 Hz - 5000 Hz
- Frequency range
30 - 5000 Hz
- SPL
88 dB
Documents & Downloads
Datasheet
Datasheet 333514 Visaton W 200 S - 8 Ohm 8 inch 20.32 cm Subwoofer 75 W 8 Ω
User & Safety Instructions
User & Safety Instructions 333514 Visaton W 200 S - 8 Ohm 8 inch 20.32 cm Subwoofer 75 W 8 Ω
Description

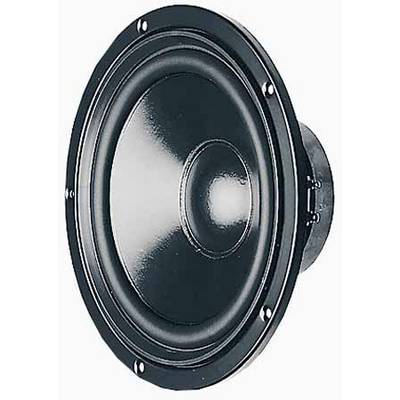

20 cm long stroke woofer. Rich bass reproduction owing to its special diaphragm design.
Hints
No protective grille included in the delivery
