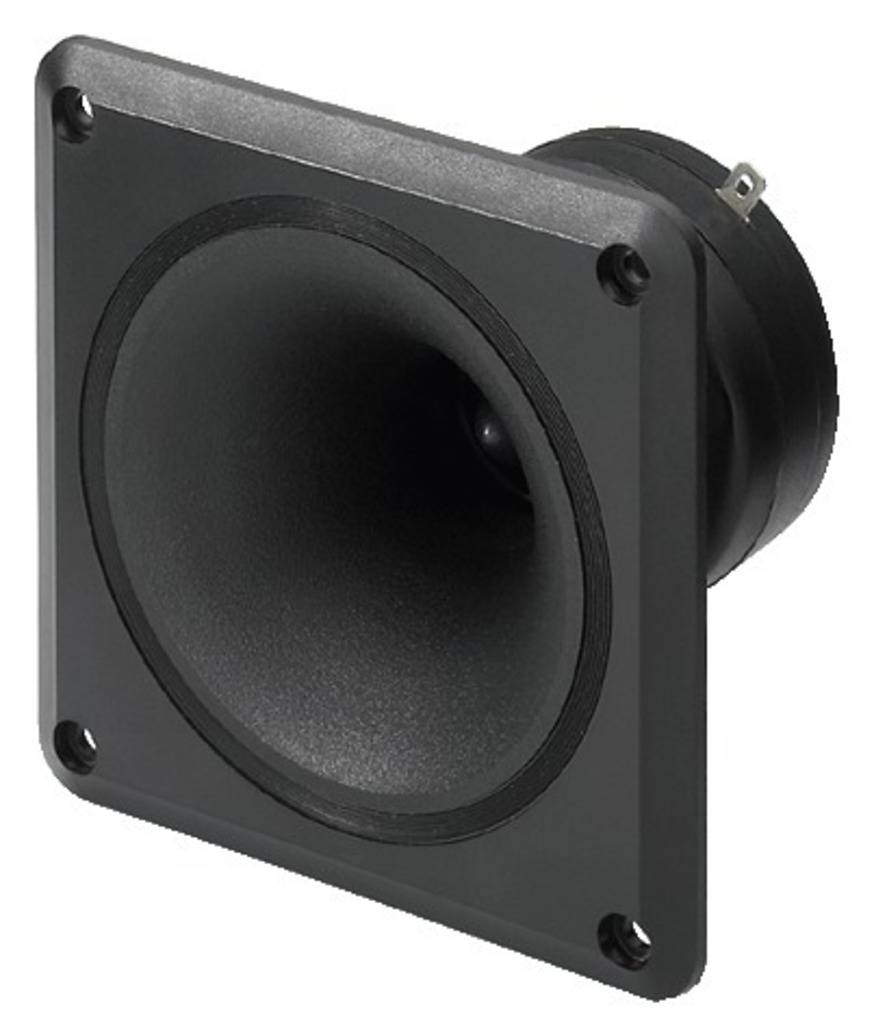

Monacor MPT-165 Piezo tweeter 115 W 8 Ω
EAN:
Part number:
Item no:
Number
Total (€ 12.60 / piece)
€ 12.60
plus VAT.
14-day return policy included
Technical specifications
- Frequency range: 1800 20000 Hz
- Max. Voltage: 30 VWechsel
- Max. load capacity
- 4-ohm system: 225WMAX
- 8-ohm system: 115WMAX
- Avg. Schalldr. (2.83V/1m): 93 dB
- Beam angle (vert./hor.): 45°/45°
- Impedance/1 kHz:> 1000 Ohm
- Installation opening: 88 mm
- Cutout depth: 80 mm
- Dimensions: 110 x 110 mm
- Weight: 110 g
- Product type
Piezo tweeter
- RMS capacity
115 W
- Max. load
115 W
- Min. frequency
1800 Hz
- Max. frequency
20000 Hz
- Frequency range
1800 Hz - 20000 Hz
- Sound pressure
93 dB
- Impedance
8 Ω
- Recess depth
80 mm
- Weight
110 g
- Length
80 mm
- Width
11 cm
- Height
11 cm
- (Ø)
88 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1332145 Monacor MPT-165 Piezo tweeter 115 W 8 Ω
Description
Features
- Piezo tweeters
- Bullet-Typ
- Depth lower limit frequency
