Dome tweeter DT 94

Highlights & Details

Load capacity RMS/max. 70/110 W.

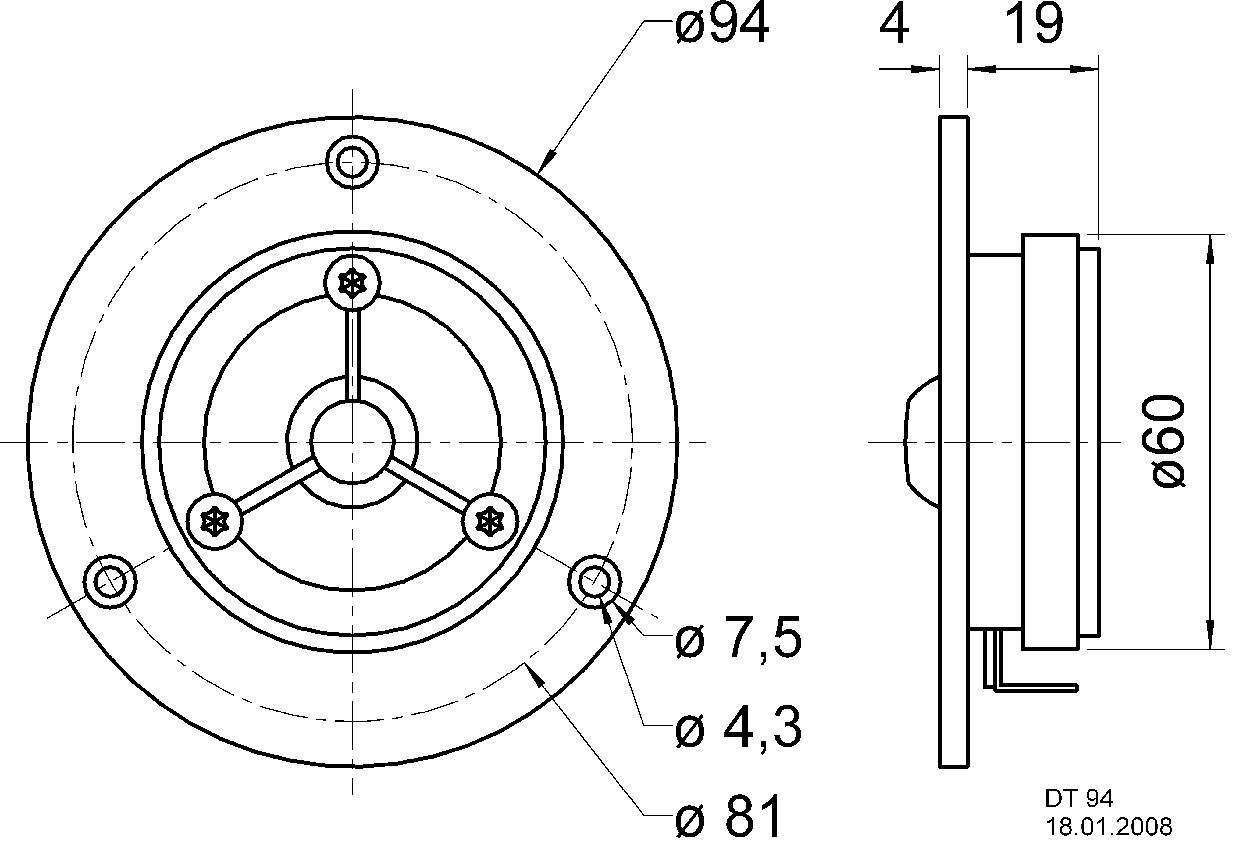

Installation - Ø 60 mm

Technical specifications

Product type: Dome tweeter

RMS capacity: 70 W

Max. load: 110 W

Min. frequency: 2000 Hz

Max. frequency: 22000 Hz

Frequency range: 2000 Hz - 22000 Hz

Sound pressure: 90 dB

Impedance: 4 Ω

Recess depth: 19 mm

Weight: 240 g

(Ø): 60 mm

RoHS-compliant: Yes

Documents & Downloads

Datasheet

Deutsch (Deutschland)

Datasheet 333115 Visaton DT 94 - 4 Ohm Dome tweeter 70 W 4 Ω

User & Safety Instructions

User & Safety Instructions 333115 Visaton DT 94 - 4 Ohm Dome tweeter 70 W 4 Ω

Description

Very affordable 20 mm polycarbonate domed tweeter.
