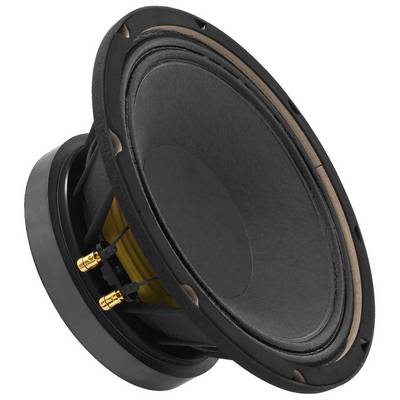

Monacor SP-10/250PRO 10 inch 25.4 cm Subwoofer 250 W 8 Ω 2-way
EAN:
Part number:
Item no:
Number
Total (€ 117.64 / piece)
€ 117.64
plus VAT.
Only 10 Piece(s) available
Technical specifications
- Impedance (Z): 8 Ohm
- Resonant frequency (fs): 47 Hz
- Max. Frequency range: f3 1333Hz
- Maximum load-carrying capacity: 500WMAX
- Nominal load (P): 250WRMS
- Avg. Sound pressure (1W/m): 94 dB
- Suspension compliance (cms): 0.20 mm/N
- Moved mass (MMS): 51 g
- Mechanical quality (Qms): 6.16
- Electrical quality (Qes): 0.35
- Total quality (Qts): 0.33
- Equivalent volume (Vas): 40.7 l
- Dc resistance (Re): 7.1 ohm
- Power factor (BxL): 18.3
- Schwingspulenind. (Le) 0.83 mH
- Voice coil diameter: diameter. 75 mm
- Kapton voice coil carrier:
- Linear excursion (Xmax): +/-7 mm
- Eff. Cone area (sd): 380 cm2
- Magnet weight: 2 kg
- Weight: 5.2 kg
- Product type
Subwoofer
- Speaker size (inch)
10 inch
- Speaker size (cm)
25.4 cm
- RMS capacity
250 W
- Max. load
500 W
- Min. frequency
3 Hz
- Max. frequency
2000 Hz
- Impedance
8 Ω
- Sound pressure
94 dB
- Recess diameter
22.8 cm
- Recess depth
12.1 cm
- Weight
5.2 kg
- Features
2-way
- Frequency range
3 Hz - 2000 Hz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1332552 Monacor SP-10/250PRO 10 inch 25.4 cm Subwoofer 250 W 8 Ω 2-way
Description
Features
- SP -8/150 PRO and SP -10/250 PRO are highly resilient and long-stroke PA chassis with aluminum die-cast basket, hinterlufteter spider and ventilated motor system for high thermal stability. You have ideal parameters for very good bass reproduction in compact bass reflex housings. PA-WOOFER, subwoofer, 500WMAX, 250WRMS, 8 Ohm
- Heavy-duty 25 cm woofer and subwoofer (10")
- Heat-resistant voice coil and vented pole drive system
- Very long-stroke interpretation for deep and loud bass playback
- Progressive membrane no voltage for high reliability
- Sturdy cast aluminum basket
- Ideal for compact subwoofer and 2-way systems with a cut-off frequency of approx. 1500 Hz for tweeter Hobby HiFi 03/2014 a particularly long stroke and level fixed bass driver for compact housing in order to 35 liters. (For example, in bauvorschlag HiFi-PA 10/2) with breath-taking explosive nature made the HiFi-PA 10/2 in the listening room your waiting. . . . Enormous level reserves. . . Outrageous delicate." "A particularly long stroke and Hobby HiFi 02/2014 level fixed bass driver for 35 to 40 liters more compact reflex housing to." Klang+Ton 03/2013 "Universal woofer for level of inserts, which, thanks to skillfully chosen TSP much low-frequency tone level from compact housings.
- This text is machine translated.
