Visaton W 200 - 4 Ohm 8 inch 20.6 cm Subwoofer 50 W 4 Ω
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 31.92 / piece)
€ 31.92
plus VAT.

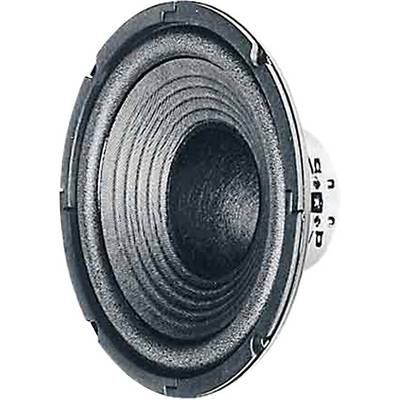

Visaton W 200 woofer.
Highlights & Details
- Load carrying capacity RMS/Max 50/80 W
- Frequency range 45 - 8000 Hz
- Installation-Ø 184 mm
Technical specifications
- Product type
Subwoofer
- Speaker size (inch)
8 inch
- Speaker size (cm)
20.6 cm
- RMS capacity
50 W
- Max. load
80 W
- Min. frequency
45 Hz
- Max. frequency
8000 Hz
- Impedance
4 Ω
- Sound pressure
88 dB
- Recess diameter
18.4 cm
- Recess depth
79 mm
- Weight
1.1 kg
- Frequency range
45 Hz - 8000 Hz
- Frequency range
45 - 8000 Hz
- SPL
88 dB
Documents & Downloads
Datasheet
Datasheet 333263 Visaton W 200 - 4 Ohm 8 inch 20.6 cm Subwoofer 50 W 4 Ω
User & Safety Instructions
User & Safety Instructions 333263 Visaton W 200 - 4 Ohm 8 inch 20.6 cm Subwoofer 50 W 4 Ω
Description
20 cm Hi-Fi woofer with strong drive, deep-drawn pole plate and a 38 mm voice coil for high load capacity. Elastic rubber surround, coated paper diaphragm and pressure compensation hole.
