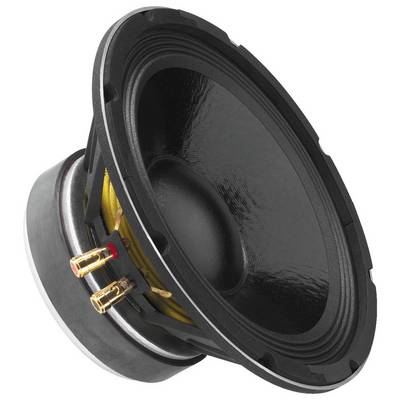

Monacor SP-10A/302PA 10 inch 25.4 cm Subwoofer 300 W 8 Ω 2-way, Damp-proof
EAN:
Part number:
Item no:
Number
Total (€ 134.45 / piece)
€ 134.45
plus VAT.
Only 10 Piece(s) available
Technical specifications
- Impedance (Z): 8 Ohm
- Resonant frequency (fs): 55 Hz
- Max. 3-3500 Hz frequency range: f
- Maximum load-carrying capacity: 600WMAX
- Nominal load (P): 300WRMS
- Avg. Sound pressure (1W/m): 98 dB
- Suspension compliance (cms): 0.24 mm/N
- Moved mass (MMS): 35 g
- Mechanical quality (Qms): 7,44
- Electrical quality (Qes): 0.31
- Total quality (Qts): 0.30
- Equivalent volume (Vas): 40 l
- Dc resistance (Re): 6.4 ohm
- Power factor (BxL): 15,82 Tm
- Schwingspulenind. (Le): 0.65 mH
- Voice coil diameter: 66 mm
- KAPTON voice coil carrier:
- Linear excursion (Xmax): +/-4 mm
- Eff. Cone area (sd): 346 cm2
- Magnet weight: 2 kg
- Weight: 5 kg.
- Product type
Subwoofer
- Speaker size (inch)
10 inch
- Speaker size (cm)
25.4 cm
- RMS capacity
300 W
- Max. load
600 W
- Min. frequency
3 Hz
- Max. frequency
3500 Hz
- Impedance
8 Ω
- Sound pressure
98 dB
- Recess diameter
23.4 cm
- Recess depth
12.4 cm
- Weight
5 kg
- Features
2-way
Damp-proof
- Frequency range
3 Hz - 3500 Hz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1332557 Monacor SP-10A/302PA 10 inch 25.4 cm Subwoofer 300 W 8 Ω 2-way, Damp-proof
Description
Features
- IMG Stage Line Professional Speaker very high load capacity, efficiency and drive parameters, a full bass playback allow: these speakers ensure excellent results as mid-woofer in the 2- and multi-way operation, as well as with the two larger models, as a subwoofer. Professional PA mid-woofer, 600WMAX, 300WRMS, 8 Ohm
- Very high load capacity
- Langhubig designed 25 cm professional speaker (10")
- Die-cast basket
- Water-repellent-coated diaphragm
- Very high quality processing finish with a rotated design front basket
- Far-reaching, distortion-free frequency response
- High degree of efficiency
- Motor System with pole core bore and additional magnet for magnetic field optimization and impedance linearization
- For compact BR-housing starting from 20 liters
- For professional and semi-professional PA applications of all kinds
- This text is machine translated.
