Monacor SP-15A/402PA 15 inch 38 cm Subwoofer 400 W 8 Ω
EAN:
Part number:
Item no:
Number
Total (€ 222.69 / piece)
€ 222.69
plus VAT.
Only 10 Piece(s) available
Highlights & Details

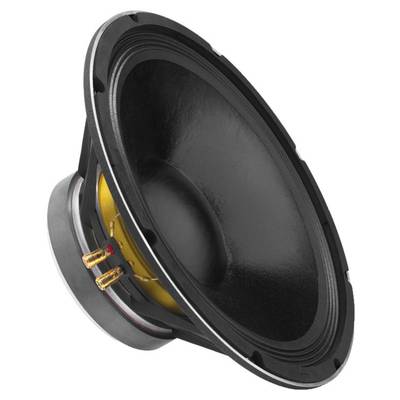

IMG Stage Line SP-15A/402 PA professional PA-WOOFER
- IMG Stage Line Professional Speaker very high load capacity, efficiency and drive parameters, which allow a full bass playback
- These speakers ensure excellent results as mid-woofer in the 2- and multi-way operation, as well as with the two larger models, as a subwoofer
- This text is machine translated.
Technical specifications
- Impedance (Z): 8 Ohm
- Resonant frequency (fs): 36 Hz
- Max. 3-3000 Hz frequency range: f
- Maximum load-carrying capacity: 800WMAX
- Nominal load (P): 400WRMS
- Avg. Sound pressure (1W/m): 100 dB
- Suspension compliance (cms): 0.22 mm/N
- Moved mass (MMS): 87g
- Mechanical quality (Qms): 7.45
- Electrical quality (Qes): 0.33
- Total quality (Qts): 0.31
- Equivalent volume (Vas): 235 l
- Dc resistance (Re): 6.5 ohm
- Power factor (BxL): 19.9 Tm
- Schwingspulenind. (Le): 0.9 mH
- Voice coil diameter: 100 mm
- Kapton voice coil carrier:
- Linear excursion (Xmax): +/- 5 mm
- Eff. Cone area (sd): 881 cm2
- Magnet weight: 2.3 kg
- Weight: 8 kg.
- Product type
Subwoofer
- Speaker size (inch)
15 inch
- Speaker size (cm)
38 cm
- RMS capacity
400 W
- Max. load
800 W
- Min. frequency
36 Hz
- Max. frequency
3000 Hz
- Impedance
8 Ω
- Sound pressure
100 dB
- Recess diameter
35 cm
- Recess depth
12 cm
- Weight
8 kg
- Frequency range
36 Hz - 3000 Hz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1332566 Monacor SP-15A/402PA 15 inch 38 cm Subwoofer 400 W 8 Ω
Description
Features
- Professional PA-Bass
- Very high load capacity
- Langhubig designed 38 cm-Woofer (15")
- Die-cast basket
- Water-repellent-coated diaphragm
- Very high quality processing finish with a rotated design front basket
- Far-reaching frequency response
- High degree of efficiency
- Excellent, deep bass reproduction
- Motor System with pole core bore and additional magnet for magnetic field optimization and impedance linearization
- For medium-sized BR-housing starting from 80 Liter
- For professional and semi-professional PA applications of all kinds
