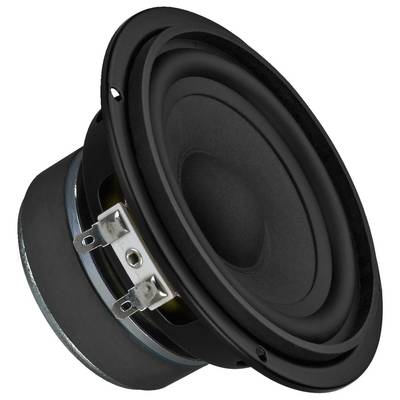

Monacor SPM-116/8 4 inch 11.5 cm Subwoofer 40 W 8 Ω
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 18.48 / piece)
€ 18.48
plus VAT.
Technical specifications
- Impedance (Z): 8 Ohm
- Resonant frequency (fs): 75 Hz
- Max. Frequency range: f 3-18000 Hz
- Maximum capacity 80 WMAX
- Nominal load (P): 40WRMS
- Avg. Sound pressure (1W/m): 87 dB
- Suspension compliance (cms): 0.98 mm/h
- Moved mass (MMS): 3.8 g
- Mechanical quality (Qms): 1.9
- Electrical quality (Qes): 0.81
- Total quality (Qts): 0.57
- Equivalent volume (Vas): 4.5 l
- Dc resistance (Re): 7.2 ohm
- Power factor (BxL): 4.2 Tm
- Schwingspulenind. (Le): 0.4 mH
- Voice coil diameter: 20.5 mm
- Voice coil former: Aluminum
- Linear excursion (Xmax): +/-1.5 mm
- Eff. Cone area (sd): 57 cm2
- Magnet weight: 230 g
- Weight: 0.52 kg
- Product type
Subwoofer
- Speaker size (inch)
4 inch
- Speaker size (cm)
11.5 cm
- RMS capacity
40 W
- Max. load
80 W
- Min. frequency
75 Hz
- Max. frequency
18000 Hz
- Impedance
8 Ω
- Sound pressure
87 dB
- Recess diameter
94 mm
- Recess depth
60 mm
- Weight
520 g
- Frequency range
75 Hz - 18000 Hz
Documents & Downloads
Datasheet
Datasheet 1332713 Monacor SPM-116/8 4 inch 11.5 cm Subwoofer 40 W 8 Ω
Datasheet 1332713 Monacor SPM-116/8 4 inch 11.5 cm Subwoofer 40 W 8 Ω
User & Safety Instructions
User & Safety Instructions 1332713 Monacor SPM-116/8 4 inch 11.5 cm Subwoofer 40 W 8 Ω
Description
Features
- Hi-mid-woofer
- Excellent replacement speaker in original manufacturer quality
- Resonance-poor paper diaphragm
- Long-term stable rubber surround
- Very good also for use as a broadband speakers suitable
- This text is machine translated.
