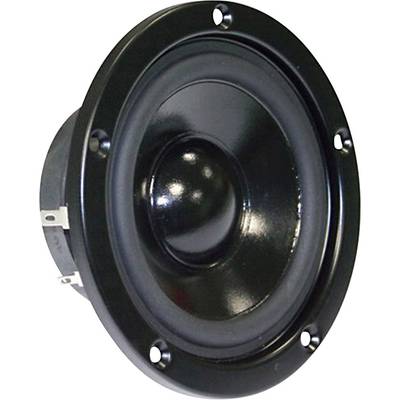

Visaton W 100 S - 8 Ohm 3.4 inch 94 cm Mid-range speaker/subwoofer 30 W 8 Ω
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Visaton W 100 S Woofer
- Load-carrying capacity RMS/max. 30/50 W
- Frequency range 67 - 10 000 Hz
- Installation-Ø 94 mm.
- Highest Quality Workmanship.
- Brilliant Sound Reproduction.
Technical specifications
- Product type
Mid-range speaker/subwoofer
- Speaker size (inch)
3.4 inch
- Speaker size (cm)
94 cm
- RMS capacity
30 W
- Max. load
50 W
- Min. frequency
67 Hz
- Max. frequency
10000 Hz
- Impedance
8 Ω
- Sound pressure
86 dB
- Recess diameter
94 mm
- Recess depth
54 mm
- Weight
490 g
- Frequency range
67 Hz - 10000 Hz
- Frequency range
67 - 10 000 Hz
- SPL
86 dB
Documents & Downloads
Datasheet
Datasheet 333468 Visaton W 100 S - 8 Ohm 3.4 inch 94 cm Mid-range speaker/subwoofer 30 W 8 Ω
User & Safety Instructions
User & Safety Instructions 333468 Visaton W 100 S - 8 Ohm 3.4 inch 94 cm Mid-range speaker/subwoofer 30 W 8 Ω
Description
10 cm Hi-Fi subwoofer with very balanced frequency response.
