Monacor MSH-115HQ 4 inch 11.6 cm Mid-range speaker 50 W 8 Ω
EAN:
Part number:
Item no:
Number
Total (€ 60.50 / piece)
€ 60.50
plus VAT.
Only 10 Piece(s) available
Highlights & Details

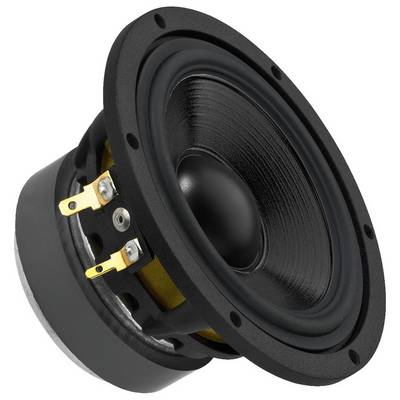

Monacor MSH-115 HQ high-quality hi-mid-woofer
- High-quality hi-fi chassis for ultimate sound claims
- For decades, the well-known and successful chassis of the SPH and MSH series now with innovative cast aluminum baskets, behind-ventilated centring spiders and optimized parameter sets.
- This text is machine translated.
Technical specifications
- Impedance (Z): 8 Ohm
- Resonant frequency (fs): 89 Hz
- Max. Frequency range: fx-8000Hz
- Maximum capacity 100 WMAX
- Nominal load (P): 50WRMS
- Avg. Sound pressure (1W/m): 87 dB
- Suspension compliance (cms): 0.5 mm/N
- Moved mass (MMS): 5.8 g
- Mechanical quality (Qms): 3,26
- Electrical quality (Qes): 0.66
- Total quality (Qts): 0.55
- Equivalent volume (Vas): 2.2 l
- Dc resistance (Re): 5.8 ohm
- Power factor (BxL): 5.35 Tm
- Schwingspulenind. (Le): 0.53 mH
- Voice coil diameter: 25 mm
- Voice coil former: Aluminum
- Linear excursion (Xmax): +/-3 mm
- Eff. Cone area (sd): 55 cm2
- Magnet weight: 230 g
- Weight: 0.67 kg
- Product type
Mid-range speaker
- Speaker size (inch)
4 inch
- Speaker size (cm)
11.6 cm
- RMS capacity
50 W
- Max. load
100 W
- Min. frequency
37 Hz
- Max. frequency
8000 Hz
- Impedance
8 Ω
- Sound pressure
87 dB
- Recess diameter
97 mm
- Recess depth
11 cm
- Weight
670 g
- Frequency range
37 Hz - 8000 Hz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1332240 Monacor MSH-115HQ 4 inch 11.6 cm Mid-range speaker 50 W 8 Ω
Description
Features
- Further development of the classic MSH-115
- Specialised for the reproduction of the important mid-range
- Die-cast basket and hinterlufteter spider for lowest mechanical losses
- High-quality, low resonance paper diaphragm
- Wide range and linear transmission range
- Also ideal for use in small satellite systems with subwoofer support suitable
