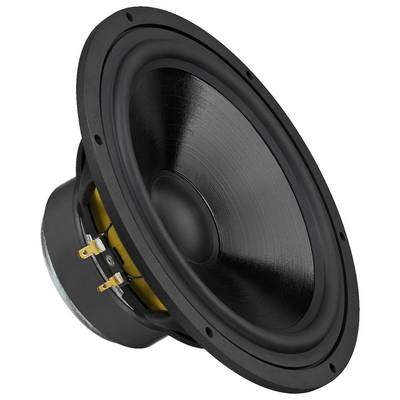

Monacor SPH-220HQ 8 inch 20.32 cm Subwoofer 100 W 8 Ω 2-way
EAN:
Part number:
Item no:
Number
Total (€ 105.03 / piece)
€ 105.03
plus VAT.
Only 10 Piece(s) available
Technical specifications
- Impedance (Z): 8 Ohm
- Resonant frequency (fs): 30 Hz
- Max. 3-4000 Hz frequency range: f
- Maximum load capacity:180 WMAX
- Nominal load (P): 100WRMS
- Avg. Sound pressure (1W/m): 90 dB
- Suspension compliance (cms): 1.06 mm/N
- Moved mass (MMS): 24.7 g
- Mechanical quality (Qms): 3.06
- Electrical quality (Qes): 0.46
- Total quality (Qts): 0.40
- Equivalent volume (Vas): 80 l
- Dc resistance (Re): 6.1 ohm
- Power factor (BxL): 7,63 Tm
- Schwingspulenind. (Le): 0.9 mH
- Voice coil diameter: diameter. 37 mm
- Voice coil former: Aluminum
- Linear excursion (Xmax): +/- 5.5 mm
- Eff. Cone area (sd): 232 cm2
- Magnet weight: 550 g
- Weight: 1.83 kg
- Product type
Subwoofer
- Speaker size (inch)
8 inch
- Speaker size (cm)
20.32 cm
- RMS capacity
100 W
- Max. load
180 W
- Min. frequency
3 Hz
- Max. frequency
4000 Hz
- Impedance
8 Ω
- Sound pressure
90 dB
- Recess diameter
19.4 cm
- Recess depth
94 mm
- Weight
1.8 kg
- Features
2-way
- Frequency range
3 Hz - 4000 Hz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1332688 Monacor SPH-220HQ 8 inch 20.32 cm Subwoofer 100 W 8 Ω 2-way
Description
Features
- High-quality hi-fi chassis for ultimate sound demands. For decades, the well-known and successful chassis of the SPH and MSH series now with innovative cast aluminum baskets, behind-ventilated centring spiders and optimized parameter sets. High-quality Hi-Fi woofer, 180WMAX, 100WRMS, 8 Ohm
- 200-mm woofer (8")
- Further development of the classic SPH-212
- Die-cast basket
- Back-ventilated spider and pole core bore for minimal mechanical losses
- High-quality, low resonance, coated paper diaphragm
- Low-Loss-rubber surround
- Wide range and linear transmission range
- Ideal in 3-way systems and also in classic 2-way systems in the application range up to over 2000 HzHobby hi-fi 04/2013 sound excellent, low-bass immense and level. The Frequency Response shines with perfect linearity. The SPH-220 HQ allows this exceptionally sovereign transmission behavior even the use of a sound ideal frequency point of the first order.
- This text is machine translated.
