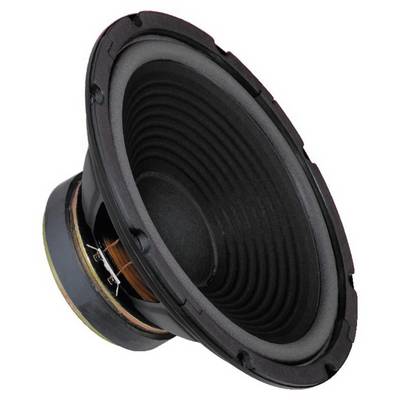

Monacor SP-300P 12 inch 31 cm Subwoofer 100 W 8 Ω
EAN:
Part number:
Item no:
Number
Total (€ 100.83 / piece)
€ 100.83
plus VAT.
Only 10 Piece(s) available
Technical specifications
- Impedance (Z): 8 Ohm
- Resonant frequency (fs): 30 Hz
- Max. 3-4000 Hz frequency range: f
- Maximum capacity 200 WMAX
- Nominal load (P): 100WRMS
- Avg. Sound pressure (1W/m): 96 dB
- Suspension compliance (cms): 0.77 mm/N
- Moved mass (MMS): 42 g
- Mechanical quality (Qms): 1.74
- Electrical quality (Qes): 0.37
- Total quality (Qts): 0.31
- Equivalent volume (Vas): 266l
- Dc resistance (Re): 6.5 ohm
- Power factor (BxL): 11.7 Tm
- Schwingspulenind. (Le): 0.8 mH
- Voice coil diameter: 50mm
- Voice coil former: Aluminum
- Linear excursion (Xmax): +/-2.5 mm
- Eff. Cone area (sd): 495 cm2
- Magnet weight: 1.2 kg
- Weighs 4.1 kg.
- Product type
Subwoofer
- Speaker size (inch)
12 inch
- Speaker size (cm)
31 cm
- RMS capacity
100 W
- Max. load
200 W
- Min. frequency
30 Hz
- Max. frequency
4000 Hz
- Impedance
8 Ω
- Sound pressure
96 dB
- Recess diameter
27.5 cm
- Recess depth
12.7 cm
- Weight
4.1 kg
- Frequency range
30 Hz - 4000 Hz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1332588 Monacor SP-300P 12 inch 31 cm Subwoofer 100 W 8 Ω
Description
Features
- Woofer
- Pole core bore
- Stable paper membrane for resilient bass playback
- This text is machine translated.
