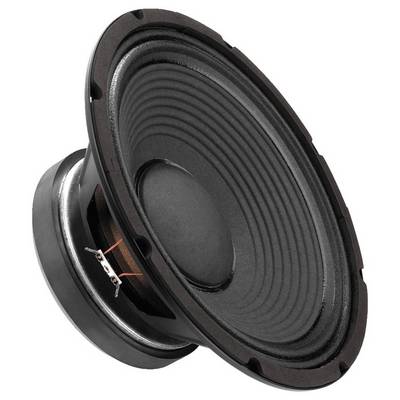

Monacor SP-12/200PA 12 inch 30.48 cm Subwoofer 200 W 8 Ω
EAN:
Part number:
Item no:
Number
Total (€ 121.84 / piece)
€ 121.84
plus VAT.
Only 10 Piece(s) available
Highlights & Details
IMG Stage Line SP -12/200 PA PA-mid-woofer
- High-quality loudspeaker chassis
- For universal applications on stage and in professional DJ-area.
- Excellent workmanship and optimum technical data for powerful bass reflex speakers
- This text is machine translated.
Technical specifications
- Impedance (Z): 8 Ohm
- Resonant frequency (fs): 45 Hz
- Max. 3-5000 Hz frequency range: f
- Maximum load capacity 400 WMAX
- Nominal load (P): 200WRMS
- Avg. Sound pressure (1W/m): 100 dB
- Suspension compliance (cms): 0.29 mm/N
- Moved mass (MMS): 43 g
- Mechanical quality (Qms): 5.20
- Electrical quality (Qes): 0.35
- Total quality (Qts): 0.33
- Equivalent volume (Vas): 114 l
- Dc resistance (Re): 6.8 ohm
- Power factor (BxL): 15.4 Tm
- Schwingspulenind. (Le): 1.2 mH
- Voice coil diameter: 78 mm
- Kapton voice coil carrier:
- Linear excursion (Xmax): +/-4 mm
- Eff. Cone area (sd): 531 cm2
- Magnet weight: 1.8 kg
- Weight: 6 kg.
- Product type
Subwoofer
- Speaker size (inch)
12 inch
- Speaker size (cm)
30.48 cm
- RMS capacity
200 W
- Max. load
400 W
- Min. frequency
45 Hz
- Max. frequency
5000 Hz
- Impedance
8 Ω
- Sound pressure
100 dB
- Recess diameter
28 cm
- Recess depth
11.5 cm
- Weight
6 kg
- Frequency range
45 Hz - 5000 Hz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1332559 Monacor SP-12/200PA 12 inch 30.48 cm Subwoofer 200 W 8 Ω
Description
Features
- PA-mid-woofer
- Very high degree of efficiency and perfect technical data for use in compact full range speakers
- Can be perfectly combined with mid-high tone horns
