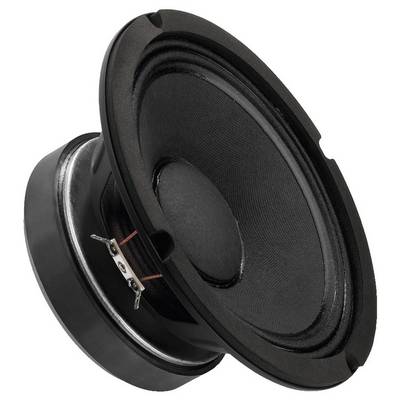

Monacor SP-8/150PA 8 inch 20.32 cm Mid-range speaker 150 W 8 Ω
EAN:
Part number:
Item no:
Number
Total (€ 63.86 / piece)
€ 63.86
plus VAT.
Only 10 Piece(s) available
Technical specifications
- Impedance (Z): 8 Ohm
- Resonant frequency (fs): 88 Hz
- Max. 3-8000 Hz frequency range: f
- Maximum capacity 300 WMAX
- Nominal load (P): 150WRMS
- Avg. Sound pressure (1W/m): 96 dB
- Suspension compliance (cms): 0.16 mm/N
- Moved mass (MMS): 20 g
- Mechanical quality (Qms): 4.12
- Electrical quality (Qes): 0.48
- Total quality (Qts): 0.43
- Equivalent volume (Vas): 12 l
- Dc resistance (Re): 6.9 ohm
- Power factor (BxL): 12.6 Tm
- Schwingspulenind. (Le): 0.6 mH
- Voice coil diameter: 50mm
- Kapton voice coil carrier:
- Linear excursion (Xmax): +/-1,25 mm
- Eff. Cone area (sd): 219 cm 2
- Magnet weight: 1.1 kg
- Weight: 3 kg.
- Product type
Mid-range speaker
- Speaker size (inch)
8 inch
- Speaker size (cm)
20.32 cm
- RMS capacity
150 W
- Max. load
300 W
- Min. frequency
3 Hz
- Max. frequency
8000 Hz
- Impedance
8 Ω
- Sound pressure
96 dB
- Recess diameter
18.5 cm
- Recess depth
98 mm
- Weight
3 kg
- Frequency range
3 Hz - 8000 Hz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1332630 Monacor SP-8/150PA 8 inch 20.32 cm Mid-range speaker 150 W 8 Ω
Description
Features
- PA-mid-woofer, 300WMAX, 150WRMS, 8 Ohm
- Good Average Efficiency
- Broadband transmission behavior in mid-range applications
- This text is machine translated.
