Name: Vogt Verbindungstechnik 3656ah Ring terminal + heatshrink Cross section (max.)=6 mm² Hole Ø=5.3 mm Partially insulated Y
Brand: Vogt Verbindungstechnik
SKU: 735588
Availability: InStock

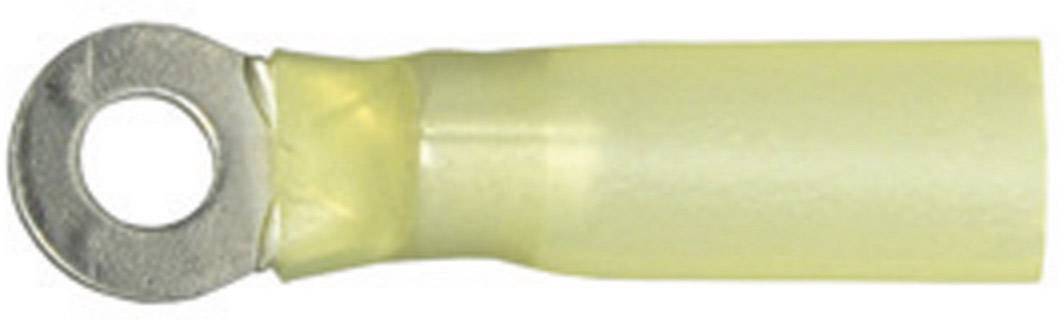

Yellow cable lug with round metal end for electrical connections.

Product type

Ring terminal

Thread size

Hole Ø

5.3 mm

Insulation type

Partially insulated

Content

1 pc(s)

Fast track dispatch on Fri 16 Oct

145 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 5

Total (€ 0.77 / piece)

€ 0.98

-21 %

€ 3.85

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

With heat shrink tubing ring connector

100% watertight

Our service for you

Technical specifications

Product type: Ring terminal

Thread size: M5

Hole Ø: 5.3 mm

Insulation type: Partially insulated

Factory colour: Yellow

Content: 1 pc(s)

Contact material: Cathode copper, tin plated

Manufacturer part #: 3656ah

Type: 3656ah

AWG max.: 10

AWG (min.): 12

max. cross section: 6 mm²

Min. cross section: 4 mm²

Insulation material: HDPE

Cross-section range: 4 - 6 mm²

RoHS-compliant: Yes

Features: + heatshrink

Support sleeve: No

Temperature range: -10 - +105 °C

Insulation: HDPE

Material (details): Tin-plated electrolytic copper

Shrink temperature: +150 °C

Cross section: 4 - 6 mm²

Voltage: 600 V

Size: M5

Variants(All information include VAT, plus shipping costs)

Factory colour

Thread size

max. cross section

Hole Ø

Min. cross section

Vogt Verbindungstechnik 3656ah Ring terminal + heatshrink Cross section (max.)=6 mm² Hole Ø=5.3 mm Partially insulated Yellow 1 pc(s)

Item no:735588

Fast track dispatch on Fri 16 Oct

145 Piece(s)Conrad Electronic

This article

Yellow

6 mm²

5.3 mm

4 mm²

Piece(s)

Minimum order quantity: 5

Multiple: 1

€ 0.77^*

Vogt Verbindungstechnik 3614ah Ring terminal + heatshrink Cross section (max.)=1 mm² Hole Ø=4.3 mm Partially insulated Red 1 pc(s)

Item no:735351

Fast track dispatch on Fri 16 Oct

282 Piece(s)Conrad Electronic

Red

1 mm²

4.3 mm

0.50 mm²

Piece(s)

Minimum order quantity: 7

Multiple: 1

€ 0.47^*

Vogt Verbindungstechnik 3616ah Ring terminal + heatshrink Cross section (max.)=1 mm² Hole Ø=5.3 mm Partially insulated Red 1 pc(s)

Item no:735375

Fast track dispatch on Fri 16 Oct

333 Piece(s)Conrad Electronic

Red

1 mm²

5.3 mm

0.50 mm²

Piece(s)

Minimum order quantity: 7

Multiple: 1

€ 0.45^*

Vogt Verbindungstechnik 3635ah Ring terminal + heatshrink Cross section (max.)=2.50 mm² Hole Ø=4.3 mm Partially insulated Blue 1 pc(s)

Item no:735459

Fast track dispatch on Fri 16 Oct

344 Piece(s)Conrad Electronic

Blue

2.50 mm²

4.3 mm

1.50 mm²

Piece(s)

Minimum order quantity: 7

Multiple: 1

€ 0.52^*

Vogt Verbindungstechnik 3637ah Ring terminal + heatshrink Cross section (max.)=2.50 mm² Hole Ø=5.3 mm Partially insulated Blue 1 pc(s)

Item no:735480

Fast track dispatch on Fri 16 Oct

178 Piece(s)Conrad Electronic

Blue

2.50 mm²

5.3 mm

1.50 mm²

Piece(s)

Minimum order quantity: 7

Multiple: 1

€ 0.37^*

Vogt Verbindungstechnik 3639ah Ring terminal + heatshrink Cross section (max.)=2.50 mm² Hole Ø=6.5 mm Partially insulated Blue 1 pc(s)

Item no:735499

Fast track dispatch on Fri 16 Oct

360 Piece(s)Conrad Electronic

Blue

2.50 mm²

6.5 mm

1.50 mm²

Piece(s)

Minimum order quantity: 7

Multiple: 1

€ 0.59^*

Vogt Verbindungstechnik 3645ah Ring terminal + heatshrink Cross section (max.)=2.50 mm² Hole Ø=8.4 mm Partially insulated Blue 1 pc(s)

Item no:735524

Fast track dispatch on Fri 16 Oct

13 Piece(s)Conrad Electronic

Blue

2.50 mm²

8.4 mm

1.50 mm²

Piece(s)

Minimum order quantity: 3

Multiple: 1

€ 0.59^*

Vogt Verbindungstechnik 3647ah Ring terminal + heatshrink Cross section (max.)=2.50 mm² Hole Ø=10.5 mm Partially insulated Blue 1 pc(s)

Item no:735550

Fast track dispatch on Fri 16 Oct

13 Piece(s)Conrad Electronic

Blue

M10

2.50 mm²

10.5 mm

1.50 mm²

Piece(s)

Minimum order quantity: 7

Multiple: 1

€ 0.43^*

Vogt Verbindungstechnik 3652ah Ring terminal + heatshrink Cross section (max.)=6 mm² Hole Ø=4.3 mm Partially insulated Yellow 1 pc(s)

Item no:735573

Fast track dispatch on Fri 16 Oct

195 Piece(s)Conrad Electronic

Yellow

6 mm²

4.3 mm

4 mm²

Piece(s)

Minimum order quantity: 5

Multiple: 1

€ 0.84^*

Vogt Verbindungstechnik 3660ah Ring terminal + heatshrink Cross section (max.)=6 mm² Hole Ø=6.5 mm Partially insulated Yellow 1 pc(s)

Item no:735605

Fast track dispatch on Fri 16 Oct

88 Piece(s)Conrad Electronic

Yellow

6 mm²

6.5 mm

4 mm²

Piece(s)

Minimum order quantity: 5

Multiple: 1

€ 0.83^*

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 735588 Vogt Verbindungstechnik 3656ah Ring terminal + heatshrink Cross section (max.)=6 mm² Hole Ø=5.3 mm Partially insulated Y

Description

Internally coated with self-adhesive. The stripped wires are simply inserted, crimped with a commercially available crimping tool and heated with a hot air blower until the adhesive runs out sideways. Resistant to petrol, oil, salt water, battery acid and cleaning agents.
