Name: Vogt Verbindungstechnik 3847.60 Blade connector Connector width: 6.3 mm Connector thickness: 0.8 mm 45 ° Not insulated M
Brand: Vogt Verbindungstechnik
SKU: 732850
Availability: InStock

Metal angle bracket with two holes for fastening, rectangular shape, glossy surface. Suitable for mounting purposes.

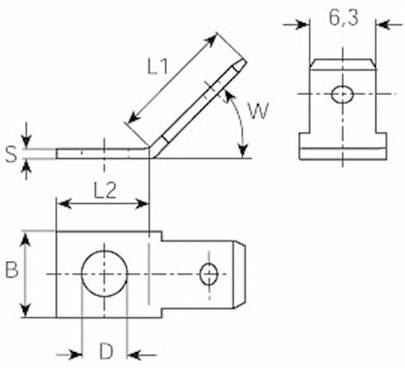

Technical drawing of a metal angle with length and width specifications. Shows dimensions L1, L2, W, D, S, W, and 6.3.

1/2

Image similar

Product type

Blade connector

Connector width

6.3 mm

Connector thickness

0.8 mm

Insulation type

Not insulated

Connection angle

45 °

Datasheet (PDF)

Fast track dispatch on Thu 15 Oct

10255 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 30

Total (€ 0.10 / piece)

€ 0.14

-29 %

€ 3.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Spade connectors, screw-in or riveted

Metal
6.3 mm x 0.8 mm
-

Our service for you

Technical specifications

Product type: Blade connector

Factory colour: Metal

Connector width: 6.3 mm

Connector thickness: 0.8 mm

Support sleeve: No

Insulation type: Not insulated

Hole Ø: 3.2 mm

Connection angle: 45°

Contact material: Brass

Content: 1 pc(s)

Manufacturer part #: 3847.60

Type: 3847.60

RoHS-compliant: Yes

Size: 6.3 x 0.8 mm

Connection length: 10.5 mm

Material (details): Bronze Ms

Type: 6.3 x 0.8

Cross section: -

Connection: -

Surface: Polished
