Vogt Verbindungstechnik 389908 Blade receptacle Connector width: 2.8 mm Connector thickness: 0.8 mm 180 ° Partially insu
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
15
-
€ 0.21
45
10% = € 0.02
€ 0.19
75
14% = € 0.03
€ 0.18
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 15
Total (€ 0.21 / piece)
€ 0.23
-9 %
€
Highlights & Details
Vogt Verbindungstechnik 389908 Blade receptacle Connector width: 2.8 mm Connector thickness: 0.8 mm 180 ° Partially insulated Blue 1 pc(s)
- Blue
- 2.8 mm x 0.8 mm
- 1.50 mm² - 2.50 mm²
Technical specifications
- (Form A DIN 46245 UL-No. E235796)
- Factory colour
Blue
- Contact material
Brass tin plated
- Type
sleeve
- Content
1 pc(s)
- Dim
- Cross-section range
1.50 - 2.50 mm²
- Size
2.8 x 0.8 mm
- Insulation
Partially insulated
- Insulation type
Partially insulated
- Manufacturer part #
389908
- Type
389908
- Material (details)
Brass, tin-plated
- Type
2.8 x 0.8 mm
- max. cross section
2.50 mm²
- Connector thickness
0.8 mm
- Connector width
2.8 mm
- Insulation material
PVC
- Connection angle
180°
- Cross section
1.5 - 2.5 mm²
- Connection
-
- Min. cross section
1.50 mm²
- Support sleeve
Yes
- Product type
Blade receptacle
Variants(All information is without VAT, plus shipping costs)
Factory colour
Support sleeve
Vogt Verbindungstechnik 389908 Blade receptacle Connector width: 2.8 mm Connector thickness: 0.8 mm 180 ° Partially insulated Blue 1 pc(s)
This article
Blue
Yes
Minimum order quantity: 15
Multiple: 1
€ 0.21*
Vogt Verbindungstechnik 3905S Blade receptacle Connector width: 4.8 mm Connector thickness: 0.8 mm 180 ° Partially insulated Blue 1 pc(s)
Blue
No
Minimum order quantity: 20
Multiple: 1
€ 0.13*

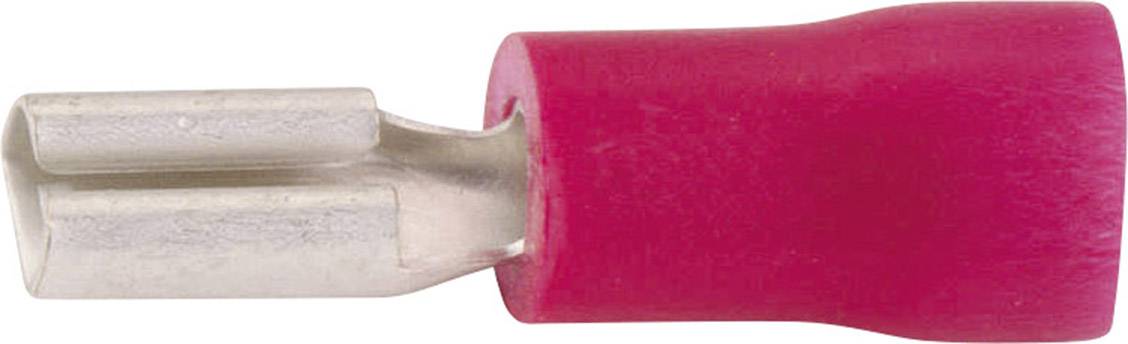

Vogt Verbindungstechnik 390008S-1 Blade receptacle Connector width: 2.8 mm Connector thickness: 0.8 mm 180 ° Partially insulated Red 1 pc(s)
Red
No
Minimum order quantity: 20
Multiple: 1
€ 0.13*
Vogt Verbindungstechnik 3903S-1 Blade receptacle Connector width: 6.3 mm Connector thickness: 0.8 mm 180 ° Partially insulated Red 1 pc(s)
Red
No
Minimum order quantity: 30
Multiple: 1
€ 0.09*
Vogt Verbindungstechnik 3902S Blade receptacle Connector width: 4.8 mm Connector thickness: 0.8 mm 180 ° Partially insulated Red 1 pc(s)
Red
No
Minimum order quantity: 30
Multiple: 1
€ 0.09*
Vogt Verbindungstechnik 389905S Blade receptacle Connector width: 2.8 mm Connector thickness: 0.5 mm 180 ° Partially insulated Blue 1 pc(s)
Blue
No
Minimum order quantity: 20
Multiple: 1
€ 0.39*

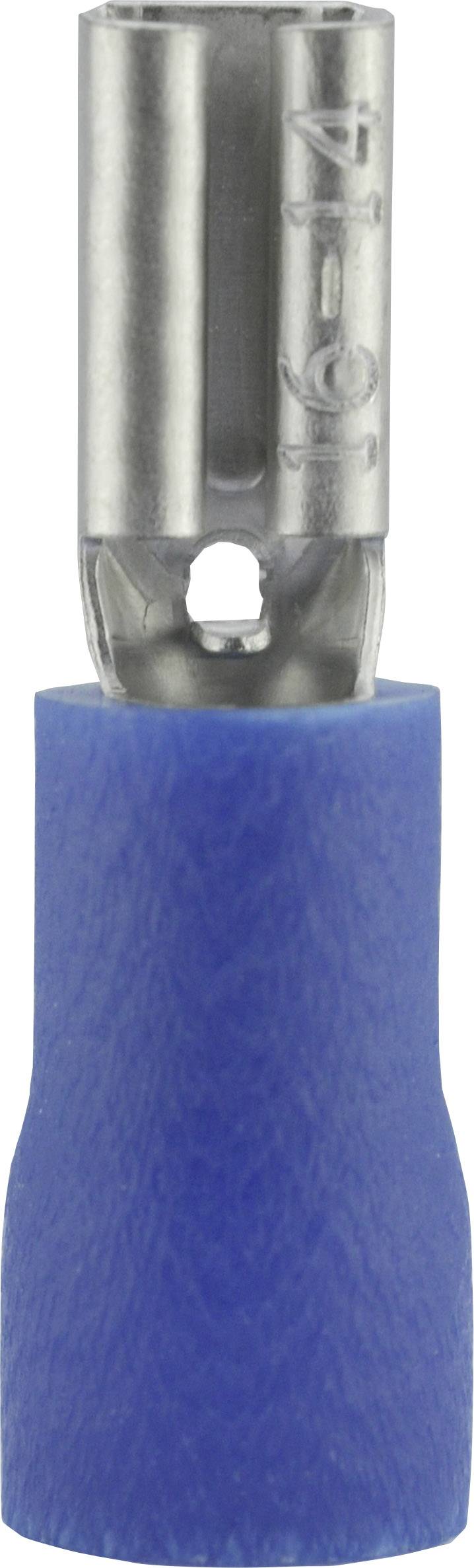

Vogt Verbindungstechnik 389908S Blade receptacle Connector width: 2.8 mm Connector thickness: 0.8 mm 180 ° Partially insulated Blue 1 pc(s)
Blue
No
Minimum order quantity: 20
Multiple: 1
€ 0.09*
Vogt Verbindungstechnik 390005S Blade receptacle Connector width: 2.8 mm Connector thickness: 0.5 mm 180 ° Partially insulated Red 1 pc(s)
Red
No
Minimum order quantity: 20
Multiple: 1
€ 0.13*
Vogt Verbindungstechnik 3901S Blade receptacle Connector width: 4.8 mm Connector thickness: 0.5 mm 180 ° Partially insulated Red 1 pc(s)
Red
No
Minimum order quantity: 20
Multiple: 1
€ 0.09*
Vogt Verbindungstechnik 3904S Blade receptacle Connector width: 4.8 mm Connector thickness: 0.5 mm 180 ° Partially insulated Blue 1 pc(s)
Blue
No
Minimum order quantity: 20
Multiple: 1
€ 0.09*
