Vogt Verbindungstechnik 3912h Blade terminal + heatshrink Connector width: 6.3 mm Connector thickness: 0.8 mm 180 ° Part
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
3
-
€ 0.81
9
9% = € 0.07
€ 0.74
15
12% = € 0.10
€ 0.71
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 3
Total (€ 0.81 / piece)
€
Highlights & Details
Flat plug with partially insulated, heat-shrink sleeve
- 100% watertight
Technical specifications
- Shrink temperature: +150 °C
- Factory colour
Yellow
- Contact material
Brass tin plated
- Manufacturer part #
3912h
- Type
3912h
- max. cross section
6 mm²
- Min. cross section
4 mm²
- Content
1 pc(s)
- Cross-section range
4 - 6 mm²
- Size
6.3 x 0.8 mm
- Insulation
HDPE
- Features
+ heatshrink
- Insulation type
Partially insulated
- Material (details)
Tin-plated brass
- Type
6.3 x 0.8 mm
- Connector thickness
0.8 mm
- Connector width
6.3 mm
- Insulation material
PE
- Connection angle
180°
- Shrink temperature
+150 °C
- Cross section
4 - 6 mm²
12 - 10
- Temperature range
-10 - +105 °C
- RoHS-compliant
Yes
- Support sleeve
Yes
- Product type
Blade terminal
Variants(All information is without VAT, plus shipping costs)
Factory colour
Vogt Verbindungstechnik 3912h Blade terminal + heatshrink Connector width: 6.3 mm Connector thickness: 0.8 mm 180 ° Partially insulated Yellow 1 pc(s)
This article
Yellow
Minimum order quantity: 3
Multiple: 1
€ 0.81*
Vogt Verbindungstechnik 3911h Blade terminal + heatshrink Connector width: 6.3 mm Connector thickness: 0.8 mm 180 ° Partially insulated Blue 1 pc(s)
Blue
Minimum order quantity: 5
Multiple: 1
€ 1.08*
Vogt Verbindungstechnik 3910h Blade terminal + heatshrink Connector width: 6.3 mm Connector thickness: 0.8 mm 180 ° Partially insulated Red 1 pc(s)
Red
Minimum order quantity: 5
Multiple: 1
€ 0.57*
Documents & Downloads
Datasheet
Datasheet 735893 Vogt Verbindungstechnik 3912h Blade terminal + heatshrink Connector width: 6.3 mm Connector thickness: 0.8 mm 180 ° Part
Description
Internally coated with self-adhesive. The stripped wires are simply inserted, crimped with a commercially available crimping tool and heated with a hot air blower until the adhesive runs out sideways. Resistant to petrol, oil, salt water, battery acid and cleaning agents.
Frequently Bought Together
(*All information is plus legal VAT) This article
Vogt Verbindungstechnik 3912h Blade terminal + heatshrink Connector width: 6.3 mm Connector thickness: 0.8 mm 180 ° Part
Conrad Electronic
€ 2.43*

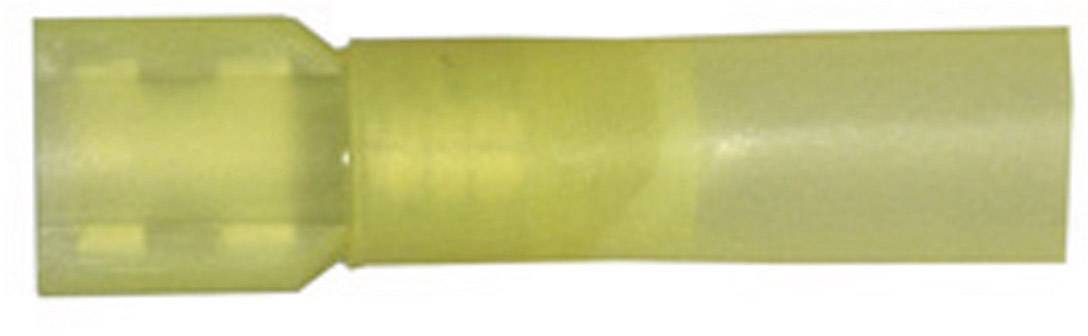

Vogt Verbindungstechnik 3967sh Blade receptacle Connector width: 6.3 mm Connector thickness: 0.8 mm Insulated Yellow 1 p
