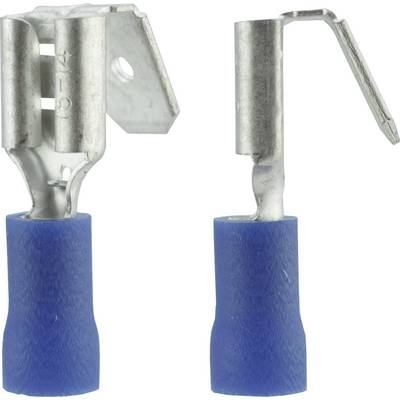

Vogt Verbindungstechnik 3926 Blade receptacle + branch joint Connector width: 6.3 mm Connector thickness: 0.8 mm 180 ° P
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 0.37
30
8% = € 0.03
€ 0.34
50
14% = € 0.05
€ 0.32
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 0.37 / piece)
€
Highlights & Details
Vogt Verbindungstechnik 3926 Blade receptacle + branch joint Connector width: 6.3 mm Connector thickness: 0.8 mm 180 ° Partially insulated Blue 1 pc(s)
- Blue
- 6.3 mm x 0.8 mm
- 1.50 mm² - 2.50 mm²
Technical specifications
- Factory colour
Blue
- Contact material
Brass tin plated
- Type
(Shape A DIN 46245 UL-No. E235796))
- Content
1 pc(s)
- Dim
- Cross-section range
1.50 - 2.50 mm²
- Size
6.3 x 0.8 mm
- Insulation
PVC part-insulation
- Features
+ branch joint
- Insulation type
Partially insulated
- Manufacturer part #
3926
- Type
3926
- Material (details)
Brass, tin-plated
- Type
6.3 x 0.8
- max. cross section
2.50 mm²
- Connector thickness
0.8 mm
- Connector width
6.3 mm
- Insulation material
PVC
- Connection angle
180°
- Cross section
1.5 - 2.5 mm²
- Connection
-
- Min. cross section
1.50 mm²
- Support sleeve
Yes
- Product type
Blade receptacle
Documents & Downloads
Datasheet
Datasheet 737073 Vogt Verbindungstechnik 3926 Blade receptacle + branch joint Connector width: 6.3 mm Connector thickness: 0.8 mm 180 ° P
