VOLTCRAFT DSO-111 Digital 10 MHz 1-channel 100 MSa/s 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

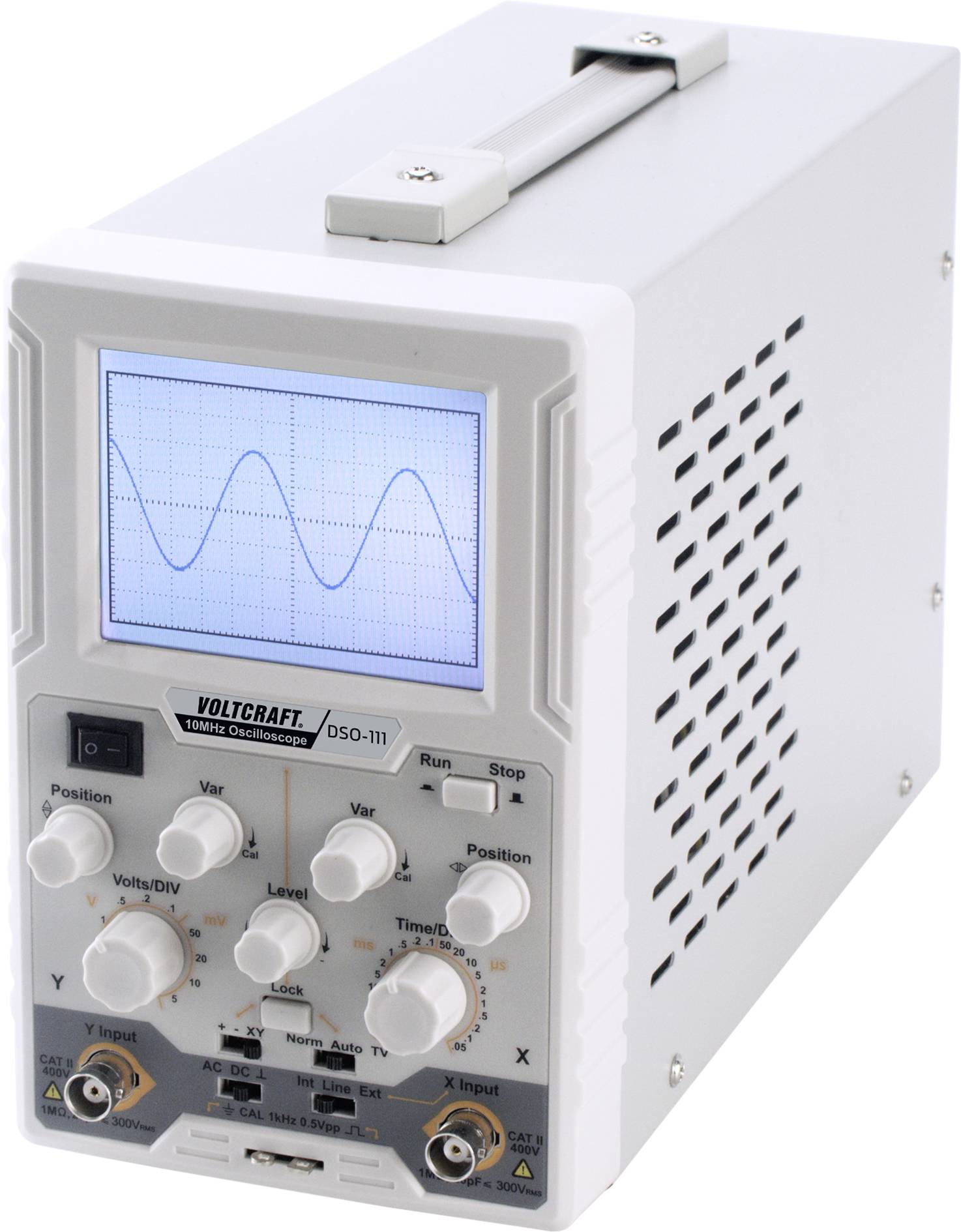

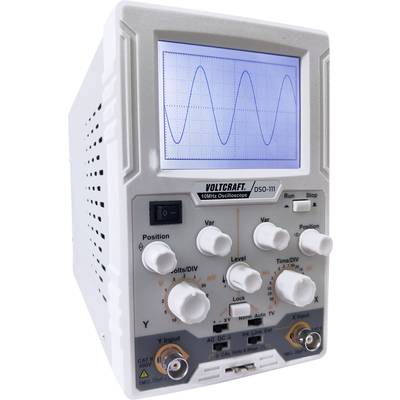

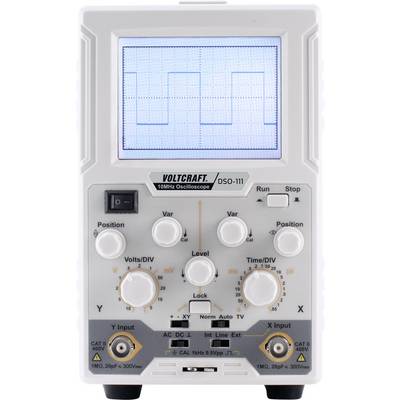

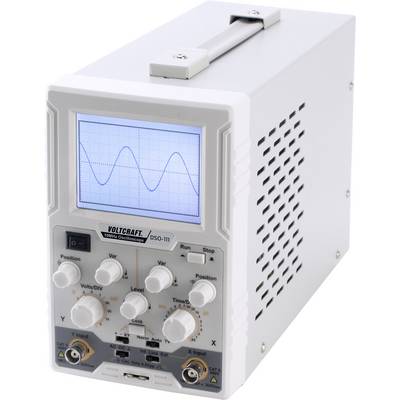

DSO-111 Digital Oscilloscope
- 10 MHz bandwidth, 1 channel

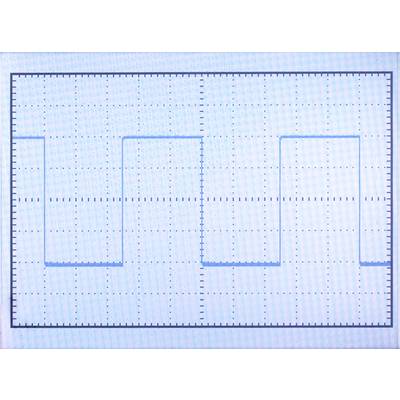

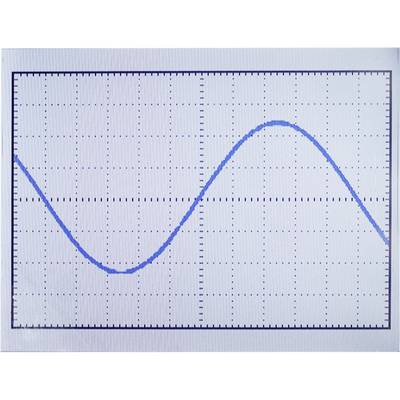

- 9.40 cm LCD colour screen
- Max. 100 MSa/s sampling rate
- Multi-level gray scale
Our service for you
Technical specifications
- Product type
Digital
- Bandwidth
10 MHz
- Channel sample rate
100 MSa/s
- Displays
Color LCD
- Screen size
9.398 cm
- Time base
0.05 µs/div - 0.1 s/div
Manufacturer's standards (no certificate)
- Reading category
CAT II 400 V
- Vertical deflection
5 mV/div - 10 mV
- Input impedance
1 MΩ ±2%
- Input coupling
DC, AC, GROUND
- Input voltage
400 V (DC+AC, PK-PK)

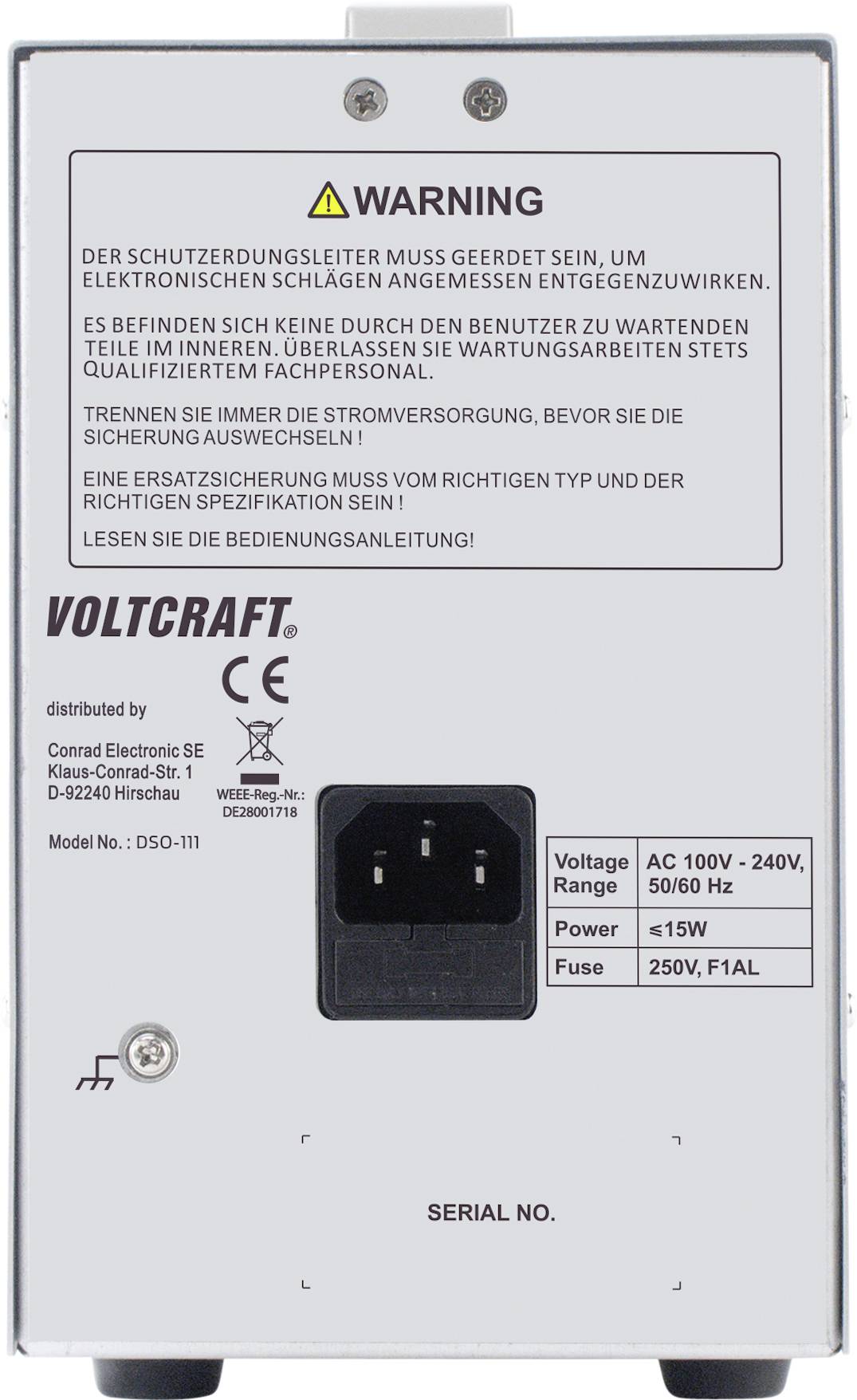

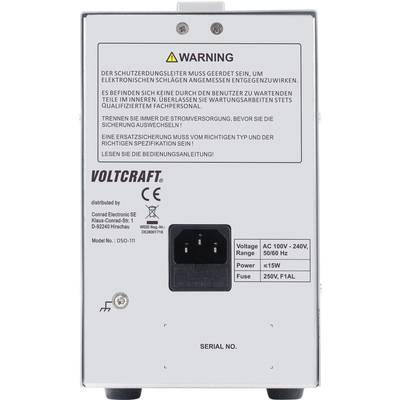

- Power supply (details)
100V-240V AC, 50/60Hz
- Dim
(L x W x H) 117 x 192 x 288 mm
- Weight
1.8 kg
- Width
192 mm
- Height
288 mm
- Length
117 mm
- Type
DSO-111
- Plastic free packaging
Plastic-free packaging
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2384768 VOLTCRAFT DSO-111 Digital 10 MHz 1-channel 100 MSa/s 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2384768 VOLTCRAFT DSO-111 Digital 10 MHz 1-channel 100 MSa/s 1 pc(s)
User & Safety Instructions 2384768 VOLTCRAFT DSO-111 Digital 10 MHz 1-channel 100 MSa/s 1 pc(s)
Conformity certificate
Conformity certificate 2384768 VOLTCRAFT DSO-111 Digital 10 MHz 1-channel 100 MSa/s 1 pc(s)
Warranty Terms
Warranty Terms 2384768 VOLTCRAFT DSO-111 Digital 10 MHz 1-channel 100 MSa/s 1 pc(s)
Description

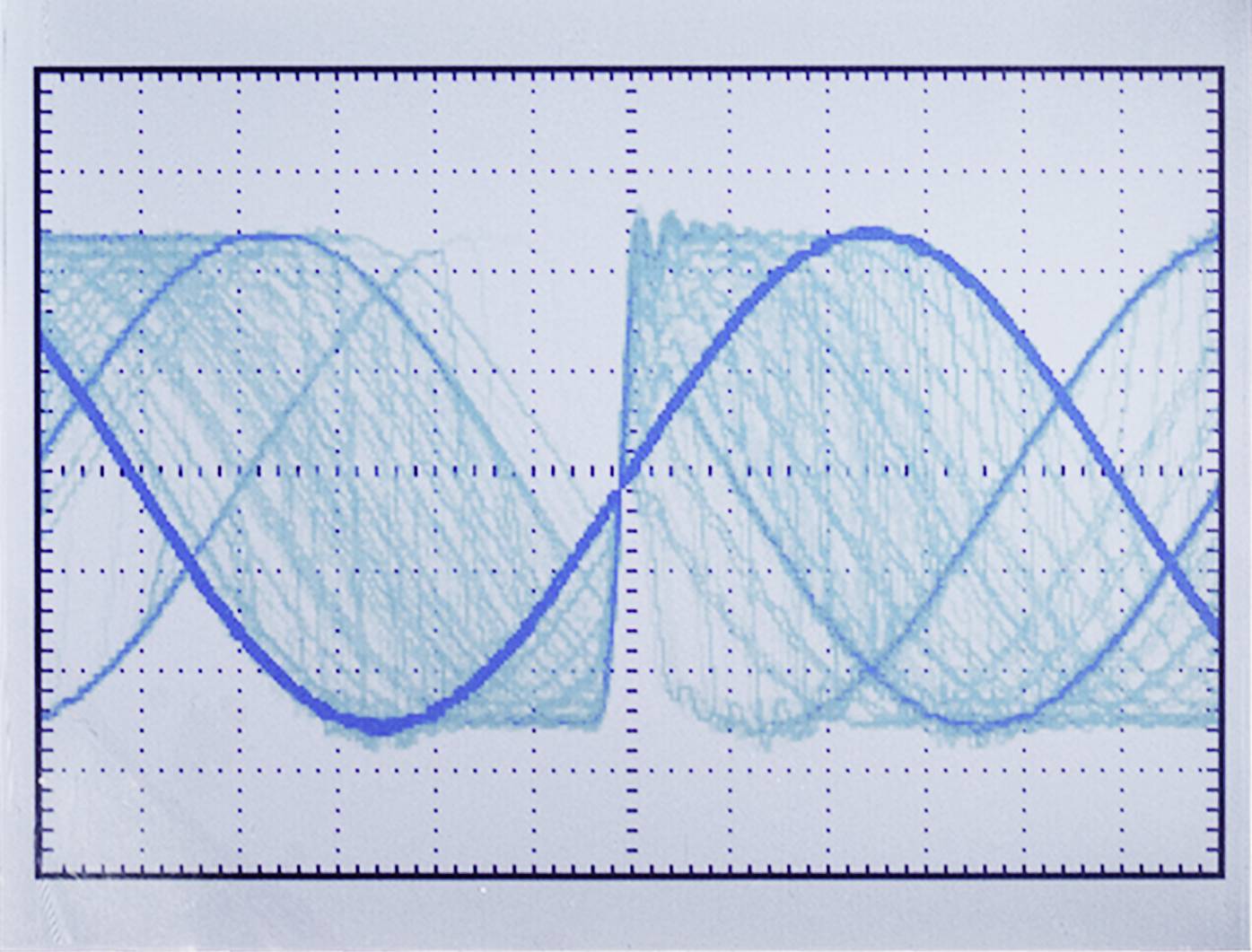

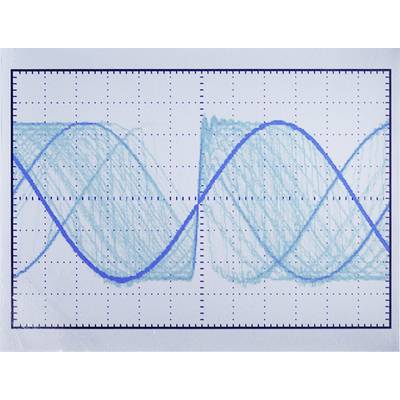

High refresh rateThe DSO-111 SE digital oscilloscope is characterized primarily by the high update rate of 130,000 wfms/s and the low power consumption of less than 15 watts. The available channel operates at a bandwidth of 10 MHz and the sampling rate is at a maximum of 100 MS/s. The DSO-111 SE Trigger Lock supports more accurate measurement results displayed on a 9.40 cm LCD color screen.Everything was part of itIn addition to the oscilloscope power cable, probes with adjustment tools, a replacement fuse and a quick start guide are included in the delivery. A user manual in English is available for download.
This text is machine translated.
This text is machine translated.
Features
- 130,000 wfms/s refresh rate
- Supports trigger lock
- Low power consumption: < 15 W

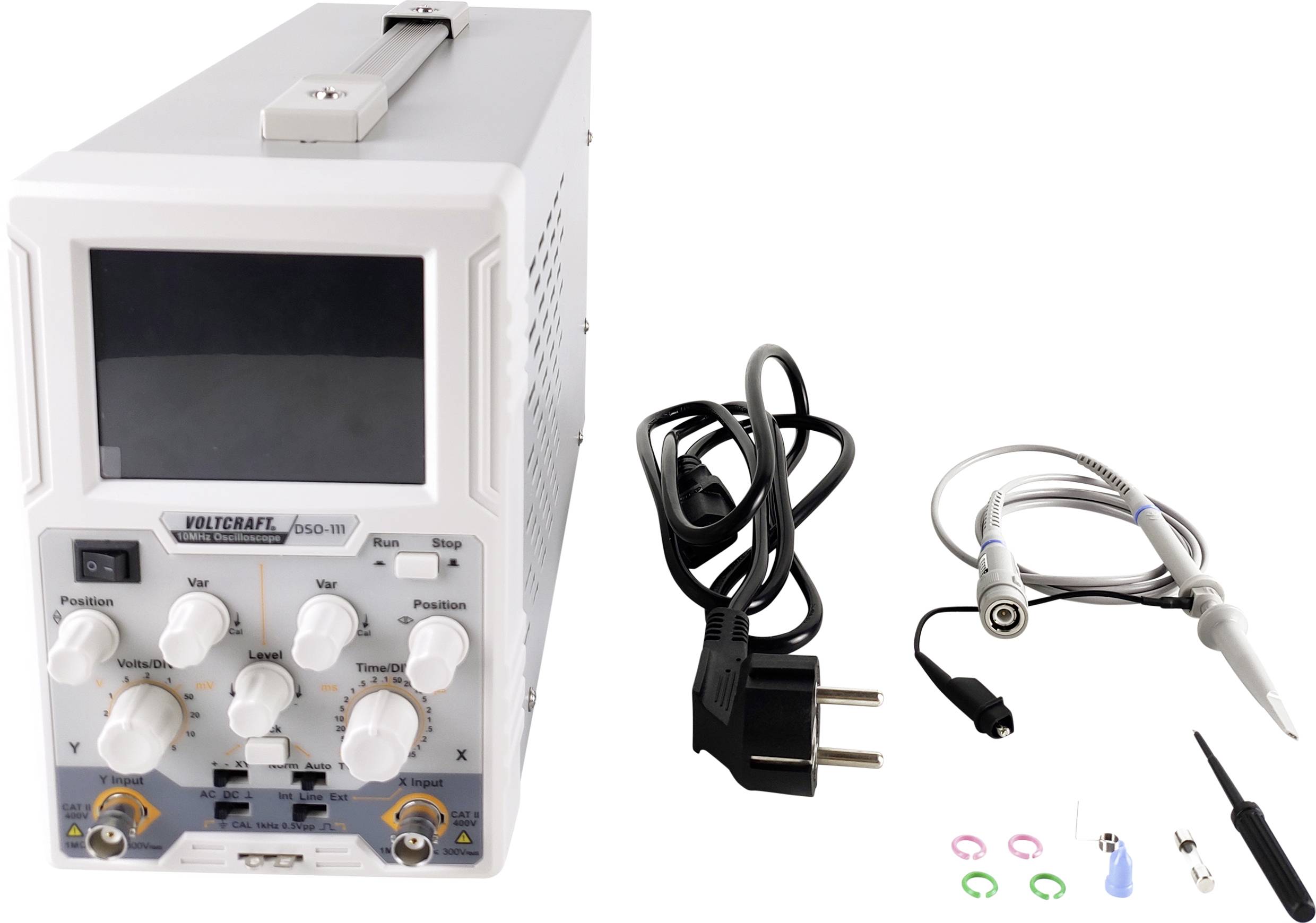

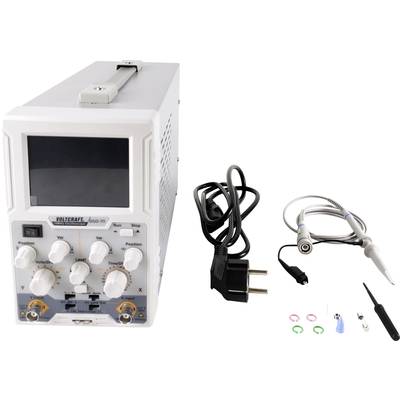

Scope of delivery
- Oscilloscope
- Power cord
- Probes
- Probe adjustment tool
- 1 x Spare fuse
- Safety hint sheet
- Quick guide
- Operation instructions in English (as download)
