Buy VOLTCRAFT DSO-6204F Digital 200 MHz 4-channel 1 GS/s 10 MP 8 Bit Digital storage (DSO), Function generator 1 pc(s)

Oscilloscope with digital display showing multiple waveform signals. Various control buttons and connection ports visible.

Digital oscilloscope displaying a two-channel sine curve with double-comb structure in blue, green and red on screen; control elements on the right.

A digital oscilloscope with a waveform displayed on the screen. It has multiple buttons and ports for controlling and analysing signals.

An oscilloscope displays two yellow, intersecting signal patterns. The control interface has various controls and buttons for settings.

Portable digital oscilloscope with four detachable probes, various cables and accessory parts for measuring data analysis.

A hand is holding a portable oscilloscope with a black screen. The device shows multiple control elements and colourful connectors on the front panel.

'Oscilloscope screen shows a single voltage pulse with an amplitude of 2 V at 1 MHz'

'Oscilloscope display shows a periodic rectangular signal with 1 MHz frequency. Vertical axis: Voltage, Horizontal axis: Time.'

Oscilloscope screen shows a sinusoidal wave with constant amplitude and frequency. X-axis: Time, Y-axis: Voltage.

Oscilloscope image of a sinusoidal signal with yellow waveform. Horizontal axis shows time (0-20 ns), vertical axis voltage (0-100 mV).

Oscilloscope display of a square wave signal with menu for selecting averages. Frequency: 100 kHz, Average: 16, Amplitude: 2 V.

'Oscilloscope display shows a periodic digital signal with irregular spikes at the beginning, followed by regular rectangular pulses.'

'Oscilloscope display: Yellow sine wave at 902.5 Hz, amplitude of 7.8V, period of approximately 1.108 ms. Coordinates and time measurement visible.'

Oscilloscope display with two waveforms. Top: rectangular waveform, bottom: sine wave. Both in yellow, with time and voltage as axes.

Oscilloscope screen displays five sine waves in different colours, with the same frequency but varying amplitudes.

An oscilloscope display shows three wave signals. The top blue wave has the largest amplitude, the middle orange wave has a medium frequency, and the bottom green wave has the highest frequency.

Oscilloscope image with two wavy lines. The upper line is yellow, the lower line is blue. Delta values in a box in the bottom left: Δy 2.10V, Δx 1000ms. Frequency of both signals: 1000kHz.

Oscilloscope screen displays four different waveforms: sine waves at the top, square waves at the bottom, each with frequencies and time axis.

Oscilloscope display with three overlapping waveforms in yellow, blue and green. Shows frequency and amplitude of the signals.

'Three-Channel Oscilloscope Software: Upper wave shows sine wave, middle shows waveform with lower frequency, lower shows square wave.'

'Oscilloscope screen displays a Lissajous figure with intersecting curves in blue, yellow and red, illustrating amplitude and frequency differences.'

Oscilloscope with a black screen displaying a wave-shaped signal. Hand pointing at a wave. Device buttons and settings visible.

A hand is operating a digital oscilloscope and pointing to a wave-shaped display on the screen.

1/25

Our service for you

Datasheet (PDF)

13 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 1,234.45 / piece)

€

Report legal concerns

Highlights & Details

DIGITAL-OSCILLOSCOPE DSO-6204F

200 MHz Bandwidth
8" (20.32cm) 800 x 600 pixel multi-touch screen (smartphone-like zoom function)
Colour temperature mode
25 MHz DDS arbitrary waveform generator

Technical specifications

Mathematical operations: + - * / FFT Intg user-defined
Refresh rate: 45.000 wfms/s
Slew rate< 1.75 ns
SPI, I²C, RS232, and CAN bus decoder
Battery slot
Function generator: 25 MHz, 125 MSa/s, 14-bit vertical resolution
Waveforms: sine, square, ramp, pulse
Arbitrary functions: exponential, sin(x)/x, staircase, noise

Displays: LCD, 8 inch, 800*600pixels

Screen size: 20,32 cm (8") cm

Time base: 2 ns/div - 1000 s/div

Vertical deflection: 1 mV/div - 10 V/div

Input impedance: 1 MΩ

Input coupling: DC / AC / GND

Input voltage: 100-240V||50-60Hz||Vac

Power supply (details): 100-240V||50-60Hz||Vac

Dim: (L x W x H) 90 x 340 x 178 mm

Weight: 2674 g

Height: 178 mm

Length: 90 mm

Width: 340 mm

Display: LCD / 800 x 600 p

No. of analogue inputs: 4

: Manufacturer's standards (no certificate)

Interfaces: USB

Reading category: CAT II

Oscilloscope features: Digital storage (DSO)
Function generator

Type: DSO-6204F

Bandwidth: 200 MHz

Channel memory depth: 10 MP

Resolution: 8 Bit

Channel sample rate: 1 GS/s

Product type: Digital

Variants(All information is without VAT, plus shipping costs)

No. of analogue inputs

Calibrated to

Bandwidth

Oscilloscope features

VOLTCRAFT DSO-6204F Digital 200 MHz 4-channel 1 GS/s 10 MP 8 Bit Digital storage (DSO), Function generator 1 pc(s)

Item no:1673266

Fast track dispatch on Fri, 22 May

13 Piece(s)Conrad Electronic

This article

Manufacturer's standards (no certificate)

200 MHz

Digital storage (DSO)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,234.45^*

VOLTCRAFT DSO-6104F Digital 100 MHz 4-channel 1 GS/s 40000 KP 8 Bit Digital storage (DSO), Function generator 1 pc(s)

Item no:1673264

Fast track dispatch on Fri, 22 May

1 Piece(s)Conrad Electronic

Manufacturer's standards (no certificate)

100 MHz

Digital storage (DSO)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 592.44^*

VOLTCRAFT DSO-6102WIFI Digital 100 MHz 2-channel 1 GS/s 40000 KP 8 Bit Function generator, Multimeter functions, Digital storage (DSO) 1 pc(s)

Item no:1534604

Unavailable

Conrad Electronic

Manufacturer's standards (no certificate)

100 MHz

Function generator

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 390.76^*

VOLTCRAFT DSO-6084F Digital 80 MHz 4-channel 1 GS/s 40000 KP 8 Bit Digital storage (DSO), Function generator 1 pc(s)

Item no:1673262

Unavailable

Conrad Electronic

Manufacturer's standards (no certificate)

80 MHz

Digital storage (DSO)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 520.17^*

VOLTCRAFT DSO-6204F Digital Calibrated to (ISO standards) 200 MHz 1 GS/s 10000 KP 8 Bit Digital storage (DSO), Function generator 1 pc(s)

Item no:1975022

Unavailable

Conrad Electronic

ISO standards

200 MHz

Digital storage (DSO)

Set(s)

Minimum order quantity: 1

Multiple: 1

VOLTCRAFT DSO-6204F Digital Calibrated to (DAkkS standards) 200 MHz 1 GS/s 10000 KP 8 Bit Digital storage (DSO), Function generator 1 pc(s)

Item no:1975034

Unavailable

Conrad Electronic

DAkkS standards

200 MHz

Digital storage (DSO)

Set(s)

Minimum order quantity: 1

Multiple: 1

VOLTCRAFT DSO-6104F Digital Calibrated to (ISO standards) 100 MHz 1 GS/s 40000 KP 8 Bit Digital storage (DSO), Function generator 1 pc(s)

Item no:1975123

Unavailable

Conrad Electronic

ISO standards

100 MHz

Digital storage (DSO)

Set(s)

Minimum order quantity: 1

Multiple: 1

VOLTCRAFT DSO-6104F Digital Calibrated to (DAkkS standards) 100 MHz 1 GS/s 40000 KP 8 Bit Digital storage (DSO), Function generator 1 pc(s)

Item no:1975124

Unavailable

Conrad Electronic

DAkkS standards

100 MHz

Digital storage (DSO)

Set(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 1673266 VOLTCRAFT DSO-6204F Digital 200 MHz 4-channel 1 GS/s 10 MP 8 Bit Digital storage (DSO), Function generator 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1673266 VOLTCRAFT DSO-6204F Digital 200 MHz 4-channel 1 GS/s 10 MP 8 Bit Digital storage (DSO), Function generator 1 pc(s)

Conformity certificate

Conformity certificate 1673266 VOLTCRAFT DSO-6204F Digital 200 MHz 4-channel 1 GS/s 10 MP 8 Bit Digital storage (DSO), Function generator 1 pc(s)

Warranty Terms

Warranty Terms 1673266 VOLTCRAFT DSO-6204F Digital 200 MHz 4-channel 1 GS/s 10 MP 8 Bit Digital storage (DSO), Function generator 1 pc(s)

Download

Download 1673266 VOLTCRAFT DSO-6204F Digital 200 MHz 4-channel 1 GS/s 10 MP 8 Bit Digital storage (DSO), Function generator 1 pc(s)

Description

The DSO-6204F digital storage oscilloscope has been designed for R&D facilites, laboratories and service engineers. As usual, settings are adjustable using buttons or touchscreen. Zooming in or screen swiping works pretty much like when using a smarphone or tablet.

Colour temperature display
Recurring waveforms are colour-coded according to how often they are detected.

Bus decoder
Decodes SPI and I²C, RS232 and CAN-bus signals. Decoded values can be displayed in binary, decimal, Hex or ASCII format and compiled in event tables. Decoded CAN-bus signals are displayed in colour. This makes distinguishing between data, data length code and frame information much easier. CAN-Bus checksum errors are flagged by colour changes.

Data acquisition and processing
Readings and screen content can be transferred to and stored on a PC via USB, LAN, or Wi-Fi. When transfering data to USB memory, file names can be entered using the touchscreen.

Touch-control function generator
Settings of the 25 MHz function generator are selectable via buttons or via touchscreen. Available are sine, square, ramp and pulse waveforms. Moreover, the device comes with 46 additional arbitrary waveform presets including exponential, sine, staircase and noise. Also stores user-defined arbitrary waveforms.

Clone function
Oscilloscope input waveforms can be cloned and forwarded to the function generator. The section to be cloned is selected via touchscreen.

Battery power option

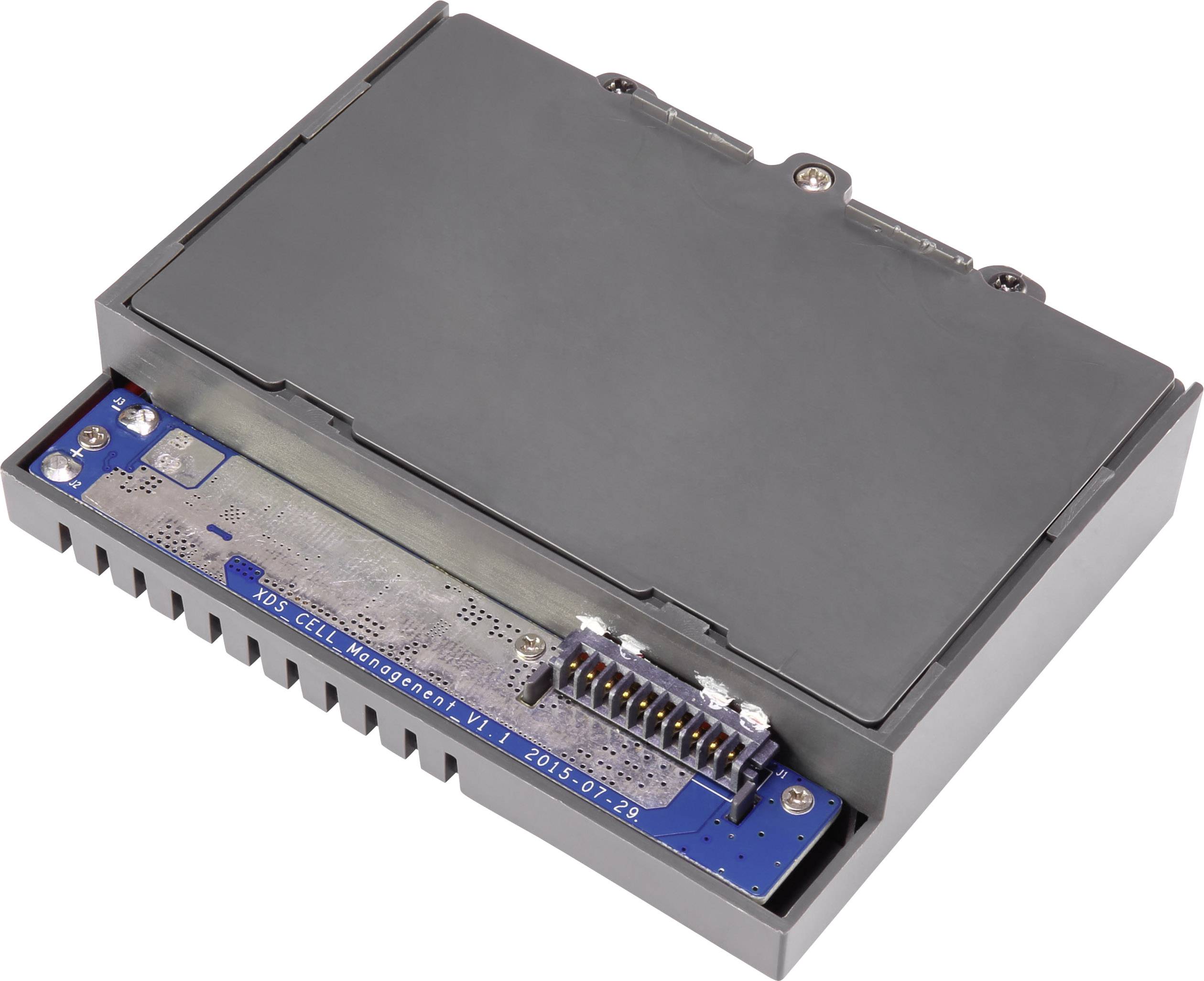

Using a Li-ion rechargeable battery (optional) significantly increases the range of uses. Opting for battery-power (optional) makes the oscilloscope a highly mobile and versatile tool. One battery charge enables 3 hours of continuous use. Under laboratory conditions, battery operation also acts as a galvanic isolator.
