VOLTCRAFT EML-50 PG test lead 4 mm plug 4 mm socket 50 m Green 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 58.82 / piece)
€
Highlights & Details

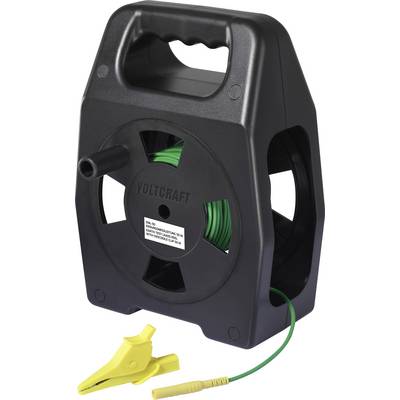

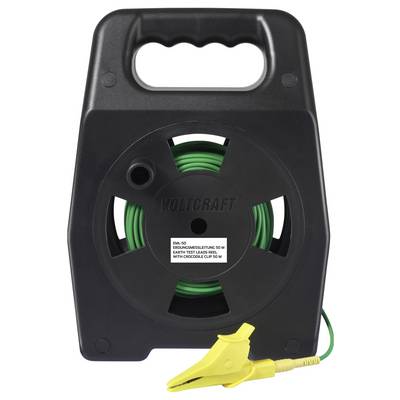

Earth test leads reel with crocodile clip, 50 m
- CAT III 1000 V, 10 A
- 30 m earth test leads reel with handle
- Cable: green PVC 18 AWG Ø3.5 mm
- With yellow crocodile clip
Technical specifications
- - 50m earth test leads reel with handle
- - Cable: green PVC 18AWG Ø3.5mm
- - CAT III 1000V 10A
- - with yellow crocodile clip
- - easy to put back the cable to the reel with the handle
- - with yellow crocodile clip (CAT III 1000V/CAT IV 600V 10A) which can test up to diameter 25mm
- Factory colour
Green
- Cable cross section
1 mm²
- Diameter/connectortype
4 mm
- Nominal current
10 A
- Nominal current - rounded value
10 A
- Cable length
50 m
- Type A
4 mm plug
- Type B
4 mm socket
- Height
270 mm
- Width
200 mm
- Material
PVC
- Reading category
CAT III 1000 V
- Plug features
Insulated
Straight
Rigid
- Type
EML-50
- Nominal voltage
1000 V
- Jack diameter
4 mm
- Plastic free packaging
Plastic-free packaging
- Product type
PG test lead
Documents & Downloads
Datasheet
Datasheet 3462539 VOLTCRAFT EML-50 PG test lead 4 mm plug 4 mm socket 50 m Green 1 pc(s)
Datasheet 3462539 VOLTCRAFT EML-50 PG test lead 4 mm plug 4 mm socket 50 m Green 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3462539 VOLTCRAFT EML-50 PG test lead 4 mm plug 4 mm socket 50 m Green 1 pc(s)
Warranty Terms
Warranty Terms 3462539 VOLTCRAFT EML-50 PG test lead 4 mm plug 4 mm socket 50 m Green 1 pc(s)
Description

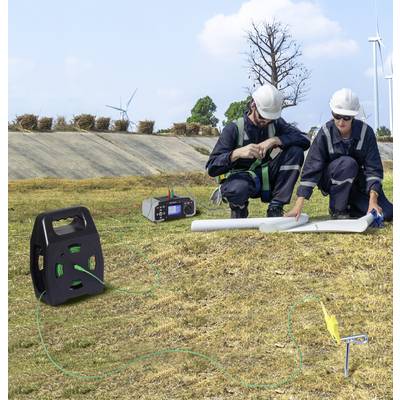

Test lead drum for measuring earth resistances and specific earth resistance.
Manoeuvrable and easy to handle
Closed spindle with crank. Rapid winding after measurement saves time when tidying up. The cable guide prevents the tangling during winding.
In the cable structure of the test lead many veryfine copper single strands are stranded. This increases the flexibility of the cable. The PVC insulation can be cleaned much more easily with a cloththan silicone test leads.
Long operating life
High tensile strength for daily use, thanks to particularly tear-resistant plastic fiberswhich are stranded together with copper wires.
