Name: VOLTCRAFT MSB-300 Test lead kit Banana jack 4 mm Silicone 2.00 m 12 pc(s)
Brand: VOLTCRAFT
SKU: 2150531

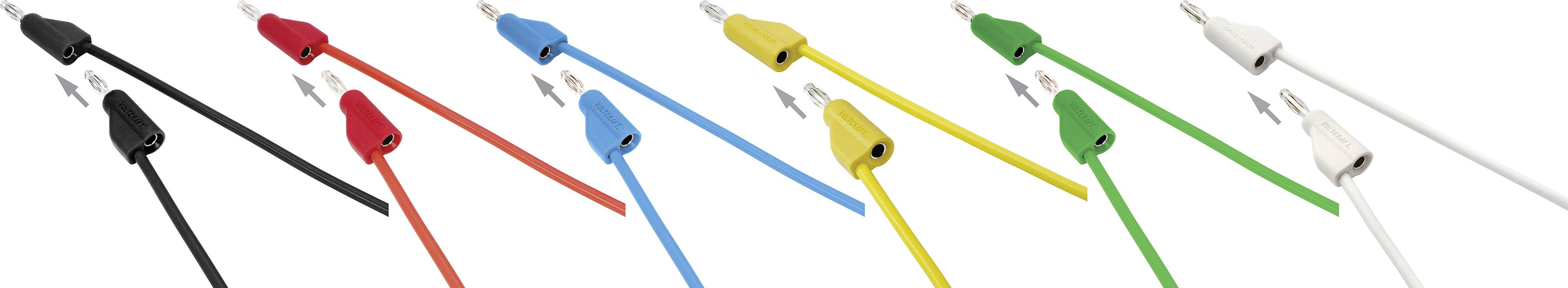

Colourful banana plugs in various colours: Black, Red, Yellow, Blue, Green and White, each with cable and metal connector.

Two black audio cables; one pointing with an arrow to the connection of the other.

A red cable with two plugs is highlighted by an arrow.

Red measuring cable with two insulated crocodile clips and a 'Voltcraft' band for securing.

Two blue banana plugs with an arrow pointing to the metal tip of one of the plugs.

A blue Voltcraft connection cable with two banana plugs and a hook-and-loop fastener for organisation.

Yellow extension cable from Voltcraft with plug connections, arrow pointing to the connection, symbolises easy handling.

Yellow connection cable with two plugs, wrapped with a hook-and-loop strap bearing the inscription 'VOLTCRAFT'.

Green electrical cable with two angled connectors; arrow points to the connection area.

Green cable with crocodile clips at both ends, with 'VOLTCRAFT' printed on an attached hook-and-loop fastener.

'Holter' electrode cables with metal shafts and connectors. An arrow indicates the cable connection.

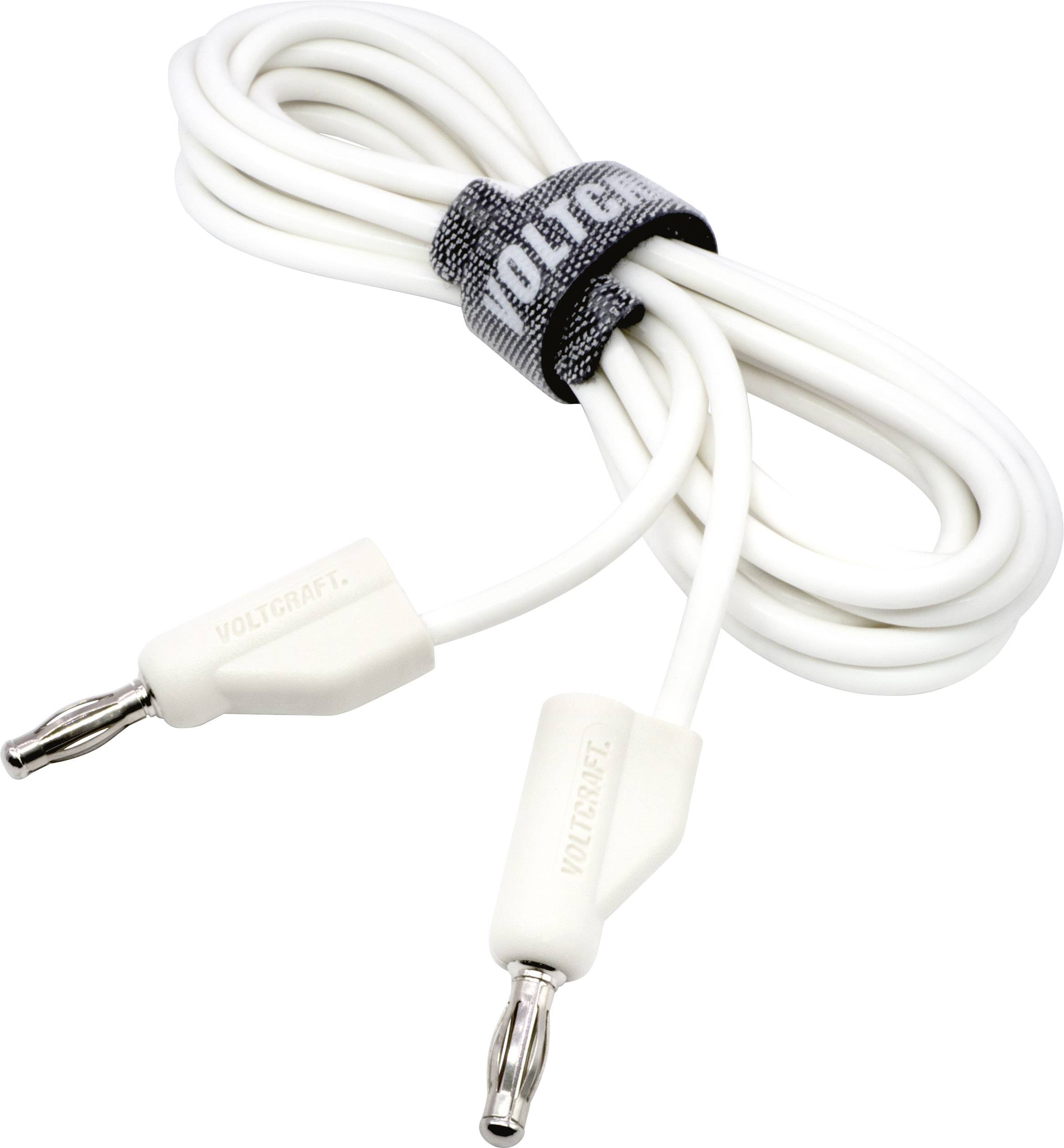

White banana cable with two plugs, branded with 'Voltcraft' marking and cable tie.

A person is holding a black cable clamp at the front of a Voltcraft VLP-2403 PRO laboratory power supply with digital displays for voltage and current.

'Hand holding a red test probe against a laboratory power supply. Display shows 11.9 V, 0.00 A. Controls for voltage and current, various connections visible.'

1/15

Our service for you

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Highly flexible test leads MSB-300 SET 2.0 m 30 V AC, 60 V DC10 A

Stackable
Highly flexible
Heat-resistant silicone insulation
Cable insulation with wear indicator
6 x 2 test leads in black, red, blue, yellow, green and white

Technical specifications

Product type: Test lead kit

Type A: Banana jack 4 mm

Type B: Banana jack 4 mm

Cable length: 2.00 m

Plug features: Flexible
Nestable
Insulated

Material: Silicone

Cable cross section: 0.85 mm²

Nominal voltage: 30 V AC
60 V DC

Nominal current: 10 A

Nominal current - rounded value: 10 A

Contact material: Nickel plated

Type: MSB-300

Compliance & Certifications

Certified by EU Garan

Variants(All information is without VAT, plus shipping costs)

Plug features

Factory colour

Temperature range

Product type

Cable length

VOLTCRAFT MSB-300 Test lead Banana jack 4 mm Silicone 0.50 m Black 1 pc(s)

Item no:1602403

Fast track dispatch on Wed 14 Oct

667 Piece(s)Conrad Electronic

Nestable

Black

0 ~ 40 °C

Test lead

0.50 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 6.99^*

VOLTCRAFT MSB-300 Test lead Banana jack 4 mm Silicone 0.50 m Blue 1 pc(s)

Item no:1602756

Fast track dispatch on Wed 14 Oct

845 Piece(s)Conrad Electronic

Nestable

Blue

0 ~ 40 °C

Test lead

0.50 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 7.49^*

VOLTCRAFT MSB-300 Test lead Banana jack 4 mm Silicone 0.50 m Green 1 pc(s)

Item no:1602770

Fast track dispatch on Wed 14 Oct

159 Piece(s)Conrad Electronic

Nestable

Green

0 ~ 40 °C

Test lead

0.50 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 7.99^*

VOLTCRAFT MSB-300 Test lead Banana jack 4 mm Silicone 0.50 m Red 1 pc(s)

Item no:1602750

Fast track dispatch on Wed 14 Oct

720 Piece(s)Conrad Electronic

Nestable

Red

0 ~ 40 °C

Test lead

0.50 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 6.49^*

VOLTCRAFT MSB-300 Test lead Banana jack 4 mm Silicone 0.50 m White 1 pc(s)

Item no:1602777

Fast track dispatch on Wed 14 Oct

163 Piece(s)Conrad Electronic

Nestable

White

0 ~ 40 °C

Test lead

0.50 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 5.49^*

VOLTCRAFT MSB-300 Test lead Banana jack 4 mm Silicone 0.50 m Yellow 1 pc(s)

Item no:1602763

Fast track dispatch on Wed 14 Oct

281 Piece(s)Conrad Electronic

Nestable

Yellow

0 ~ 40 °C

Test lead

0.50 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 6.99^*

VOLTCRAFT MSB-300 Test lead Banana jack 4 mm Silicone 0.75 m Black 1 pc(s)

Item no:1602742

Fast track dispatch on Wed 14 Oct

111 Piece(s)Conrad Electronic

Nestable

Black

0 ~ 40 °C

Test lead

0.75 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 7.99^*

VOLTCRAFT MSB-300 Test lead Banana jack 4 mm Silicone 0.75 m Blue 1 pc(s)

Item no:1602757

Fast track dispatch on Wed 14 Oct

276 Piece(s)Conrad Electronic

Nestable

Blue

0 ~ 40 °C

Test lead

0.75 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 9.49^*

VOLTCRAFT MSB-300 Test lead Banana jack 4 mm Silicone 0.75 m Green 1 pc(s)

Item no:1602771

Fast track dispatch on Wed 14 Oct

309 Piece(s)Conrad Electronic

Nestable

Green

0 ~ 40 °C

Test lead

0.75 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 8.49^*

VOLTCRAFT MSB-300 Test lead Banana jack 4 mm Silicone 0.75 m Red 1 pc(s)

Item no:1602745

Fast track dispatch on Wed 14 Oct

201 Piece(s)Conrad Electronic

Nestable

Red

0 ~ 40 °C

Test lead

0.75 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 7.99^*

Documents & Downloads

Datasheet

Datasheet 2150531 VOLTCRAFT MSB-300 Test lead kit Banana jack 4 mm Silicone 2.00 m 12 pc(s)

User & Safety Instructions

User & Safety Instructions 2150531 VOLTCRAFT MSB-300 Test lead kit Banana jack 4 mm Silicone 2.00 m 12 pc(s)

Warranty Terms

Warranty Terms 2150531 VOLTCRAFT MSB-300 Test lead kit Banana jack 4 mm Silicone 2.00 m 12 pc(s)

Description

The VOLTCRAFT measuring lead MSB-300 is optimized for electrical connections and for low-voltage measurements in the laboratory and craft. The nominal current is 10 A and the nominal voltage 30 V/AC (alternating voltage) and 60 V/DC (direct voltage).

Extremely flexible
The used materials are extremely flexible. In contrast to cheaper and stiffer material, it is almost impossible to get tangled.

Higher tensile strength
Highly tear-resistant plastic fibres increase the tensile strength and thus product durability.

Heat-resistant
The leads come with a heat-resistant silicone jacket that prevents damage caused by contact with hot soldering irons.

Safe use
The leads feature two layers of insulation, each in a different colour. If the first insulating layer is damaged, a different colored insulation appears. This acts as a reliable indicator of the cable being no longer fit for purpose. For safety reasons, all damaged test leads need to be replaced immediately.

Reliable contact
The nickel-plated, hard-nickel-plated surface of the 4 mm lamella plugs have a high number of mating cycles.
