Name: VOLTCRAFT MSB-300 Test lead kit Banana jack 4 mm Silicone 25.00 cm 12 pc(s)
Brand: VOLTCRAFT
SKU: 2150460

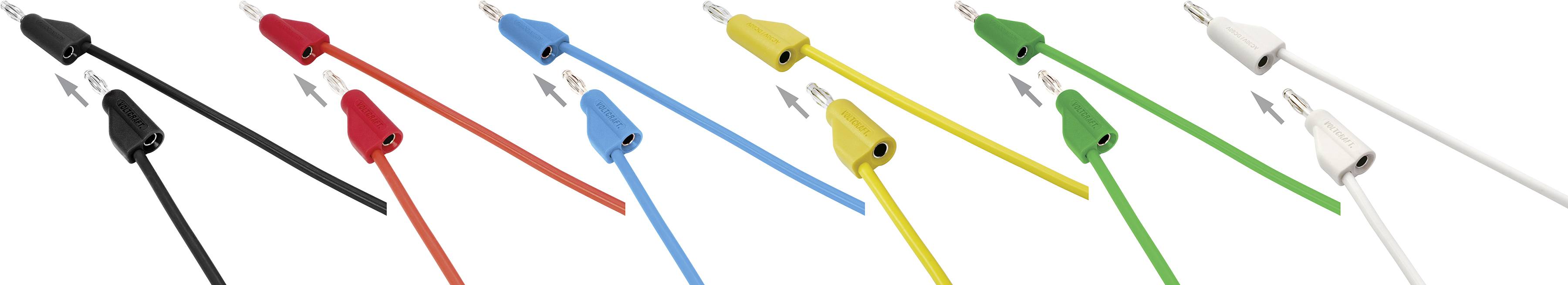

A set of coloured banana plug cables: black, red, yellow, blue, green and white, each with a metal tip at the end.

A black cable with two plugs; one pointing at the other with a grey arrow.

'Two black banana plug cables with "Voltcraft" labelling on the plugs.'

Two black speaker cables with banana plugs.

Black laboratory lead with two banana plugs, labelled 'VOLTCRAFT', for electrical connections.

Two red cables with banana plugs; one pointing at the other. Indication of connection.

Red connection cable with two banana plugs for electrical devices. Each plug is marked with 'VOLCRAFT'.

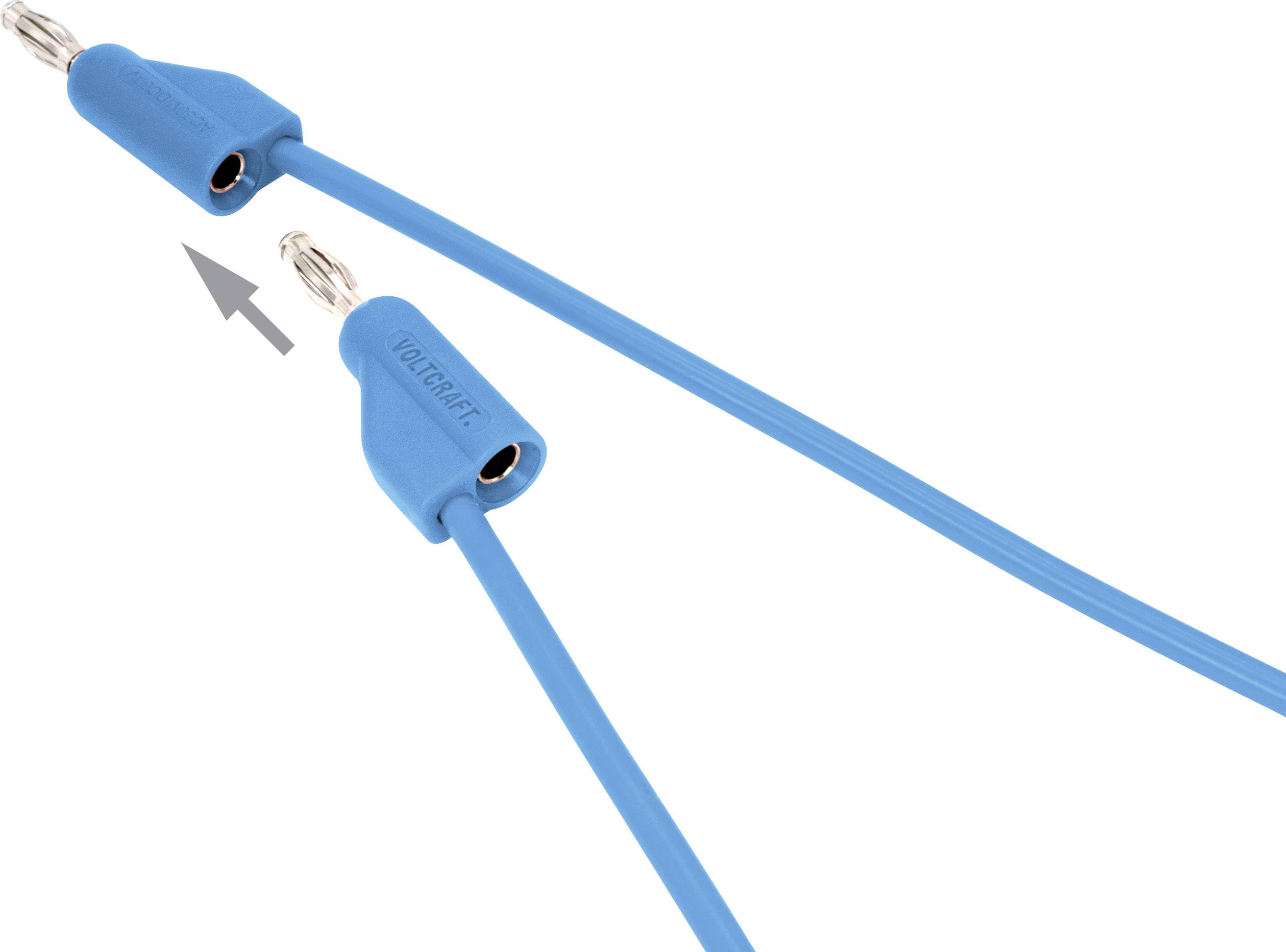

Two blue cables with plug connectors, interconnected via an arrow graphic.

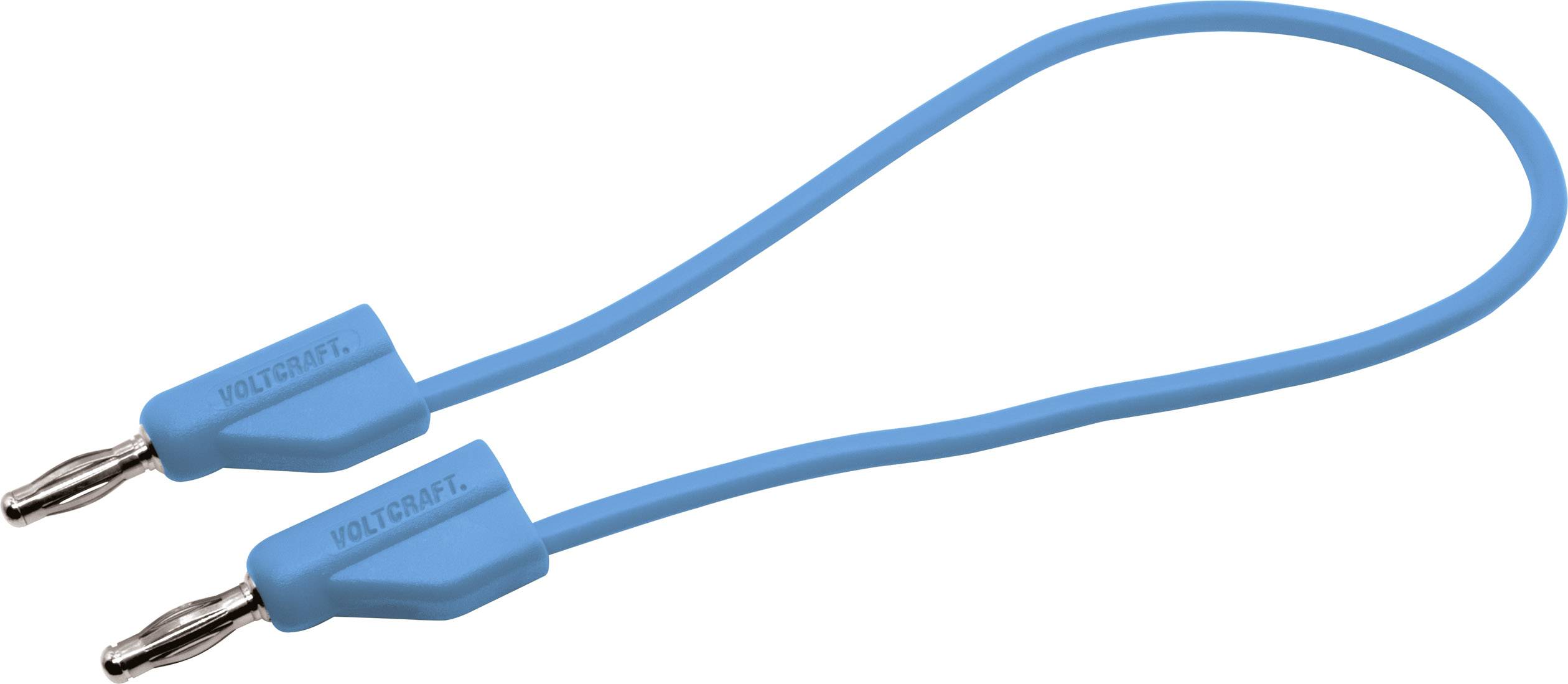

A blue banana cable with two plugs, commonly used for electrical connections in laboratories and workshops.

Two yellow electrical measuring leads with shielded clips and an arrow indicator for connecting.

A yellow banana plug connection cable with two plugs labelled 'Voltcraft' for electrical connection.

'Two green cables with insulated plugs and sockets.'

Green connecting cable with two banana plugs, suitable for electrical connections and measurements.

A white cable is plugged into a compatible socket. An arrow indicates the direction of the connection.

Two white banana plugs with a short cable, used for connecting electrical devices.

Two black cables: One with a plug pointing to the left, one pointing downwards. An arrow indicates the connection of the plugs.

A digital laboratory power supply showing 11.9 V voltage and 0.00 A current. A hand is holding a test probe.

A person is adjusting a laboratory power supply, with the voltage set to 11.9 V and the current set to 0.00 A.

Power supply unit with digital displays; shows 11.9 volts. A hand is holding a red pen multimeter to the output.

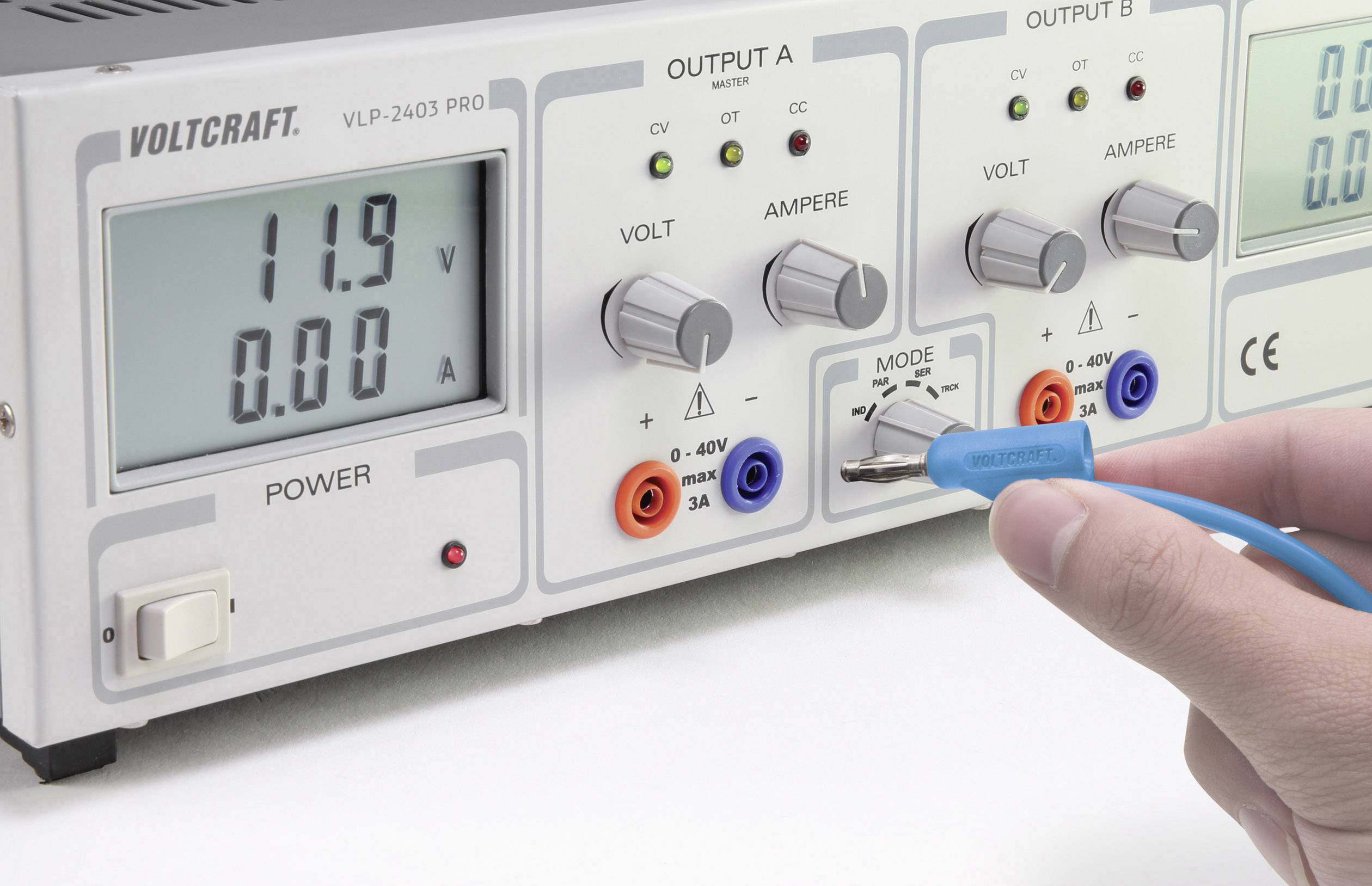

A user is adjusting a multi-channel power supply. The screen displays 11.9 volts and 0 amperes. Various connectors and controls are visible.

A black banana plug cable with two plugs, which read 'Voltcraft'. Used for electrical connections.

1/23

Our service for you

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Highly flexible test leads MSB-300 SET 0.25 m 30 V AC, 60 V DC10 A

Stackable
Highly flexible
Heat-resistant silicone insulation
Cable insulation with wear indicator
6 x 2 test leads in black, red, blue, yellow, green and white

Technical specifications

Product type: Test lead kit

Type A: Banana jack 4 mm

Type B: Banana jack 4 mm

Cable length: 25.00 cm

Plug features: Flexible
Nestable
Insulated

Material: Silicone

Cable cross section: 0.85 mm²

Nominal voltage: 30 V AC
60 V DC

Nominal current: 10 A

Nominal current - rounded value: 10 A

Contact material: Nickel plated

Type: MSB-300

Compliance & Certifications

Certified by EU Garan

Variants(All information is without VAT, plus shipping costs)

Plug features

Factory colour

Temperature range

Product type

Cable length

VOLTCRAFT MSB-300 Test lead Banana jack 4 mm Silicone 0.50 m Black 1 pc(s)

Item no:1602403

Fast track dispatch on Wed 14 Oct

664 Piece(s)Conrad Electronic

Nestable

Black

0 ~ 40 °C

Test lead

0.50 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 6.99^*

VOLTCRAFT MSB-300 Test lead Banana jack 4 mm Silicone 0.50 m Blue 1 pc(s)

Item no:1602756

Fast track dispatch on Wed 14 Oct

845 Piece(s)Conrad Electronic

Nestable

Blue

0 ~ 40 °C

Test lead

0.50 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 7.49^*

VOLTCRAFT MSB-300 Test lead Banana jack 4 mm Silicone 0.50 m Green 1 pc(s)

Item no:1602770

Fast track dispatch on Wed 14 Oct

159 Piece(s)Conrad Electronic

Nestable

Green

0 ~ 40 °C

Test lead

0.50 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 7.99^*

VOLTCRAFT MSB-300 Test lead Banana jack 4 mm Silicone 0.50 m Red 1 pc(s)

Item no:1602750

Fast track dispatch on Wed 14 Oct

720 Piece(s)Conrad Electronic

Nestable

Red

0 ~ 40 °C

Test lead

0.50 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 6.49^*

VOLTCRAFT MSB-300 Test lead Banana jack 4 mm Silicone 0.50 m White 1 pc(s)

Item no:1602777

Fast track dispatch on Wed 14 Oct

163 Piece(s)Conrad Electronic

Nestable

White

0 ~ 40 °C

Test lead

0.50 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 5.49^*

VOLTCRAFT MSB-300 Test lead Banana jack 4 mm Silicone 0.50 m Yellow 1 pc(s)

Item no:1602763

Fast track dispatch on Wed 14 Oct

281 Piece(s)Conrad Electronic

Nestable

Yellow

0 ~ 40 °C

Test lead

0.50 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 6.99^*

VOLTCRAFT MSB-300 Test lead Banana jack 4 mm Silicone 0.75 m Black 1 pc(s)

Item no:1602742

Fast track dispatch on Wed 14 Oct

111 Piece(s)Conrad Electronic

Nestable

Black

0 ~ 40 °C

Test lead

0.75 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 7.99^*

VOLTCRAFT MSB-300 Test lead Banana jack 4 mm Silicone 0.75 m Blue 1 pc(s)

Item no:1602757

Fast track dispatch on Wed 14 Oct

276 Piece(s)Conrad Electronic

Nestable

Blue

0 ~ 40 °C

Test lead

0.75 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 9.49^*

VOLTCRAFT MSB-300 Test lead Banana jack 4 mm Silicone 0.75 m Green 1 pc(s)

Item no:1602771

Fast track dispatch on Wed 14 Oct

309 Piece(s)Conrad Electronic

Nestable

Green

0 ~ 40 °C

Test lead

0.75 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 8.49^*

VOLTCRAFT MSB-300 Test lead Banana jack 4 mm Silicone 0.75 m Red 1 pc(s)

Item no:1602745

Fast track dispatch on Wed 14 Oct

201 Piece(s)Conrad Electronic

Nestable

Red

0 ~ 40 °C

Test lead

0.75 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 7.99^*

Documents & Downloads

Datasheet

Datasheet 2150460 VOLTCRAFT MSB-300 Test lead kit Banana jack 4 mm Silicone 25.00 cm 12 pc(s)

User & Safety Instructions

User & Safety Instructions 2150460 VOLTCRAFT MSB-300 Test lead kit Banana jack 4 mm Silicone 25.00 cm 12 pc(s)

Warranty Terms

Warranty Terms 2150460 VOLTCRAFT MSB-300 Test lead kit Banana jack 4 mm Silicone 25.00 cm 12 pc(s)

Description

The VOLTCRAFT measuring lead MSB-300 is optimized for electrical connections and for low-voltage measurements in the laboratory and craft. The nominal current is 10 A and the nominal voltage 30 V/AC (alternating voltage) and 60 V/DC (direct voltage).

Extremely flexible
The used materials are extremely flexible. In contrast to cheaper and stiffer material, it is almost impossible to get tangled.

Higher tensile strength
Highly tear-resistant plastic fibres increase the tensile strength and thus product durability.

Heat-resistant
The leads come with a heat-resistant silicone jacket that prevents damage caused by contact with hot soldering irons.

Safe use
The leads feature two layers of insulation, each in a different colour. If the first insulating layer is damaged, a different colored insulation appears. This acts as a reliable indicator of the cable being no longer fit for purpose. For safety reasons, all damaged test leads need to be replaced immediately.

Reliable contact
The nickel-plated, hard-nickel-plated surface of the 4 mm lamella plugs have a high number of mating cycles.

This text is machine translated.
