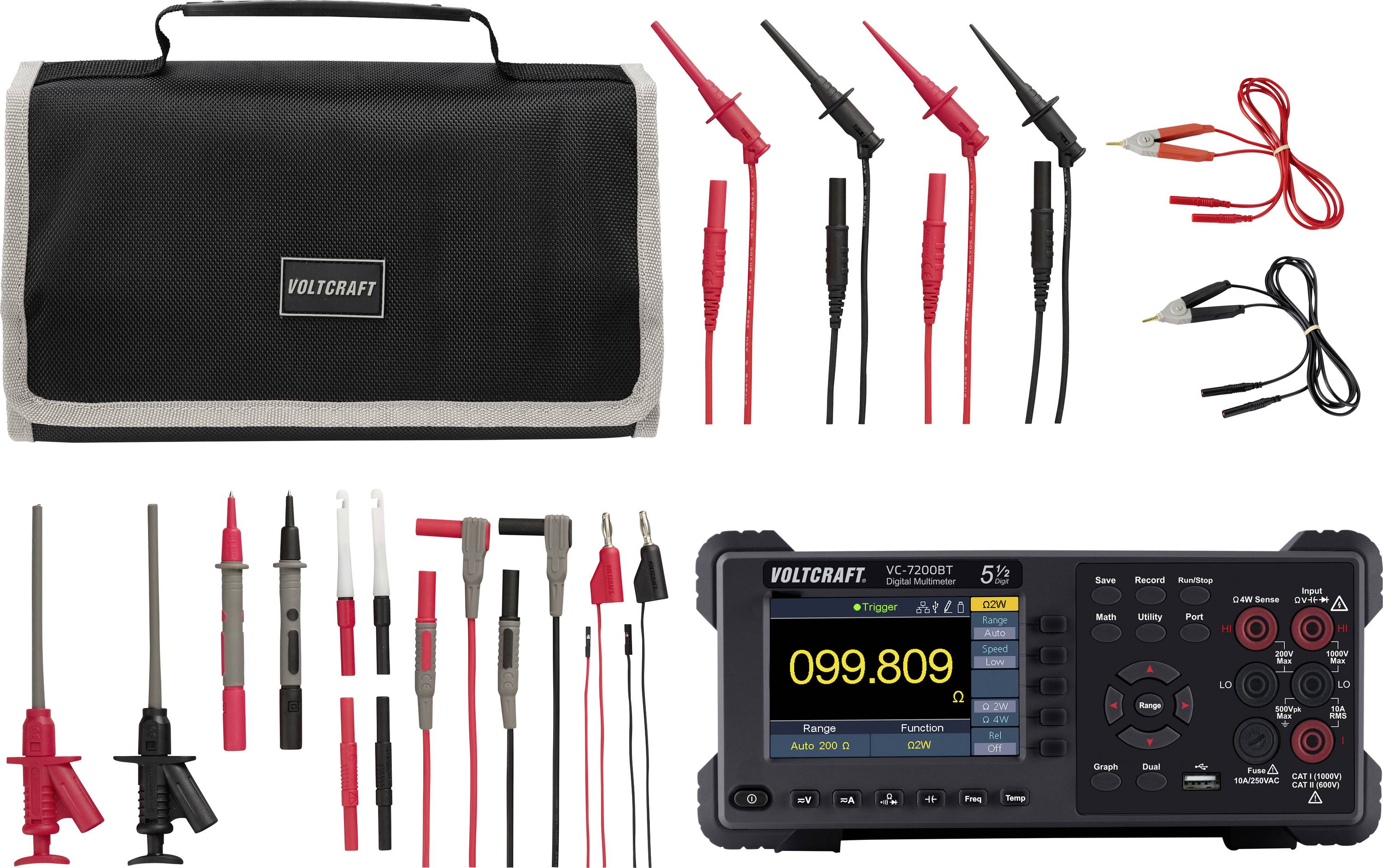

Voltcraft test probe kit with carrying case, assorted red and black test leads, clips, adapters, and a digital multimeter displaying 099.809.

Electronic measuring instrument with a digital display, showing the number '099.809', black housing colour, multiple connections on the right.

Digital multimeter with a large display showing the value '099.809'. Control buttons and sockets are located on the right-hand side.

The rear panel of a Voltcraft device. Shows connections for RS232, USB, LAN, Ext Trig 5V, AUX, as well as power connection and fuse. Warning notices at the top.

An oscilloscope with accessories, including power cable, test leads, and adapters, for measuring electronic signals.

'Multimeter, showing 9.57 V, is being used to measure the voltage on an electronic circuit lying on a table.'

A digital multimeter displays a reading of 999.809 on its display. A hand is holding test probes connected by cables.

Screen shows 167.9 µF; Trigger active. Range set to 'Auto 200 µF', Function: CAP. Options: Range, Reference (off).

The image shows a digital oscilloscope display. It depicts a graph of voltage (V) against points, with a measured value of 0.23 mVDC.

'Image of a digital multimeter: Table with six entries shows function DCV and different voltage values; display: -000.54 mVDC.'

Multimeter display shows: '22.5233 VDC' for direct current voltage. Settings: Auto range 20 V, low speed. Trigger activated.

'Screen display of a measuring device with a bar graph and voltage values. A yellow bar on the left at 21.379 mV.'

'Digital measurement display with yellow trend curve and numeric value of -0.293 mVDC. Options include trend, auto-scaling, displays.'

Digital display of a measuring device shows '-009.190 mVDC'. 'Trigger' is written at the top. Options such as 'Range', 'Speed', and 'Filter' are displayed on the side.

Screen of an electronic measuring device with histogram. Displays voltage data, y-axis with values up to 58.2%. Buttons: 'Display', 'Histogram'.

Measuring device display shows resistance of 099.809 ohms in the Ω2W mode. Options: Range Auto 200 Ω, Speed Low, Rel Off.

Digital multimeter displays '22.5233 VDC'. Accessories include cables, test leads, and adapters. Diagrams visualise voltage progression.

Two cables, one red and one black, each with crocodile clips at one end. They are wrapped with rubber bands.

Two measuring leads, red and black, with crocodile clips at one end and banana plugs at the other.

A pair of red jump leads with clamps, used for jump-starting vehicle batteries.

Digital multimeter on a wooden table showing '999.809'. Clip test leads connected to terminals. A hand measuring on the left.

A zippered carrying case with a set of multimeter test leads, probe tips, and adapters arranged in a row.

Assorted multimeter test probes and leads in red, black, and gray, arranged diagonally on a white background.

Assorted multimeter test probes and leads in red, black, gray, and white, shown as different probe tip and cable configurations.

Open organizer pouch with three zippered mesh compartments for storing cables or small accessories.<br>

Red and black test probe leads with two translucent protective caps on a white background.

Two insulated test leads with hook-style connectors, one black and one red, shown side by side on a white background.

Close-up of a red multimeter test probe held between fingers, with a pointed metal tip on a white background.

Close-up of a hand holding a red electrical test probe with a pointed tip, isolated on a white background.

Hand holding a red plastic toy dart gun with a long gray dart against a white background.

0.64 mm rectangular socket connector on a red cable, with a faded comparison image of a similar plug above.

Collage of technicians repairing circuit boards in a lab, with a central circle showing assorted screwdrivers and precision tools.

Voltcraft carrying case with a set of test leads and multimeter probes in red, black, and gray.

1/33

Our service for you

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

VOLTCRAFT VC-7200BT Desktop Multimeter with MLSET-120 test leads

VOLTCRAFT VC-7200BT Desk multimeter
Resolutions up to 5 (1/2) digits, 200,000 counts
10.16 cm LCD (4 inch) with 480 x 320 pixel resolution
Up to 150 measured values per second
CAT II 600 V
AC voltage/current measurements, effective values
Two-line data display
Trend analysis can be called via the diagram mode
Built-in cold junction compensation for thermocouples
SCPI support
Multi-I/O port with USB, RS232, LAN and external trigger input
VOLTCRAFT MLSET-120 test lead set laboratory with industrial roll-bag and precision test equipment for electronic development (15-part)
CAT III 1000 V/CAT IV 600 V 10 A 4 mm plug PVC 1.2 m test leads (red and black), nickel-plated
CAT II 300 V SMD test leads small grip terminals with 4 mm plug (red and black), 1.2 m
CAT II 300 V SMD test leads IC terminal with 4 mm plug (red and black), 1.2 m
0.7 mm measuring tip with 4 mm socket with cover, 30 VAC / 60 VDC 3 A (red and black)
Test leads from 4 mm banana plug to 0.64 mm square socket (red and black)
4 mm adapter plug (red and black)
4-mm clamp terminal, CAT II 1000 V 5 A (red and black)
Test tip 10 A nickel-plated (red and black)
Kelvin measuring lead 4-wire
Kelvin measuring lead 4-wire
Banana jack, 4 mm socket
Cable length 1 m.

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 3805716 VOLTCRAFT VC-7200BT Desktop Multimeter with MLSET-120 test leads

User & Safety Instructions

User & Safety Instructions 3805716 VOLTCRAFT VC-7200BT Desktop Multimeter with MLSET-120 test leads

Information

Information 3805716 VOLTCRAFT VC-7200BT Desktop Multimeter with MLSET-120 test leads

Conformity certificate

Conformity certificate 3805716 VOLTCRAFT VC-7200BT Desktop Multimeter with MLSET-120 test leads

Warranty Terms

Warranty Terms 3805716 VOLTCRAFT VC-7200BT Desktop Multimeter with MLSET-120 test leads

Description

VOLTCRAFT VC-7200BT Desk multimeter
The VOLTCRAFT VC-7200BT is a digital, 5 1/2-digit, dual-table multimeter offering a wide range of functions for measurements (statistics, limits, dB/dBm, REL).
The VC-7200BT has a 10.16 cm display (4 inch). It records up to 150 measured values per second.
The device is Ideal for all who want high power, lot of functions and automatic measurements.

Precise effective value measurements
The true RMS measurement function enables the precise measurement of asymmetric voltages and currents which deviate from the basic sine wave form.
Asymmetric voltages are very common in various types of power regulators, syncronized switching regulators, impulse chargers and electronic speed controllers in modeling.

Factory calibration
Calibration according to manufacturer standards and VOLTCRAFT quality assurance
Calibration ensures high product quality and conformity of tolerance limits.

VOLTCRAFT MLSET-120 test lead set laboratory with industrial roll-bag and precision test equipment for electronic development (15-part)
The VOLTCRAFT MLSET-120 is a modular accessory system, whose composition was specifically designed for the high requirements in electronics development, in test laboratories as well as for fine diagnostic tasks in industrial maintenance. In addition to highly flexible silicone test leads, the system includes a specific range of fine test tips, miniature hooks and test lead connectors to the latest industrial test standards.

The accompanying premium roll bag optimizes the workflow in the laboratory and service everyday life. Two integrated quick access shaker compartments enable the loose, time-saving storage of fine cables and sensitive adapters. The semi-transparent front segments allow the content to be visually inspected at any time, minimizing WAS unproductive search times. An additional, separate zipped case secures sensitive small parts, such as miniature clamps or SMD accessories, against loss. The generous interior layout grows with the tasks of the technician and offers sufficient capacity for the integration of further measuring equipment and compact devices.

This text is machine translated.

Features

VOLTCRAFT VC-7200BT Desk multimeter
Automatically Range selection
Internal memory for up to 1000 measurements
Temperature Measurement: Temperature Sensors - Thermocouple (ITS-90 conversion between B/E/J/K/N/R/S/T) and Thermal Resistance (RTD sensor conversion between PT100 and PT385)
Buzzer for continuity
Display of exceeding ranges
Data hold function
Input protection
VOLTCRAFT MLSET-120 test lead set laboratory with industrial roll-bag and precision test equipment for electronic development (15-part)
Optimised for laboratory and development: Special set-up of test equipment for filigree measurement tasks on boards, SMD components and ICs
Maximum protection in B2B environment: Heavy-duty roll bag made of extremely durable, wear-resistant industrial fabric to protect against mechanical wear in laboratories
Time saving through quick-access shaking compartments: Two permanently integrated, semi-transparent compartments make the complex sorting in rigid rubber loops unnecessary
Expandable dust volume: Flexibly adjustable lock mechanism provides additional space for existing measuring accessories or compact hand-held digital multimeters
Extensive precision set: Includes specialized laboratory components up to CAT IV for seamless signal reception with maximum user safety

Scope of delivery

DMM Table design
Power cable;
USB cable
1x pair test conductor
1x pair alligator clips
2x replacement fuse
Software + English instructions on CD
VOLTCRAFT safety information, Quick start guide
2x Highly flexible silicone test leads (1.2 m, red/black)
2x safety clip probes (VOLTCRAFT MSK-120)
2x test lead connector 4 mm socket/socket (VOLTCRAFT MSL-504)
2x fine measuring tips with 0.7 mm measuring needle (VOLTCRAFT MMS-130)
2x silicone test leads 1.2 m with miniature grip hook (VOLTCRAFT MSL-528)
2x 1.2 m silicone test leads with miniature alligator clips (VOLTCRAFT MSL-525)
2x adapter lines 4 mm plug on 0.64 mm socket (VOLTCRAFT MSL-315)
1x durable industrial roll bag with transparent quick-access compartments
