Name: VOLTCRAFT VC-9657630 DL-240K Temperature data logger Calibrated to (DAkkS standards) Unit of measurement Temperature -20
Brand: VOLTCRAFT
SKU: 2266519

A digital thermometer shows 25.4 degrees Celsius.

A black padlock set comprising a main padlock, two keys, a small padlock, and mounting materials.

A data logger is installed in a server room, secured to a cabinet with numerous storage modules.

USB temperature data logger with protective cap and thermocouple connection, displaying '22.2' on the screen.

An open desktop computer with visible components and a thermometer showing a temperature of 53.1 degrees.

A USB temperature data logger with display shows "30.2 °C". A yellow sensor is connected. Cover is lying beside it.<br><br>Note: I adjusted the decimal comma to a decimal point, which is standard in British English.

A digital temperature measuring device with USB port and display, branded as 'Voltcraft'.

Digital thermometer with cable probe showing 22.2 degrees Celsius. Suitable for precise temperature measurement.

Black battery tester by Voltcraft with a small display and a cable connection.

Black metal holder with lock and key hook, typically used for securely fastening an object to a wall.

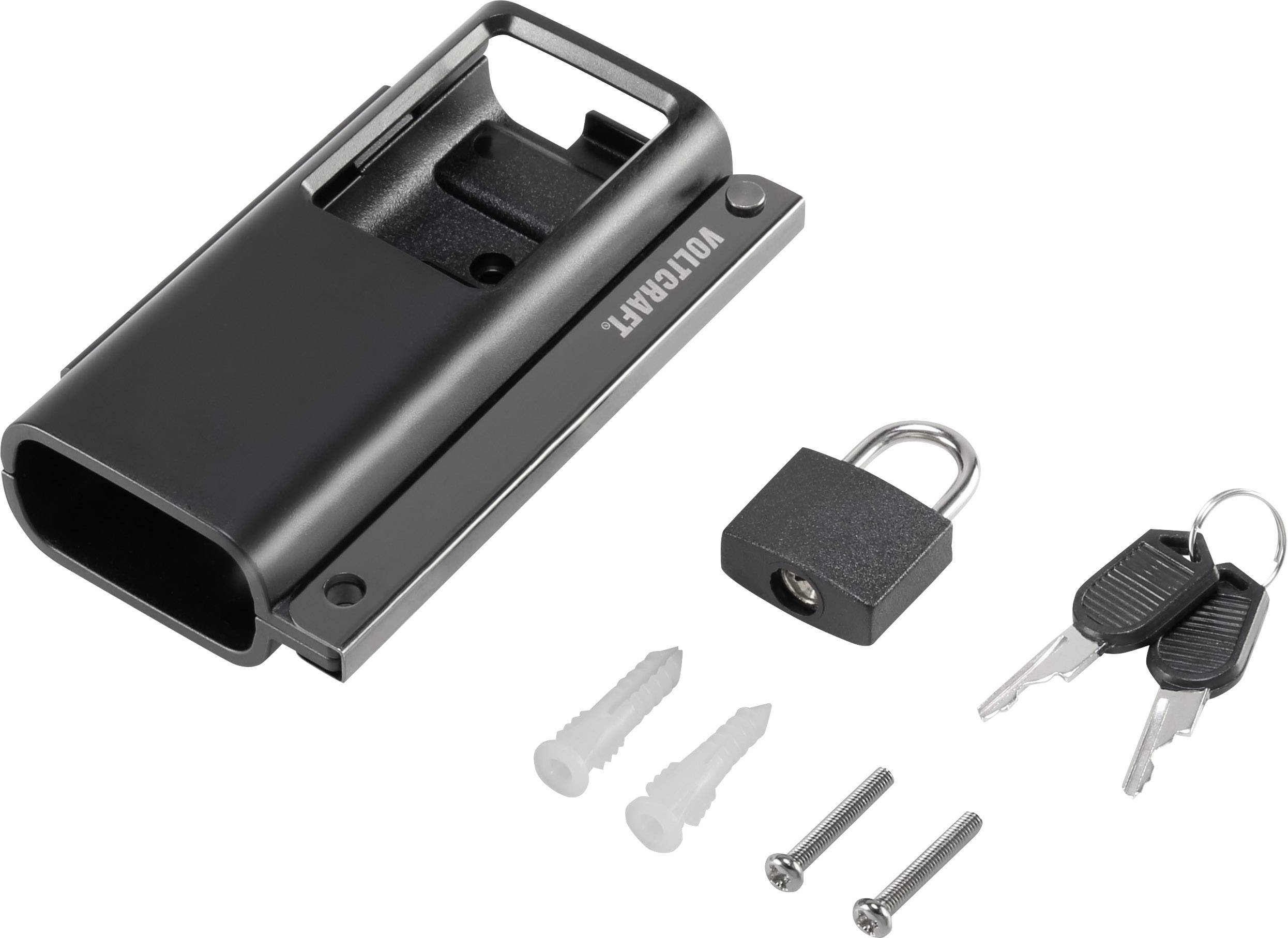

Black padlock housing with lock, two keys, two screws and two wall plugs. Ideal for additional security.

Black case with locking mechanism and padlock; the word 'VOLCRAFT' is printed on the side.

A black, rectangular locking mechanism with a padlock on the side, suitable for doors or windows.

Electronic combination lock with display, showing '28%', including two keys, suitable for secure locking.

Black voltmeter with a folding cover, digital display and two padlocks with keys in the foreground.

An electronic door lock with a digital display shows '20.8'. Office furnishings can be seen in the background.

A digital data logger thermometer by VOLTCRAFT in a protective holder, next to an open padlock with two keys.

1/19

Image similar

Our service for you

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Voltcraft DL-240K Data logger + wall bracket

Logs temperature
Built-in display
Automatically creates PDF and CSV files
Measurement using an external type K sensor

Technical specifications

Product type: Temperature data logger

Unit of measurement: Temperature

Temperature reading range (min.): -200 °C

Temperature reading range (max.): 1372 °C

: DAkkS standards

Dim: (L x W x H) 18 x 37 x 98 mm

Weight: 50 g

Channels: 1

Features: PDF generator
incl. wall bracket

Calibration range: Temperature

Temperature reading range: -200 up to 1372 °C

Sample rate (max.): 1 days

Sample rate (min.): 10 s

Width: 37 mm

Height: 98 mm

Length: 18 mm

Interfaces: USB

Power supply: CR 2450 button cell (1x)

Reading accuracy temperature: 1.5 °C

Type: DL-240K

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2266519 VOLTCRAFT VC-9657630 DL-240K Temperature data logger Calibrated to (DAkkS standards) Unit of measurement Temperature -20

Information

Information 2266519 VOLTCRAFT VC-9657630 DL-240K Temperature data logger Calibrated to (DAkkS standards) Unit of measurement Temperature -20

Warranty Terms

Warranty Terms 2266519 VOLTCRAFT VC-9657630 DL-240K Temperature data logger Calibrated to (DAkkS standards) Unit of measurement Temperature -20

Download

Download 2266519 VOLTCRAFT VC-9657630 DL-240K Temperature data logger Calibrated to (DAkkS standards) Unit of measurement Temperature -20

Description

The data logger enables (long-term) recording of the temperature using an external type K sensor.

Without software immediately ready to use
the device can be configured browser-supported. The link is on the logger. The device features a Auto Report function exporting data as PDFs to PCs, Macs or printers.

Evaluate without software
as soon as the data recording is finished and the data logger is connected to a USB interface, a PDF file and additionally a spreadsheet file are generated automatically.
The PDFs contain a general device status report, settings, notifications and a chart showing the variables logged during the selected time period. The logger creates CSV files for data export and processing.

Large display
of current as well as min and max measurement data can be displayed directly on the logger via the integrated display. Also allows obtaining individual logger IDs if multiple loggers are used at the same time. The display can be disabled to save battery life.

Individual start-stop modes
of the data logger allow up to 13 different programming of the start-stop conditions. Means you can set up the logger to suit your needs. Examples are: Start immediately, start after delay time, start after time, start after pressing a button etc.

LED alarm displays
via two-color LED alarm displays, when activated, you get a quick overview of limit violations, without having to view the saved data in detail. Notifications can be disabled to save battery life.

Free sensor selection
Optionally, each K-type sensor can be connected to the logger. Thus, measurements of temperatures up to 1370°C are also possible - depending on the sensor design. The Logger electronics is prepared for all K-type sensor types.

This text is machine translated.

Features

Stores Min/Max readings
Logging timer
Set-up via browser
Sampling rates from 10 seconds to 24 hours
Built-in lithium button cell keeps logger mains-independent
Sealing in different colours allows easy distinction between logger types
Battery level indicator
Firmware upgrade option.

Scope of delivery

Voltcraft DL-240K Data logger
MI
Battery CR2450
Type K probe
Incl. wall bracket
This text is machine translated.

Hints

Please note the sample calibration certificate stored under "Downloads" for the scope of the calibration. Your right to cancel does not apply to this product.

URL for web-based set-up:

datalogger.voltcraft.com/configbuilder/index.jsp

Just copy and paste this link into your browser address bar.
