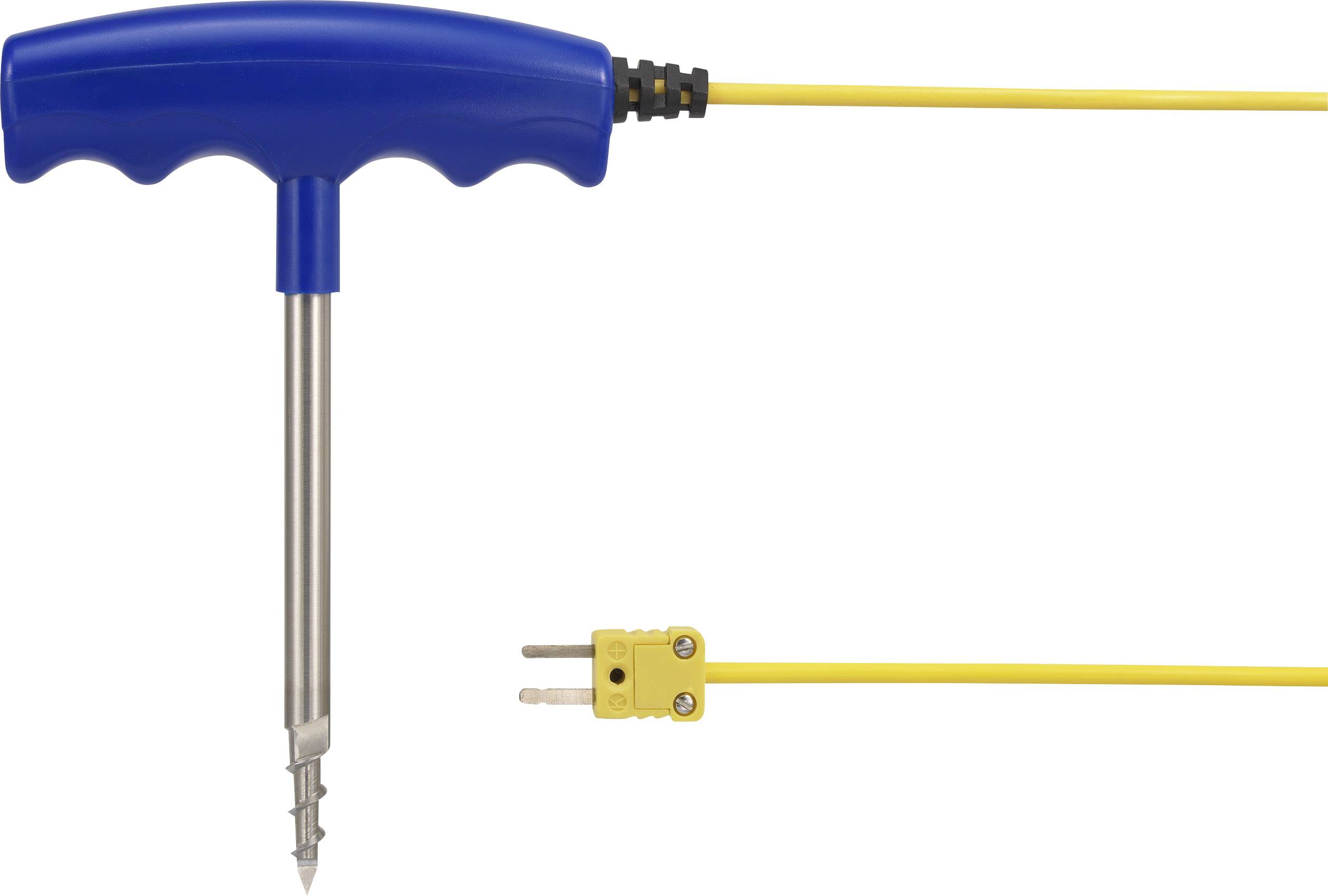

A blue handle with an integrated metal pin and yellow cable ending in a yellow plug. Tool for temperature measurement.

A man in white workwear is inspecting meat halves in a cold storage room using a measuring device. The environment appears hygienic and sterile.

Technical drawing of a wall-mounted fan, with detailed measurements in millimetres. Side view shows fan shape and mounting points.

1/4

VOLTCRAFT

Our service for you

Fast track dispatch on Wed 21 Oct

402 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 19.99 / piece)

€ 27.99

-29 %

€ 19.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Screw-in sensor K-type TP-301

Technical specifications

Product type: Corkscrew probe

Sensor type: K

Temperature reading range (min.): -100 °C

Temperature reading range (max.): 300 °C

Dim: (Ø) 8 mm

Probe length: 110 mm

: Manufacturer's standards (no certificate)

Connector: Heating element connector

Weight: 0.07 kg

Temperature reading range: -100 up to 300 °C

Temperature accuracy: 2.5 °C

(Ø): 8 mm

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1650570 VOLTCRAFT TP-301 Corkscrew probe -100 up to 300 °C Sensor type K

Warranty Terms

Warranty Terms 1650570 VOLTCRAFT TP-301 Corkscrew probe -100 up to 300 °C Sensor type K

Description

The screw-in sensor (type K)TP-301 from VOLTCRAFT is well suited for measuring the temperature of solids to liquids. Especially for the use in frozen, the screw over. It is the sensor for a temperature range of-100 °C up300 °C that it fits perfectly for all applications in the food industry, catering, tire and rubber industry, pharmaceutical, laboratory and construction, etc.

Features

Tolerance class for thermocouple sensor IEC584
Type K Class II.
This text is machine translated.

Hints

With the K-type sensor element of class II a measurement up to +1200°C is possible. For safety reasons and for your protection during the measurement, however, only one application up to maximum 300 °C is recommended!

Description

The screw-in sensor (type K)TP-301 from VOLTCRAFT is well suited for measuring the temperature of solids to liquids. Especially for the use in frozen, the screw over. It is the sensor for a temperature range of-100 °C up300 °C that it fits perfectly for all applications in the food industry, catering, tire and rubber industry, pharmaceutical, laboratory and construction, etc.

Features

Tolerance class for thermocouple sensor IEC584
Type K Class II.
This text is machine translated.

Hints

With the K-type sensor element of class II a measurement up to +1200°C is possible. For safety reasons and for your protection during the measurement, however, only one application up to maximum 300 °C is recommended!
