Buy VOLTCRAFT TPT-210 Immersion probe -70 up to 250 °C Sensor type Pt1000

A black, ergonomic soldering iron with a long, silver metal shaft, likely used for soldering or craft work.

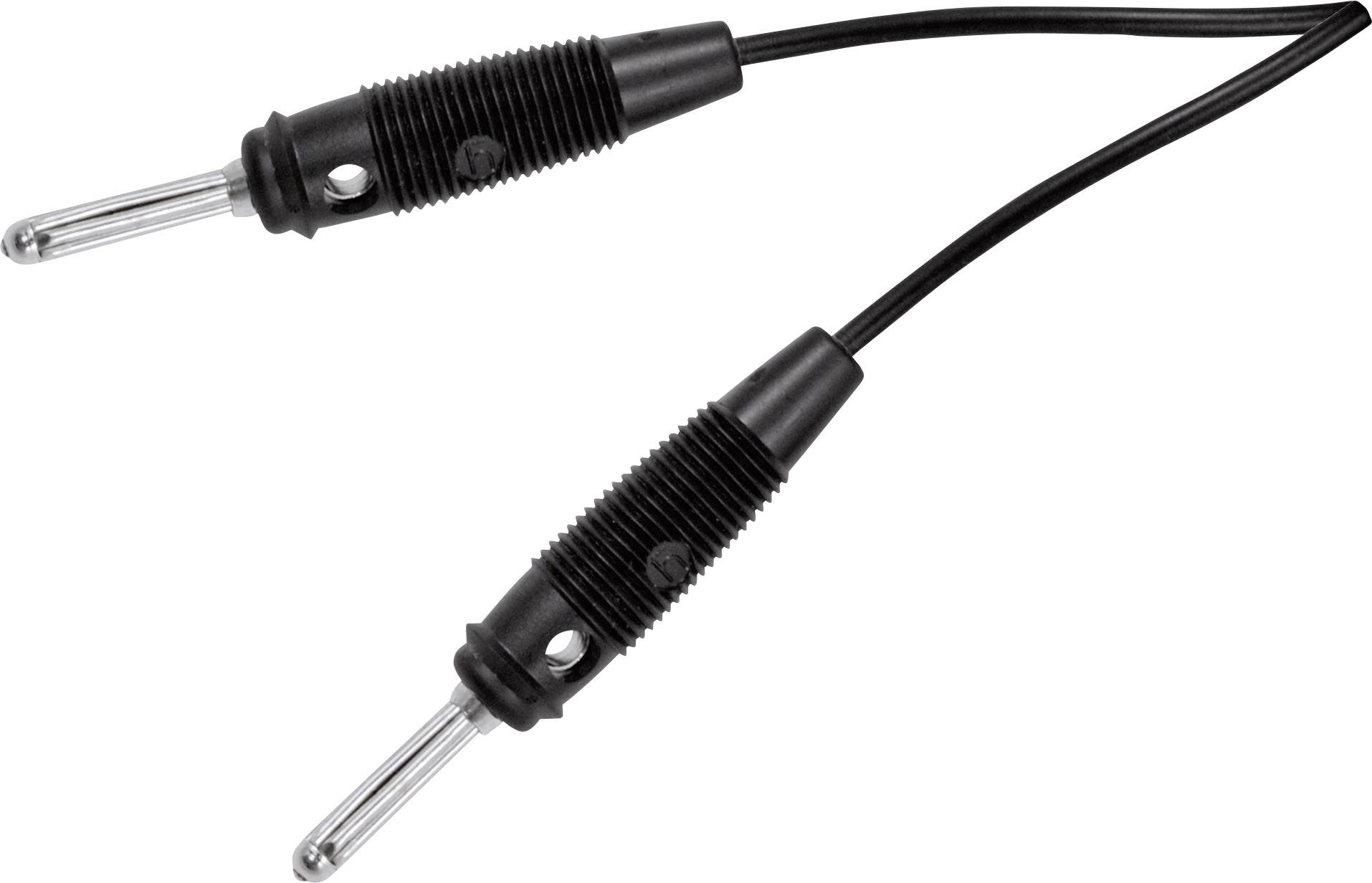

Two black banana plugs connected by a black cable. Suitable for electrical testing and measurements.

1/2

Our service for you

Fast track dispatch on Fri, 4 Sep

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 53.77 / piece)

€ 53.77

plus VAT.

Only 2 Piece(s) available

Report legal concerns

Highlights & Details

Waterproof Pt 1000 immersion sensor, with 2 x banana plugs, Class B

Sensor type Pt1000
Light, handy grip with optimized ergonomics and flexible cable
Water-tightness: can safely be submerged completely
Short-term temperature resistance up to 250°C

Technical specifications

Sensor: Immersion Probe Ø 3 mm, V4A tube
Sensor: Pt1000 (2-wire),
Accuracy: DIN class B
Connection: 2 x banana plugs
Measuring range: -70 ... +250 °C
Probe handle: black silicone handle up to +250 °C
Cable: 1 m silicone cable up to +230 °C continuous, +250 °C2H
Response time T90: Water 0.4 m/s less than 2 s, air 2 m/s about 40 s

Product type: Immersion probe

Sensor type: Pt1000

Pick-up time (details): 2 s

Temperature reading range (min.): -70 °C

Temperature reading range (max.): 250 °C

Dim: (Ø x L) 3 mm x 170 mm

Probe length: 100 mm

: Manufacturer's standards (no certificate)

Weight: 0.039 kg

Temperature reading range: -70 up to 250 °C

Temperature accuracy: 0,3 °C

Length: 170 mm

(Ø): 3 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1720734 VOLTCRAFT TPT-210 Immersion probe -70 up to 250 °C Sensor type Pt1000

Information

Information 1720734 VOLTCRAFT TPT-210 Immersion probe -70 up to 250 °C Sensor type Pt1000

Conformity certificate

Conformity certificate 1720734 VOLTCRAFT TPT-210 Immersion probe -70 up to 250 °C Sensor type Pt1000

Warranty Terms

Warranty Terms 1720734 VOLTCRAFT TPT-210 Immersion probe -70 up to 250 °C Sensor type Pt1000

Description

This robust immersion probe covers a large measuring range and is ideal for various applications in research and industry. Via the banana plug, the sensor via the 1 m long cable connected to the measuring device, so that the highest degree of flexibility is guaranteed. The compact hand-held sensor is, among other things, can be used for temperature measurement with the pH-Measuring device KBM-110.

This text is machine translated.
