VOLTCRAFT TPT-203 Needle probe -70 up to 250 °C Sensor type Pt1000
EAN:
Part number:
Item no:
Number
Total (€ 60.50 / piece)
€ 60.50
plus VAT.
Only 6 Piece(s) available
Highlights & Details

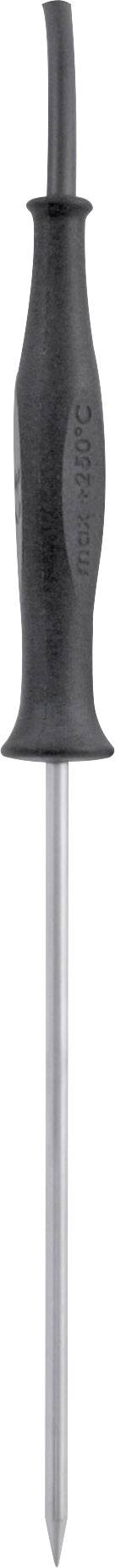

Waterproof Prazisions-Pt 1000-insertion probe, Class AA
- Sensor type Pt1000
- Light, handy grip with optimized ergonomics and flexible cable
- Water-tightness: can safely be submerged completely
- Short-term temperature resistance up to 250°C
Technical specifications
- Probe type: insertion probe Ø 3 mm, V4A tube
- Accuracy: DIN Class AA

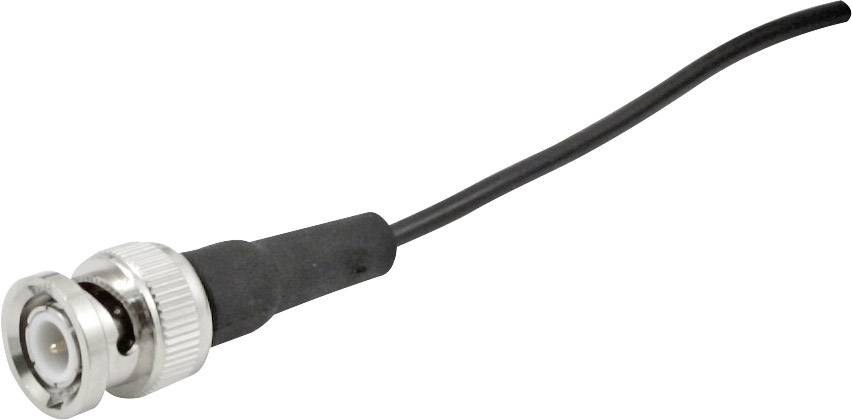

- Connection: BNC connector
- Sensor: Pt1000 (2-wire)
- Measuring range: -70 ... +250 °C
- Probe handle: black silicone handle up to +250 °C
- Cable: 1 m silicone cable up to +230 °C continuous resistant, short-term +250 °C
- Response time T90: Water 0.4 m/s less than 2 s, air 2 m/s about 40 s
- Product type
Needle probe
- Sensor type
Pt1000
- Pick-up time (details)
2 s
- Temperature reading range (min.)
-70 °C
- Temperature reading range (max.)
250 °C
- Dim
(Ø x L) 3 mm x 170 mm
- Probe length
100 mm
Manufacturer's standards (no certificate)
- Weight
0.039 kg
- Temperature reading range
-70 up to 250 °C
- Temperature accuracy
0,1 °C
- Length
170 mm
- (Ø)
3 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1720727 VOLTCRAFT TPT-203 Needle probe -70 up to 250 °C Sensor type Pt1000
Warranty Terms
Warranty Terms 1720727 VOLTCRAFT TPT-203 Needle probe -70 up to 250 °C Sensor type Pt1000
Description
This robust insertion probe covers a large measuring range and and is thus ideal for various applications in research and industry to kitchen and household. Via the BNC connector is the sensor via the 1 m long cable connected to the measuring device. This is the highest flexibility is guaranteed. Accuracy class AA provides for high precision.
This text is machine translated.
This text is machine translated.
Features
- 3 mm insertion tip
- 1 m highly flexible silicon cable.
- Black silicone handle
- BNC plug
Scope of delivery
- Sensor
- User manual
