Buy VOLTCRAFT TPT-205 Needle probe -70 up to 250 °C Sensor type Pt1000

A black device, possibly a probe or measuring instrument, with a long, slender metal probe and a discernible handle.

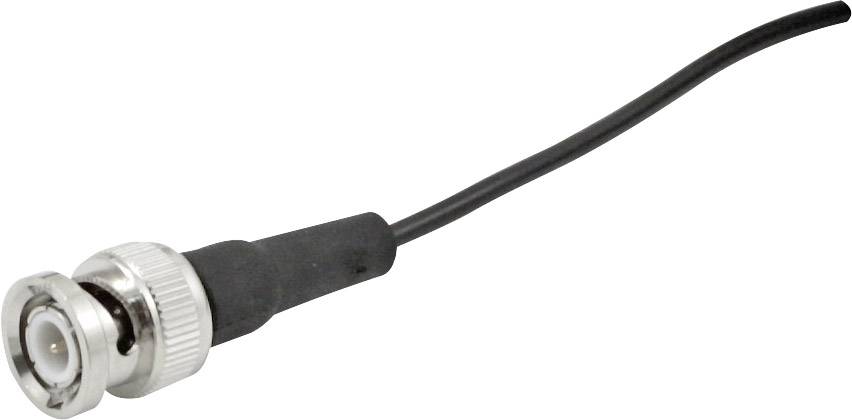

A coaxial cable with a BNC connector, commonly used for video and network connections.

1/2

Our service for you

Fast track dispatch on Fri, 4 Sep

4 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 50.41 / piece)

€ 50.41

plus VAT.

Only 4 Piece(s) available

Report legal concerns

Highlights & Details

Extra thin, waterproof Pt 1000 insertion probe, Ø 1.5mm, class A

Extra thin insertion tip Ø 1.5 mm
Sensor type Pt1000
Light, handy grip with optimized ergonomics and flexible cable
Water-tightness: can safely be submerged completely
Short-term temperature resistance up to 250°C

Technical specifications

Sensor: insertion probe Ø 1.5 mm, V4A tube
Sensor: Pt1000 (2-wire)
Accuracy: DIN class A
Connection: BNC connector
Measuring range: -70 ... +250 °C
Probe handle: black silicone handle up to +250 °C
Cable: 1 m silicone cable up to +230 °C continuous resistant, short-term +250 °C
Response time T90: Water 0.4 m/s less than 1 s, air 2 m/s approx. 12 s

Product type: Needle probe

Sensor type: Pt1000

Pick-up time (details): 1 s

Temperature reading range (min.): -70 °C

Temperature reading range (max.): 250 °C

Dim: (Ø x L) 1.5 mm x 170 mm

Probe length: 100 mm

: Manufacturer's standards (no certificate)

Weight: 0.039 kg

Temperature reading range: -70 up to 250 °C

Temperature accuracy: 0,15 °C

Length: 170 mm

(Ø): 1.5 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1720729 VOLTCRAFT TPT-205 Needle probe -70 up to 250 °C Sensor type Pt1000

Warranty Terms

Warranty Terms 1720729 VOLTCRAFT TPT-205 Needle probe -70 up to 250 °C Sensor type Pt1000

Description

This extra thin needle probe covers a large measuring range and and is thus ideal for various applications in research and industry to kitchen and household. With its slim sensor tube of 1.5mm is the sensor ideal for core temperature measurements of meat. Via the BNC connector is the sensor via the 1 m long cable connected to the measuring device. This is the highest flexibility is guaranteed. Accuracy class A guaranteed a special degree of precision.

This text is machine translated.
