VOLTCRAFT TPT-201 Immersion probe -70 up to 250 °C Sensor type Pt1000
EAN:
Part number:
Item no:
Number
Total (€ 57.13 / piece)
€
Only 6 Piece(s) available
Highlights & Details
VOLTCRAFT TPT-201 Immersion probe -70 up to 250 °C Sensor type Pt1000
- Sensor type Pt1000
- Light, handy grip with optimized ergonomics and flexible cable
- Water-tightness: can safely be submerged completely
- Short-term temperature resistance up to 250°C
Technical specifications
- Sensor: precision hand sensor, immersion probe, V4A tube
- Sensor: Pt1000 (2-wire)
- Accuracy: DIN Class AA

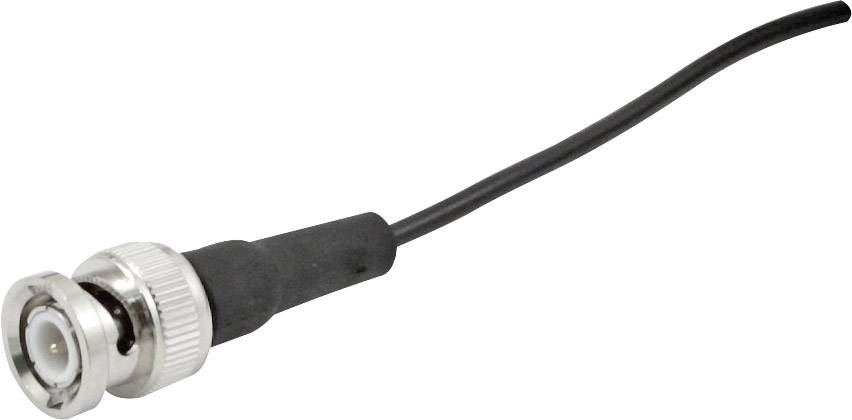

- Connection: BNC connector
- Measuring range: -70 ... +250 °C
- Probe handle: black silicone handle up to +250 °C
- Cable: 1 m silicone cable up to +230 °C continuous, +250 °C2H
- Response time T90: Water 0.4 m/s less than 2 s, air 2 m/s about 40 s
- Pick-up time (details)
2 s
- Dim
(Ø x L) 3 mm x 170 mm
- (Ø)
3 mm
- Length
170 mm
- Temperature reading range
-70 up to 250 °C
Manufacturer's standards (no certificate)
- Sensor type
Pt1000
- Temperature accuracy
0,1 °C
- Temperature reading range (max.)
250 °C
- Temperature reading range (min.)
-70 °C
- Probe length
100 mm
- Weight
0.039 kg
- Product type
Immersion probe
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1720725 VOLTCRAFT TPT-201 Immersion probe -70 up to 250 °C Sensor type Pt1000
Warranty Terms
Warranty Terms 1720725 VOLTCRAFT TPT-201 Immersion probe -70 up to 250 °C Sensor type Pt1000
Description
This robust immersion probe covers a large measuring range and and is thus ideal for various applications in research and industry to kitchen and household. Via the BNC connector is the sensor via the 1 m long cable connected to the measuring device. This is the highest flexibility is guaranteed. High Presidential sion is guaranteed thanks to accuracy class AA.
This text is machine translated.
This text is machine translated.
Features
- 3 mm insertion tip
- 1m highly flexible silicon cable.
- BNC connector
Scope of delivery
- Sensor
- User manual
