Buy VOLTCRAFT TP-205 Surface probe -100 up to 300 °C Sensor type K

Long metal rod with a yellow plug at one end, used for temperature measurement.

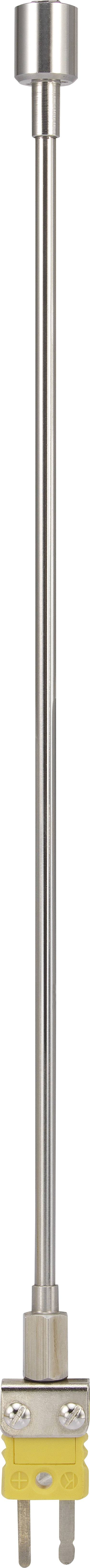

Long, slender metal rod with a yellow base and two visible screws on the underside.

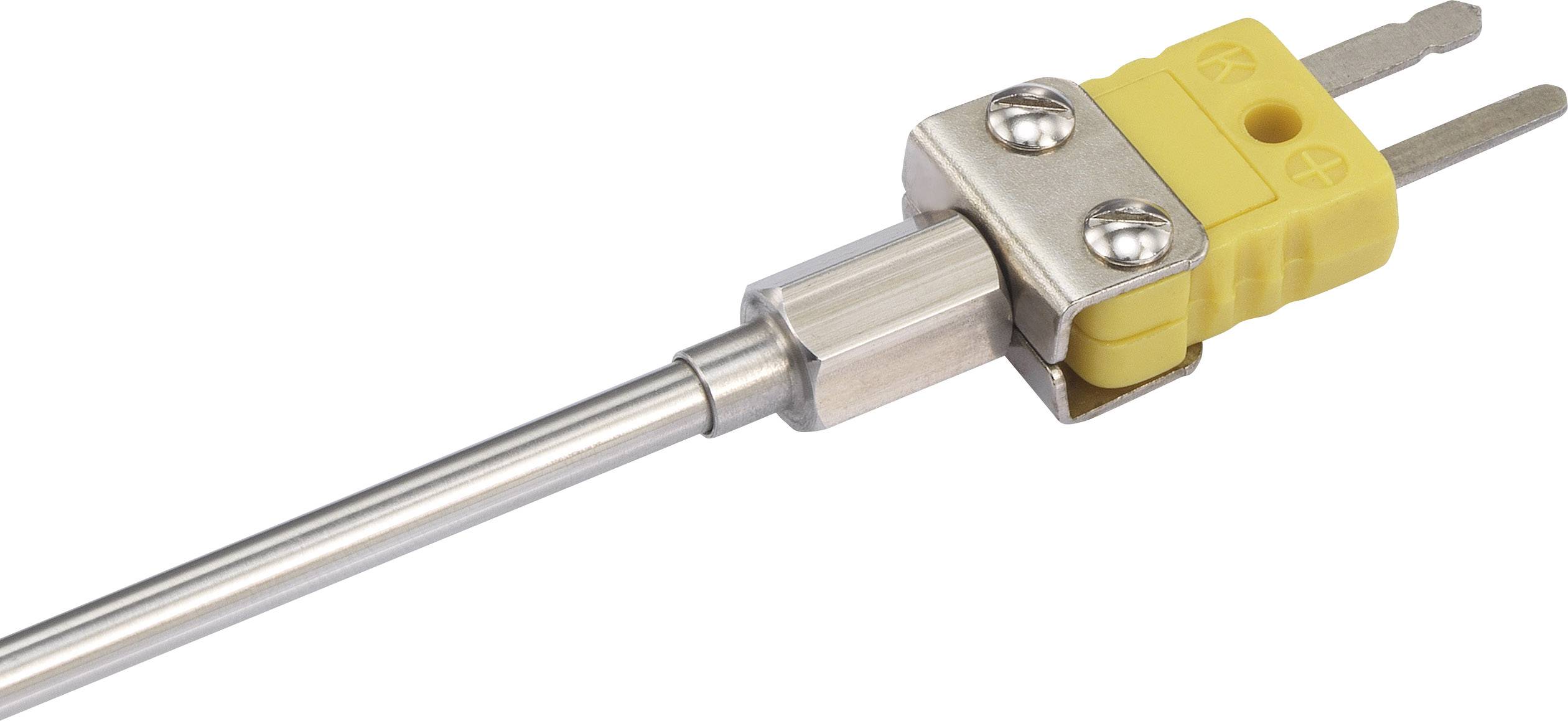

A thermocouple plug with a yellow head and two metal pins, suitable for temperature measurements in industrial applications.

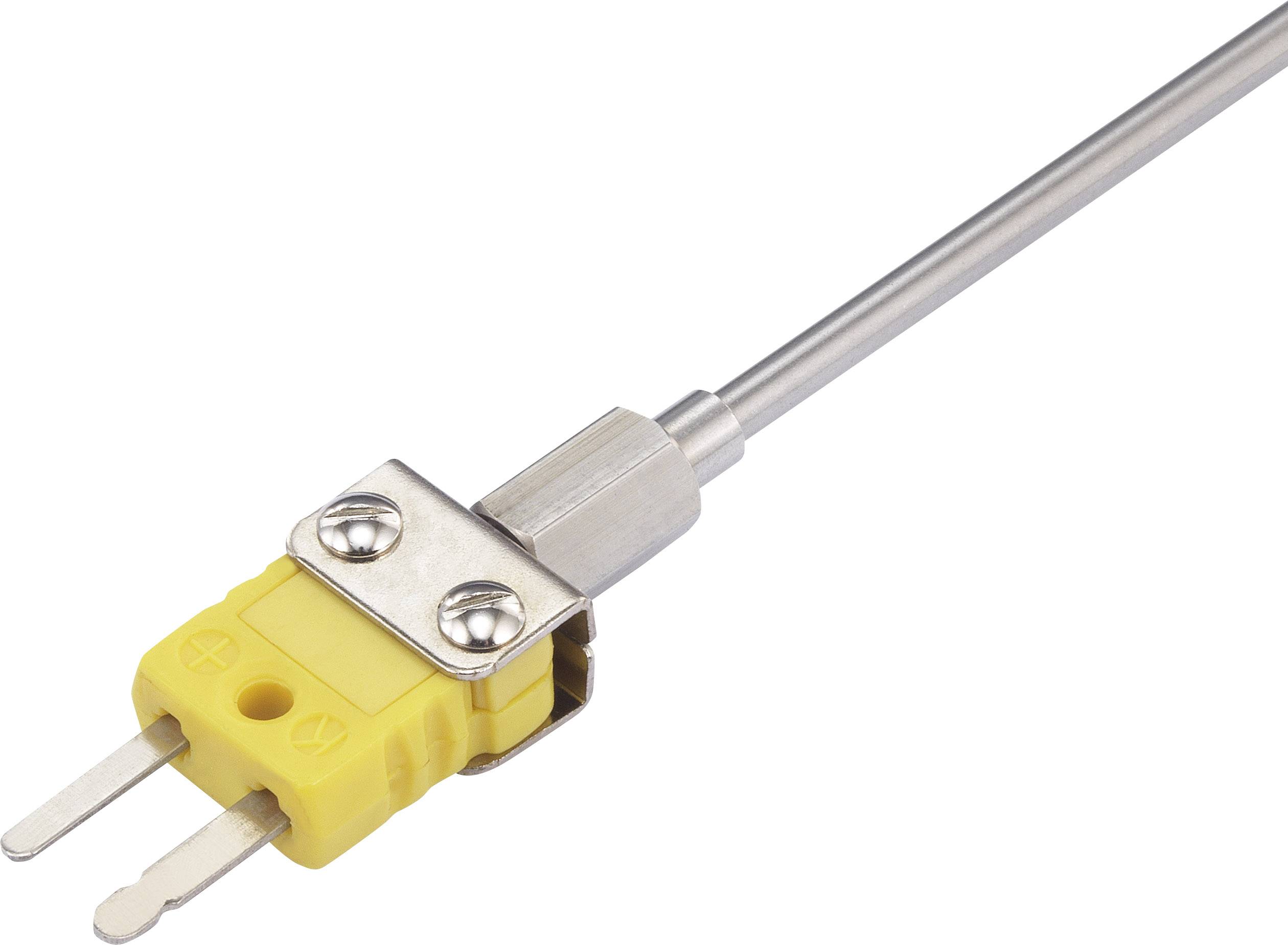

A yellow thermocouple plug with a metal probe, used for temperature measurement in scientific or industrial applications.

A mechanic is checking the engine of a car with a diagnostic device. The engine compartment is clearly visible, with the focus on diagnosis.

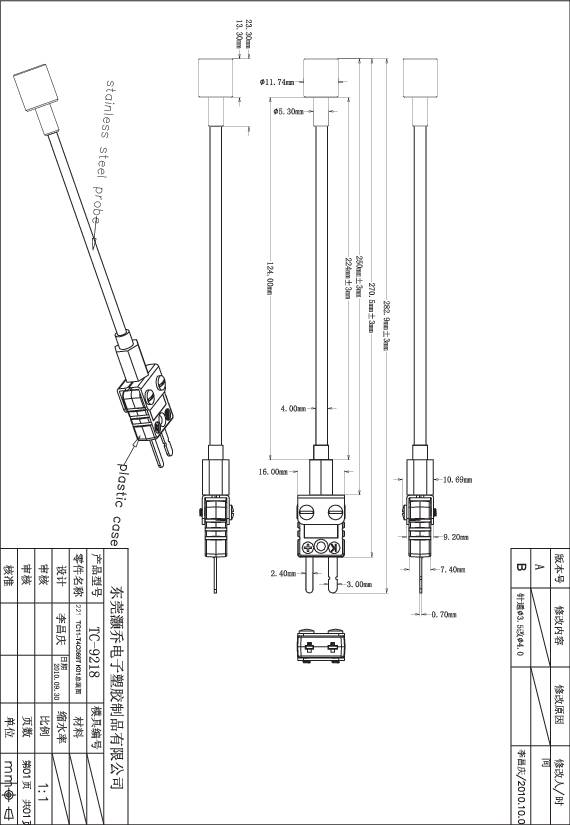

Technical drawing of a cable with plug connectors. Dimensions and technical specifications are provided.

1/6

Our service for you

Datasheet (PDF)

Fast track dispatch on Fri, 4 Sep

156 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 21.84 / piece)

€ 21.84

plus VAT.

Report legal concerns

Highlights & Details

Surface probe TP-205

Technical specifications

Product type: Surface probe

Sensor type: K

Temperature reading range (min.): -100 °C

Temperature reading range (max.): 300 °C

Dim: (Ø) 4 mm

Probe length: 265 mm

: Manufacturer's standards (no certificate)

Connector: Heating element connector

Weight: 0.03 kg

Temperature reading range: -100 up to 300 °C

Temperature accuracy: 2.5 °C

(Ø): 4 mm

Documents & Downloads

Datasheet

Datasheet 1661150 VOLTCRAFT TP-205 Surface probe -100 up to 300 °C Sensor type K

User & Safety Instructions

User & Safety Instructions 1661150 VOLTCRAFT TP-205 Surface probe -100 up to 300 °C Sensor type K

Warranty Terms

Warranty Terms 1661150 VOLTCRAFT TP-205 Surface probe -100 up to 300 °C Sensor type K

Description

The surface sensor (type K)TP-205 from VOLTCRAFT is particularly suitable for measuring the temperature of surfaces within the temperature range of-100 °C up300 °C. Thanks to the spring-loaded thermocouple band sensor, a measurement of non-plan surfaces is possible and guarantees a fast-response temperature determination. It fits perfectly for all applications in industry, construction, in the automotive sector, when welding, work or injection molding machines.

The VOLTCRAFTTP-205 is to all temperature measuring devices, data loggers, digital multimeter and current clamp with K-type connection for thermocouples compatible.

Features

Tolerance class for thermocouple sensor IEC584
Type K Class II.
This text is machine translated.

Hints

With the type K probe element of class II is a measurement up to +1200°C is possible. For safety reasons and for the protection during the measurement, but an application up to a maximum300 °C recommended!
