VOLTCRAFT TP-201 Air probe -100 up to 300 °C Sensor type K
EAN:
Part number:
Item no:
Show alternatives
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 20.16
3
5% = € 1.00
€ 19.16
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 20.16 / piece)
€
Highlights & Details
VOLTCRAFT TP-201 Air probe -100 up to 300 °C Sensor type K
Technical specifications
- Dim
(Ø) 3.5 mm
- (Ø)
3.5 mm
- Temperature reading range
-100 up to 300 °C
Manufacturer's standards (no certificate)
- Connector
Heating element connector
- Sensor type
K
- Temperature accuracy
2.5 °C
- Temperature reading range (max.)
300 °C
- Temperature reading range (min.)
-100 °C
- Probe length
218 mm
- Weight
0.03 kg
- Product type
Air probe
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1650575 VOLTCRAFT TP-201 Air probe -100 up to 300 °C Sensor type K
Warranty Terms
Warranty Terms 1650575 VOLTCRAFT TP-201 Air probe -100 up to 300 °C Sensor type K
Description

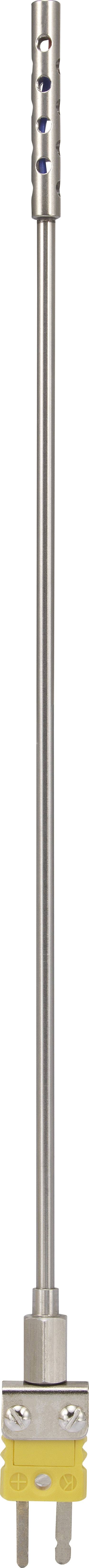

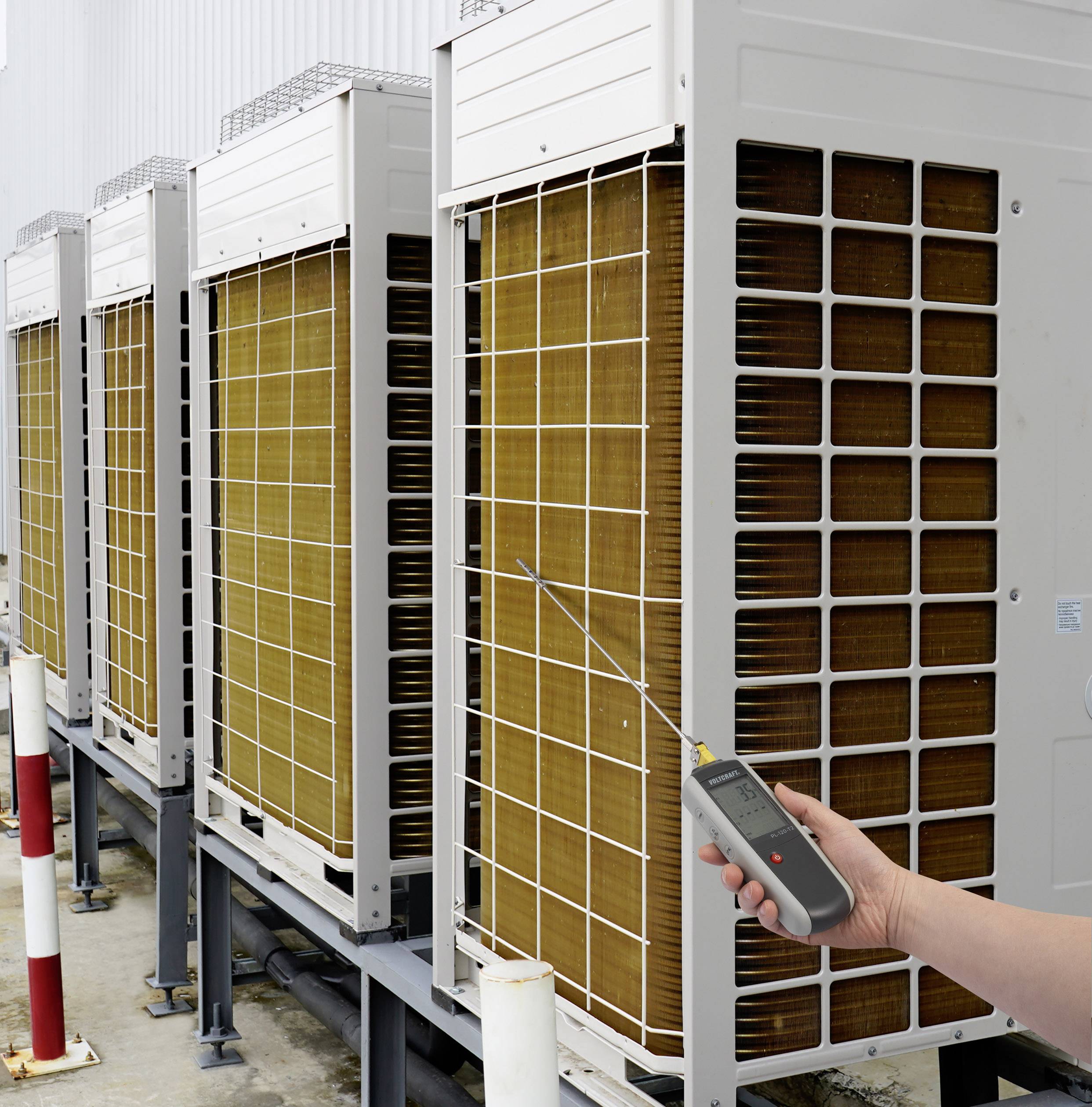

The air sensor (type K) TP-201 from Voltcraft is particularly well suited for the temperature measurement of air and gases. The sensor can be -100 °C300 °C used for a temperature range of up to, making it suitable for common applications such as air conditioning, cooling, heating and ventilation, etc.
Features
- Tolerance class for thermocouple sensor IEC584
- Type K Class II.
- This text is machine translated.
Hints
With the K-type sensor element of class II a measurement up to +1200°C is possible. For safety reasons and for your protection during the measurement, however, only one application up to maximum 300 °C is recommended!
