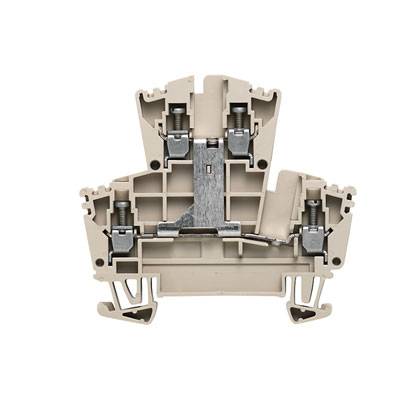

W-Series, Feed-through terminal, Double-tier terminal, Rated cross-section: Screw connection, Direct mounting
Packaging type
Piece
Product type
Serial continuity
Connection
Screws
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
W-Series, Feed-through terminal, Double-tier terminal, Rated cross-section: Screw connection, Direct mounting
Technical specifications
- Packaging type
Piece
- Product type
Serial continuity
- Features
with screw connection
- Connection
Screws
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
4 mm²
- No. of rows
2
- Factory colour
Dark beige
- Manufacturer part #
1022300000-100
- Content
100 pc(s)
- Industrial packaging
Yes
- Type
WDK 2.5V
- Dim
(L x W x H) 69.5 x 5.1 x 62.5 mm
- Width
5.1 mm
- Height
62.5 mm
- Length
69.5 mm
- RoHS-compliant
Yes
- Weight
13.16 g
- Connector colour
Dark beige
- Type
WDK 2.5V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 280965 W-Series, Feed-through terminal, Double-tier terminal, Rated cross-section: Screw connection, Direct mounting
User & Safety Instructions
User & Safety Instructions 280965 W-Series, Feed-through terminal, Double-tier terminal, Rated cross-section: Screw connection, Direct mounting
Description
The WDK two-tier modular terminals can feed two potentials in one terminal. The type of cross-connection for potential distribution, which is either a screw (WQV) or plug-in version (ZQV), represents another distinguishing feature.
What kind of Serial Terminals are you looking for?

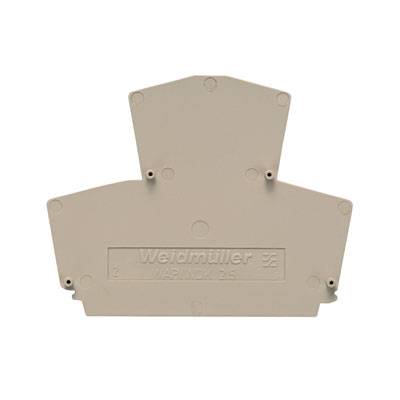

Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
